Installation
30
300554859_002_C0 - 11/2016 - © Leybold
Mechanical connection
Remove blind flange at forevacuum connection of the turbo pump.
Connect centering ring, clamping ring and connection line of forevacuum
pump at the forevacuum connector of the turbo pump.
3.5 High Vacuum Connection
Never touch the rotor ot the TURBOVAC. Touching the rotor may cause
injury and damage the rotor bearing.
The TURBOVAC must only be operated after it has been connected to a
vacuum chamber or piping or after it has been firmly blanked off with a
blank flange. If after the installation there remains the risk of accessing the
rotor, then an inlet screen must be fitted.
Do not start the TURBOVAC at atmospheric pressure.
Do not remove the transport covers on the pump until shortly before fitting,
to ensure that the TURBOVAC is fitted under the cleanest conditions.
CAUTION

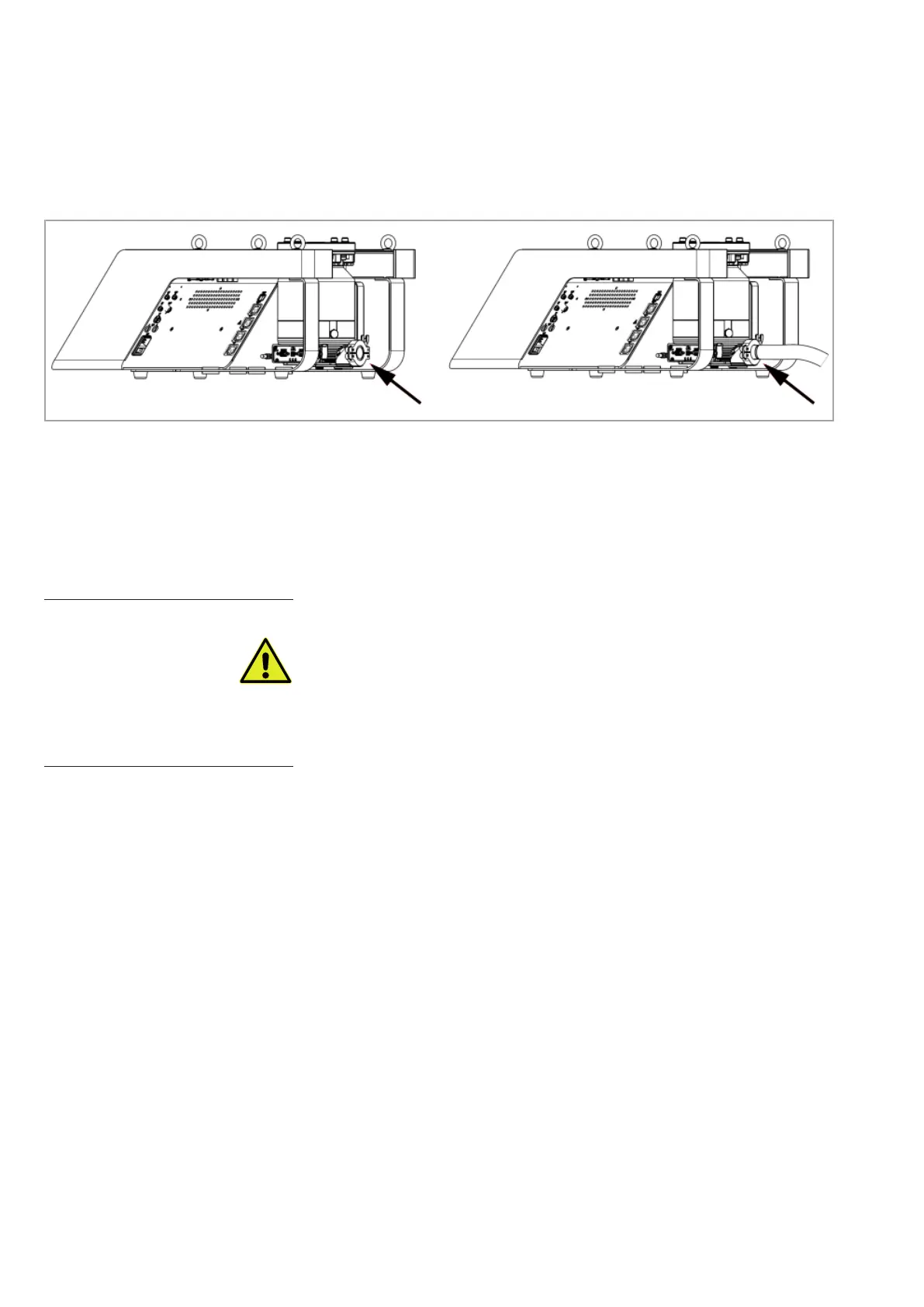

Fig. 3.5 Forevacuum connector
