Installation
29
300554859_002_C0 - 11/2016 - © Leybold
■
Please refer to the operating Instructions of the backing pump.

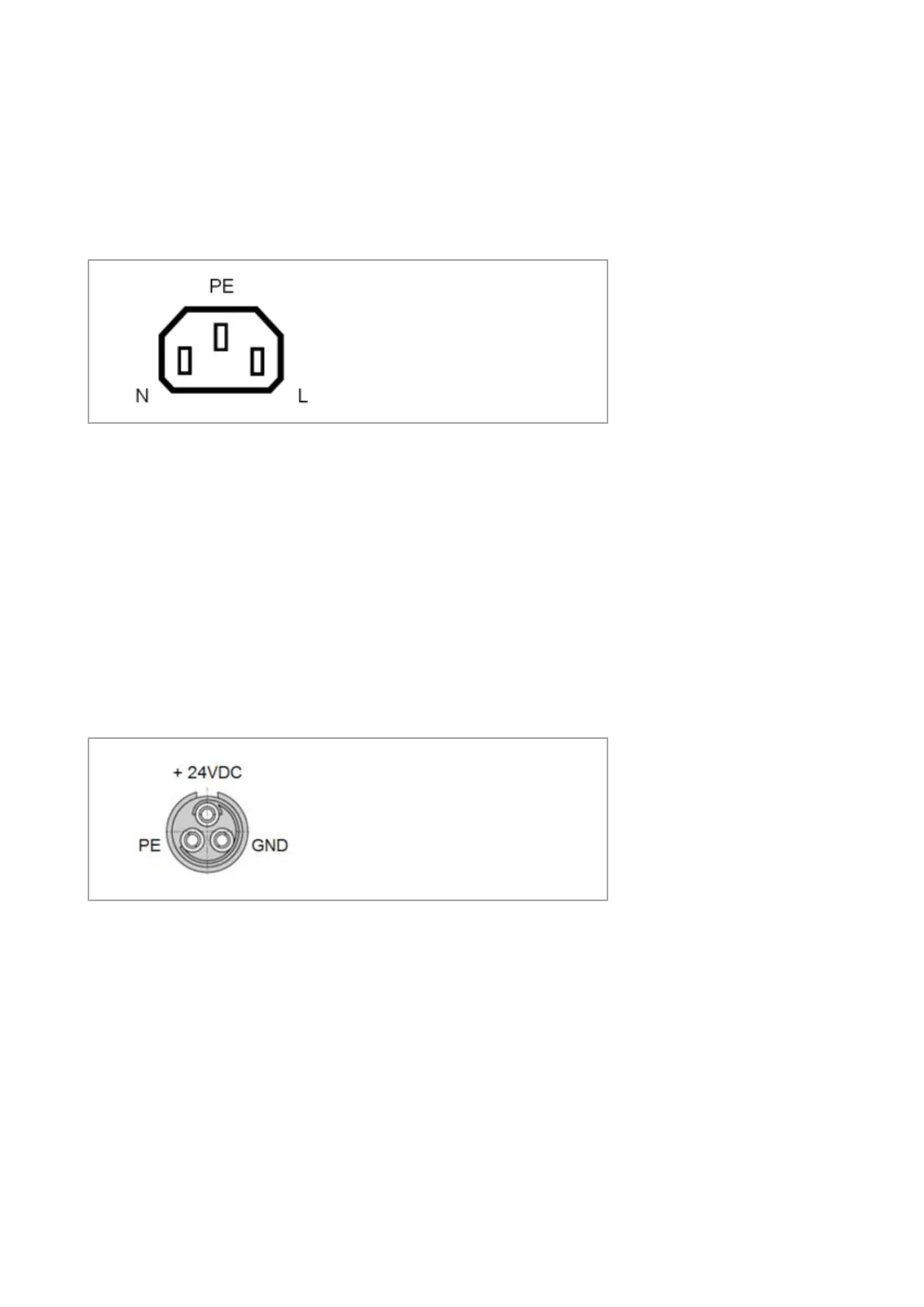

Fig. 3.3 Assignment X211 FV AC (view from outside)
Mating connector:
Cold-device connector (C14) 2+PE sw 10A
4732.0000 Schurter
Schuko coupling 2+PE sw 16A
Connecting backing pump with 24 V DC
Connection at output of TURBOLAB - X206 FV DC. See Figure 3.14 and
3.15.
■
The output X206 is protected with an 8 AT fuse (F4 - FV DC).
■
The required current for the backing pump may not exceed 6 A.
■
Check cable length and cross section of the connection line.
■
The laying of the connection line must comply with general safety regula-
tions.
■
Take note of the rotational direction of the backing pump.
■
Please refer to the operating Instructions of the backing pump.
Fig. 3.4 Assignment X206 FV DC (view from outside)
Mating connector:
Cable connector 0° 03pol. Sti MediSnap S1
S21M07-P03MPN9-657S ODU
Black nozzle: 701.023.208.965.070
