LG 42PB4D - Communication Parameters

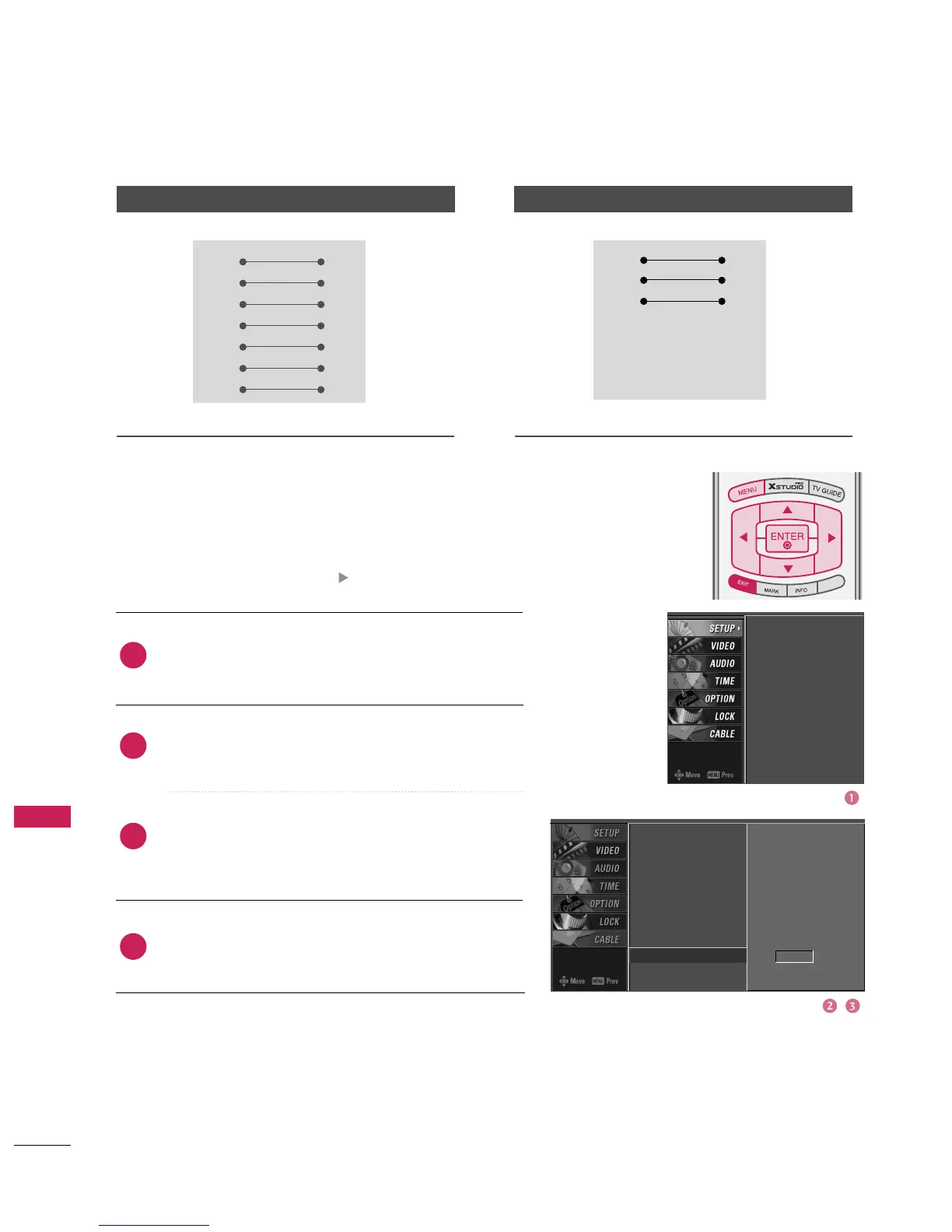

APPENDIX
144
APPENDIX
Press the
MENU
button and then use
D
or
E
button
to select the
SETUP
menu.
Press the
G
button and then use
D
or
E
button to
select
SET ID
.
Press the
G
button and then use
D
or
E
button to
adjust
SET ID
to choose the desired TV ID number.
The adjustment range of SET ID is 1~99.
Press
EXIT
button to return to TV viewing or press
MENU
button to return to the previous menu.
Use this function to specify a TV ID number.
Refer to ‘Real Data Mapping 1’.
p.147
Set ID
DAY -
DAY +
S
IMPL
IN
K
Communication Parameters
■
Baud rate : 9600 bps
(
UART
)
■
Data length : 8 bits
■
Parity : None
■
Stop bit : 1 bit
■
Communication code : ASCII code
■
Use a crossed (reverse) cable.
RS-232C Configurations
7-Wire Configurations
(
Standard RS-232C cable
)
PC PDP
RXD 2 3 TXD
TXD 3 2 RXD
GND 5 5 GND
DTR 4 6 DSR
DSR 6 4 DTR
RTS 7 8 CTS
CTS 8 7 RTS
D-Sub 9 D-Sub 9
3-Wire Configurations
(
Not standard
)
PC PDP
RXD 2 3 TXD
TXD 3 2 RXD
GND 5 5 GND
DTR 4 6 DTR
DSR 6 4 DSR
RTS 7 7 RTS
CTS 8 8 CTS
D-Sub 9 D-Sub 9
2
3
4
1
