EXTERNAL EQUIPMENT SETUP
25
DVD SETUP
Component Input ports
To get better picture quality, connect a DVD player to the component input ports as shown below.
Component ports on the TV
YPB PR
Video output ports
on DVD player
Y
Y
Y
Y
P
B
Pb
B-Y
Cb
PR
Pr
R-Y
Cr
Y L RPB PR
AUDIO

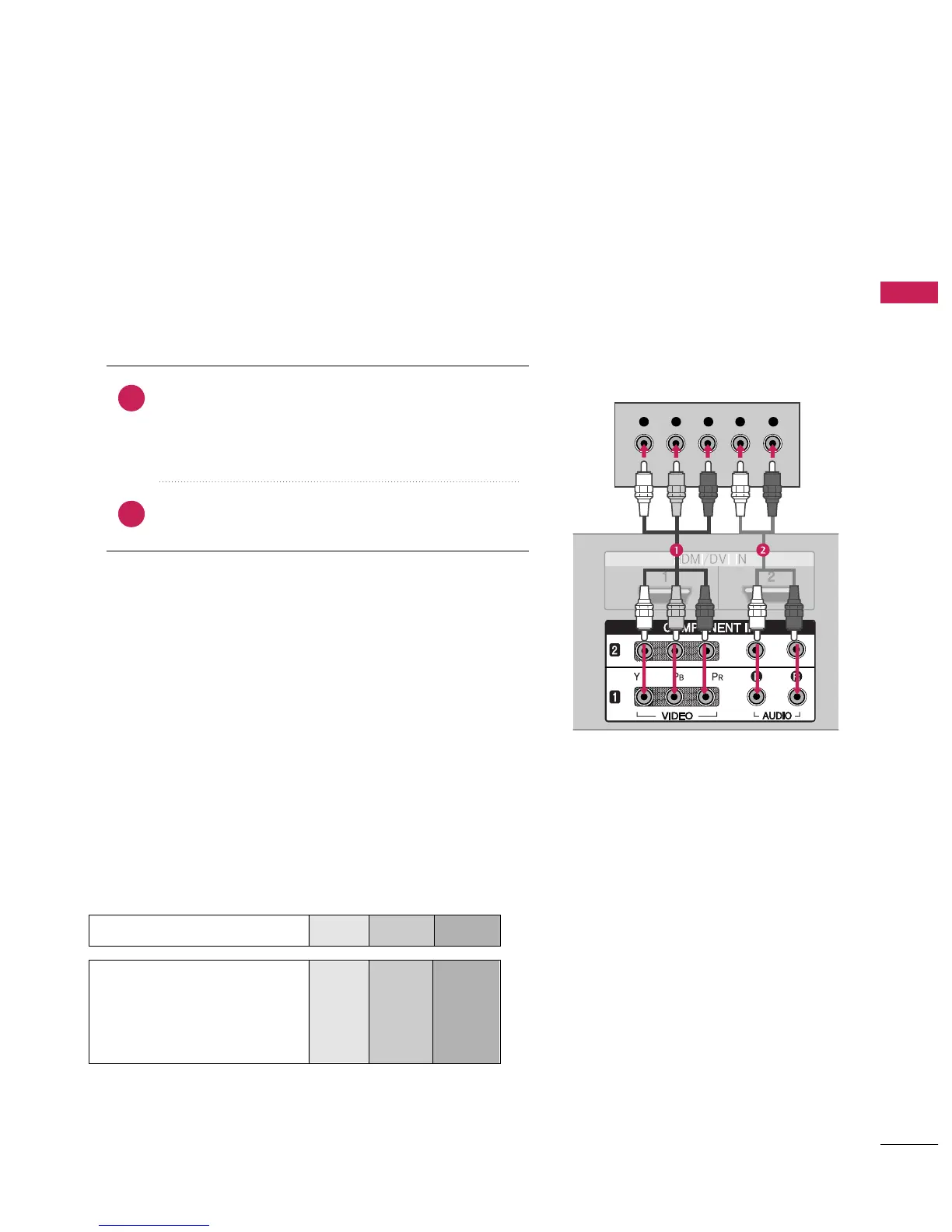

When connecting Component cable
Connect the video outputs
(
Y, PB, PR
)
of the DVD to
the
COMPONENT IN VIDEO1
jacks on the set.
Match the jack colors
(
Y = green, P
B = blue, and PR = red
)
.
Connect the audio outputs of the DVD to the
COMPONENT IN AUDIO1
jacks on the set.
1. How to connect
2. How to use
■
Turn on the DVD player, insert a DVD.
■
Select
COMPONENT 1
input source with using the
INPUT
button on the remote control.
■
If connected to
COMPONENT IN 2
input, select
COM-
PONENT 2
input source.
■
Refer to the DVD player's manual for operating instruc-
tions.
