EXTERNAL EQUIPMENT SETUP
26
EXTERNAL EQUIPMENT SETUP

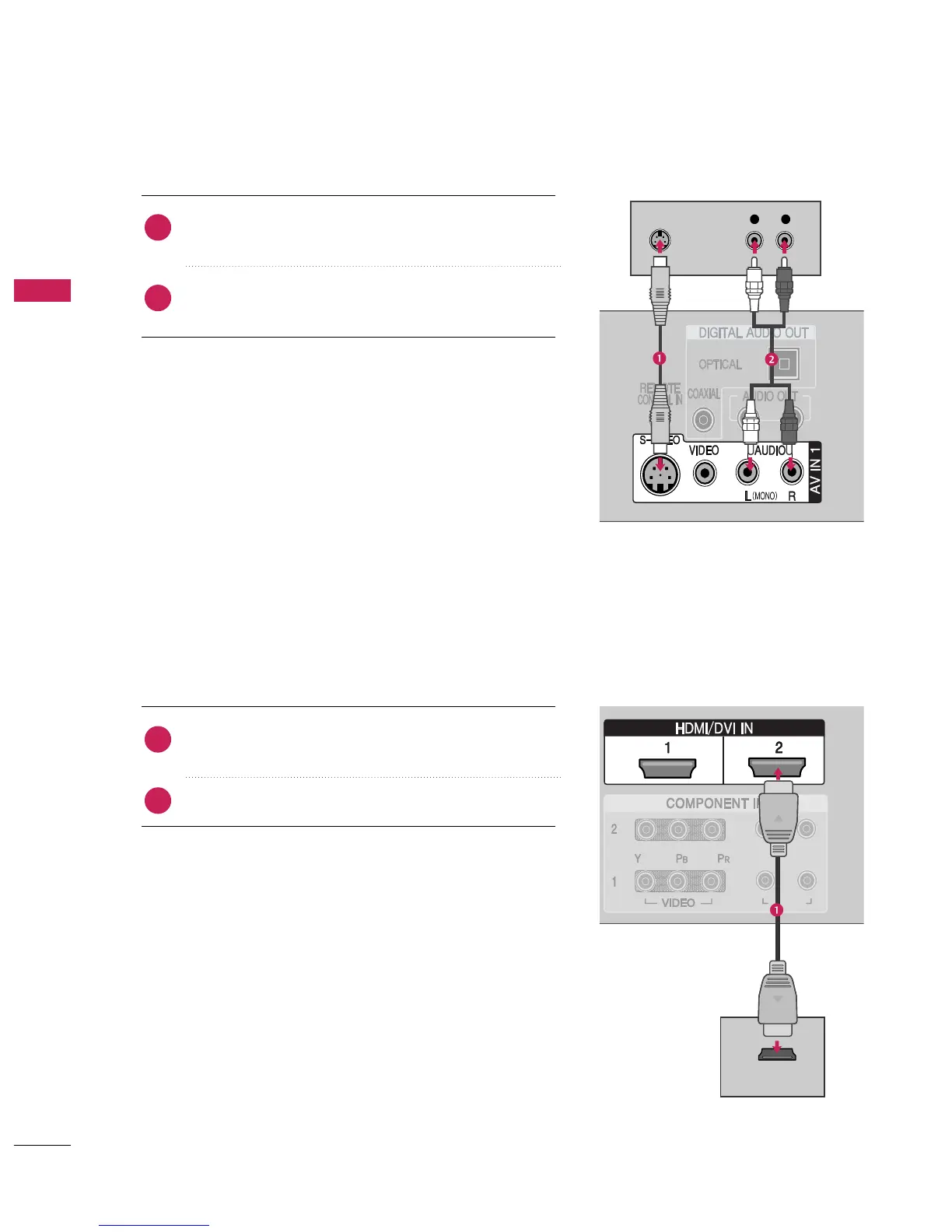

When connecting with an S-Video cable
AUDIOUDIO
L
R
HDMI-DVD OUTPUT
L R
S-VIDEO
AUDIO
AUDIO
Connect the S-VIDEO output of the DVD to the
S-VIDEO
input on the set.
Connect the audio outputs of the DVD to the
AUDIO
input jacks on the set.
1. How to connect
2. How to use
■
Turn on the DVD player, insert a DVD.
■
Select
AV1
input source with using the
INPUT
button on
the remote control.
■
If connected to
AV IN 2
, select
AV2
input source.
■
Refer to the DVD player's manual for operating instructions.
When connecting HDMI cable
Connect the HDMI output of the DVD to the
HDMI/DVI IN1
or
2
jack on the set.
No separated audio connection is necessary.
1. How to connect
2. How to use
■
Select
HDMI1/DVI
or
HDMI2
input source with using the
INPUT
button on the remote control.
■
Refer to the DVD player's manual for operating instruc-
tions.
2
1
2
1
