EXTERNAL EQUIPMENT SETUP
22
EXTERNAL EQUIPMENT SETUP
HD RECEIVER SETUP
This TV can receive Digital Over-the-air/Cable signals without an external digital set-top box. However, if you
do receive digital signals from a digital set-top box or other digital external device, refer to the figure as
shown below.
This TV supports HDCP
(
High-bandwidth Digital Contents Protection
)
protocol for Digital Contents.
Y L RPB PR
AUDIO

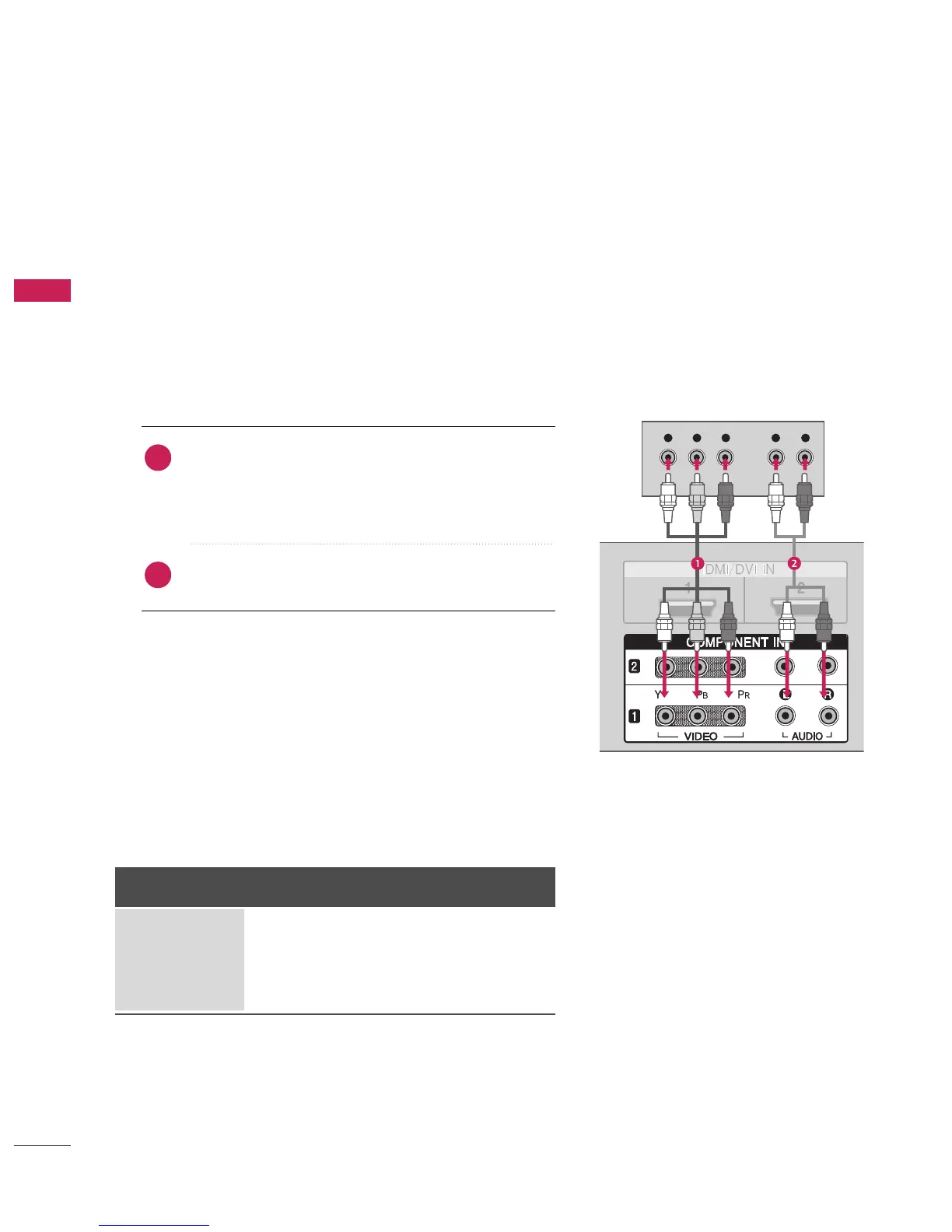

When connecting Component cable
1. How to connect
Connect the video outputs
(
Y, PB, PR
)
of the digital set
top box to the
COMPONENT IN VIDEO 1
jacks on
the set. Match the jack colors
(Y = green, P
B = blue, and PR = red).
Connect the audio output of the digital set-top box to
the
COMPONENT IN AUDIO 1
jacks on the set.
2. How to use
■
Turn on the digital set-top box.
(
Refer to the owner’s manual for the digital set-top box.
)
■
Select
COMPONENT 1
input source with using the
INPUT
button on the remote control.
■
If connected to
COMPONENT IN 2
input, select
COMPO-
NENT 2
input source.
Signal
480i
480p
720p
108 0 i
Component 1/2
Yes
Yes
Yes
Yes
RGB-DTV,
HDMI1/DVI, HDMI2
No
Yes
Yes
Yes
2
1
