EXTERNAL EQUIPMENT SETUP
23

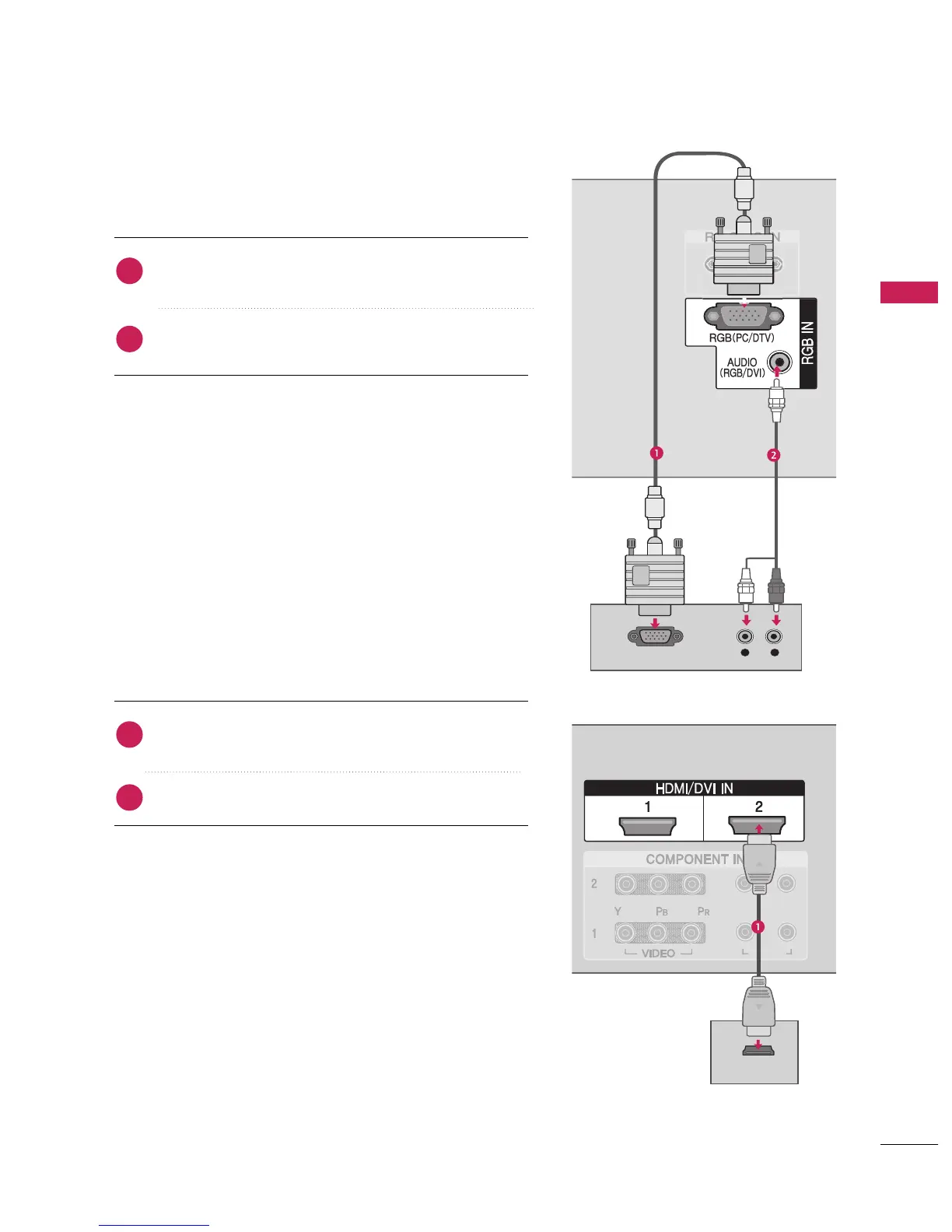

When connecting D-sub 15pin cable
L R
RGB OUTPUT
HDMI-DTV OUTPUT
AUDIOAUDIO
L
R
Connect the RGB output of the digital set-top box to
the
RGB
(
PC/DTV
)
jack on the set.
Connect the audio outputs of the set-top box to the
AUDIO
(
RGB/DVI
)
jack on the set.
1. How to connect
2. How to use
■
Turn on the digital set-top box.
(
Refer to the owner’s manual for the digital set-top box.
)
■
Select
RGB-DTV
input source with using the
INPUT
button
on the remote control.
When connecting HDMI cable
Connect the digital set-top box to
HDMI/DVI IN 1
or
2
jack on the set.
No separated audio connection is necessary.
1. How to connect
2. How to use
■
Turn on the digital set-top box.
(
Refer to the owner’s manual for the digital set-top box.
)
■
Select
HDMI1/DVI
or
HDMI2
input source with using the
INPUT
button on the remote control.
2
1
2
1
