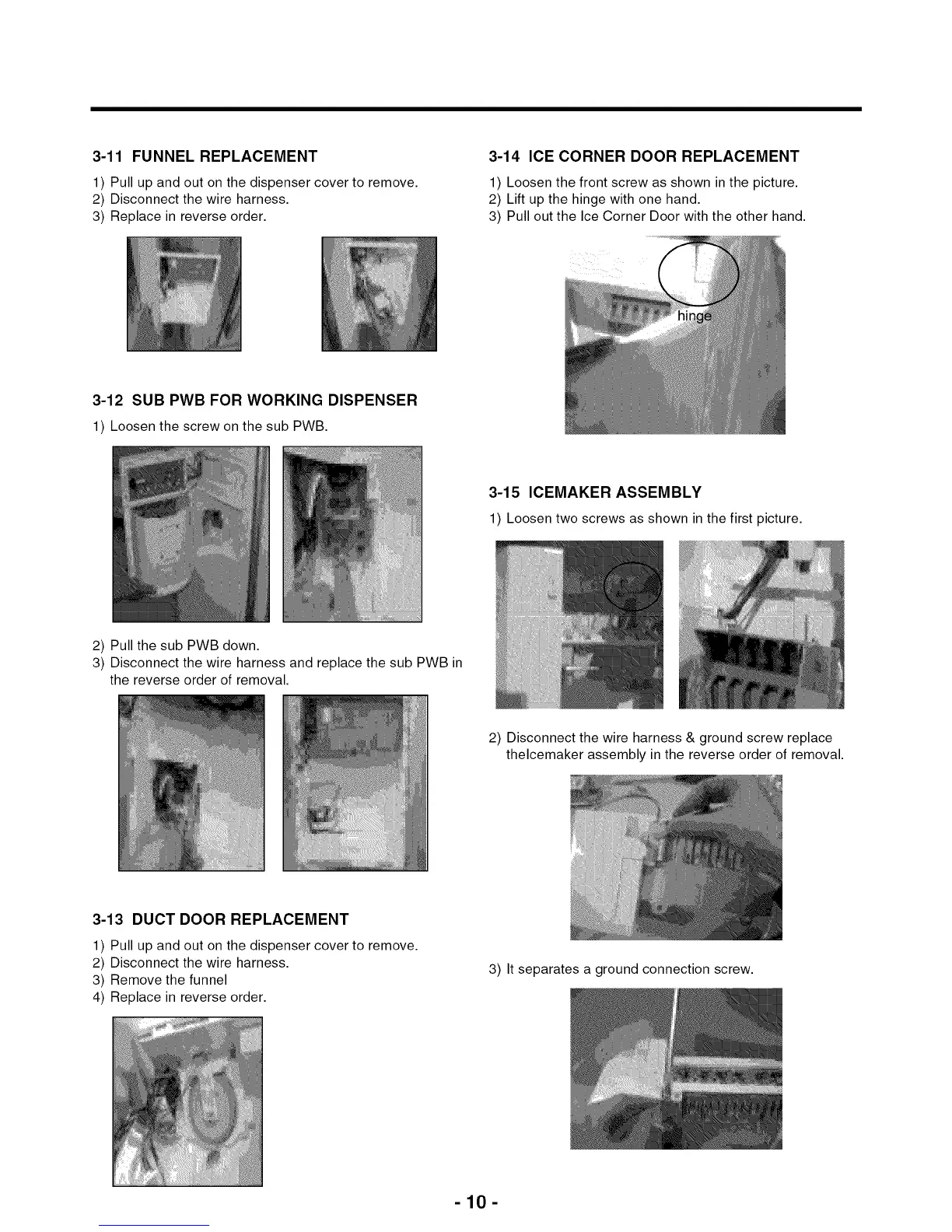

3-11 FUNNEL REPLACEMENT
1) Pull up and out on the dispenser cover to remove.
2) Disconnect the wire harness.
3) Replace in reverse order.
3-14 ICE CORNER DOOR REPLACEMENT
1) Loosen the front screw as shown in the picture.
2) Lift up the hinge with one hand.
3) Pull out the Ice Corner Door with the other hand.
3-12 SUB PWB FOR WORKING DISPENSER
1) Loosen the screw on the sub PWB.
3-15 ICEMAKER ASSEMBLY
1) Loosen two screws as shown in the first picture.
2) Pull the sub PWB down.
3) Disconnect the wire harness and replace the sub PWB in
the reverse order of removal.
2) Disconnect the wire harness & ground screw replace
thelcemaker assembly in the reverse order of removal.
3-13 DUCT DOOR REPLACEMENT
1) Pull up and out on the dispenser cover to remove.
2) Disconnect the wire harness.
3) Remove the funnel
4) Replace in reverse order.
3) It separates a ground connection screw.
-10-
