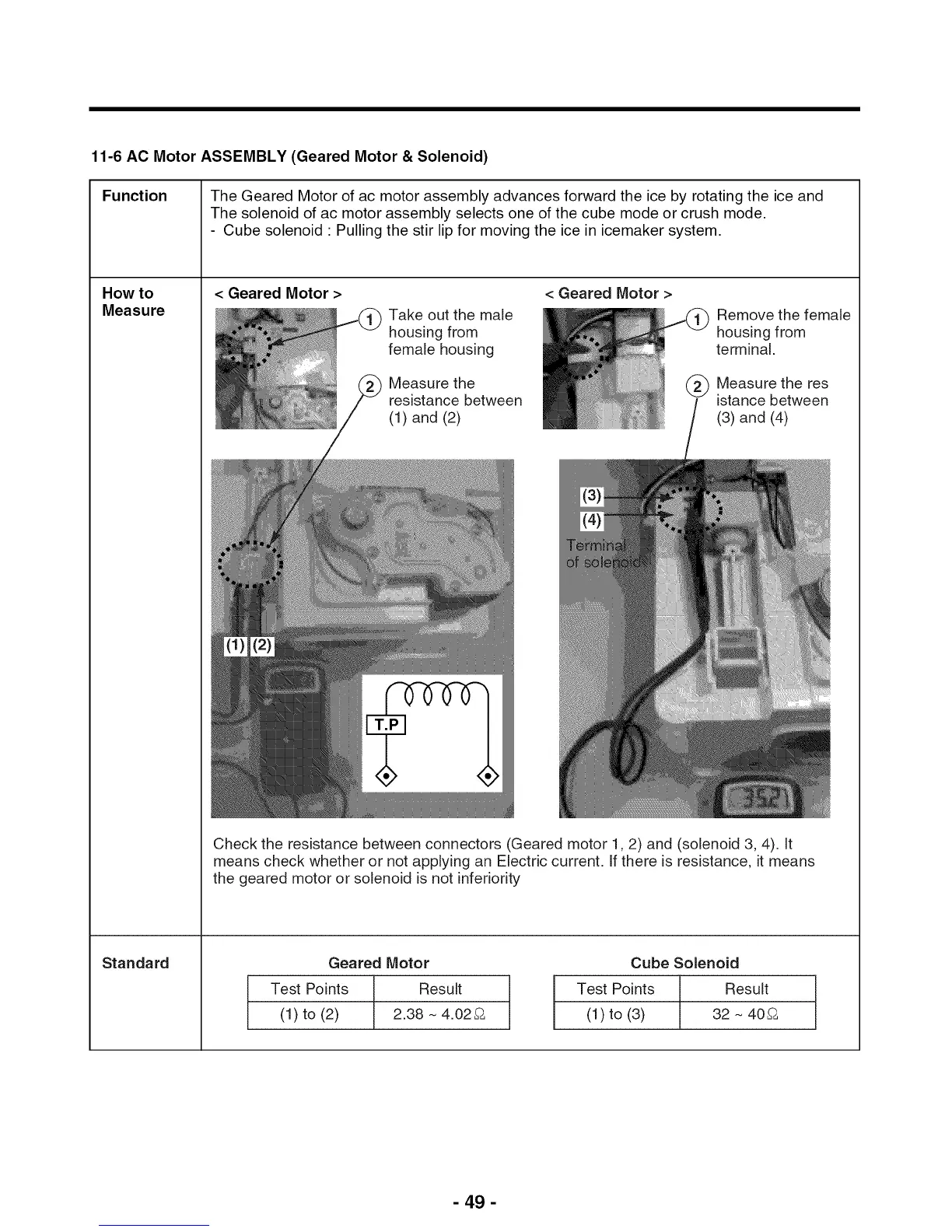

11-6 AC Motor ASSEMBLY (Geared Motor & Solenoid)
Function
How to
Measure
Standard
The Geared Motor of ac motor assembly advances forward the ice by rotating the ice and
The solenoid of ac motor assembly selects one of the cube mode or crush mode.
- Cube solenoid • Pulling the stir lip for moving the ice in icemaker system.
< Geared Motor >
Take out the male
housing from
female housing
Measure the
resistance between
(1) and (2)
< Geared Motor >
Remove the female
housing from
terminal.
) Measure the res
istance between
(3) and (4)
Check the resistance between connectors (Geared motor 1,2) and (solenoid 3, 4). It
means check whether or not applying an Electric current. If there is resistance, it means
the geared motor or solenoid is not inferiority
Geared Motor
Test Points Result
(1) to (2) 2.38 ~ 4.02&&
Cube Solenoid
Test Points Result
(1) to (3) 32 ~ 40S&
- 49 -
