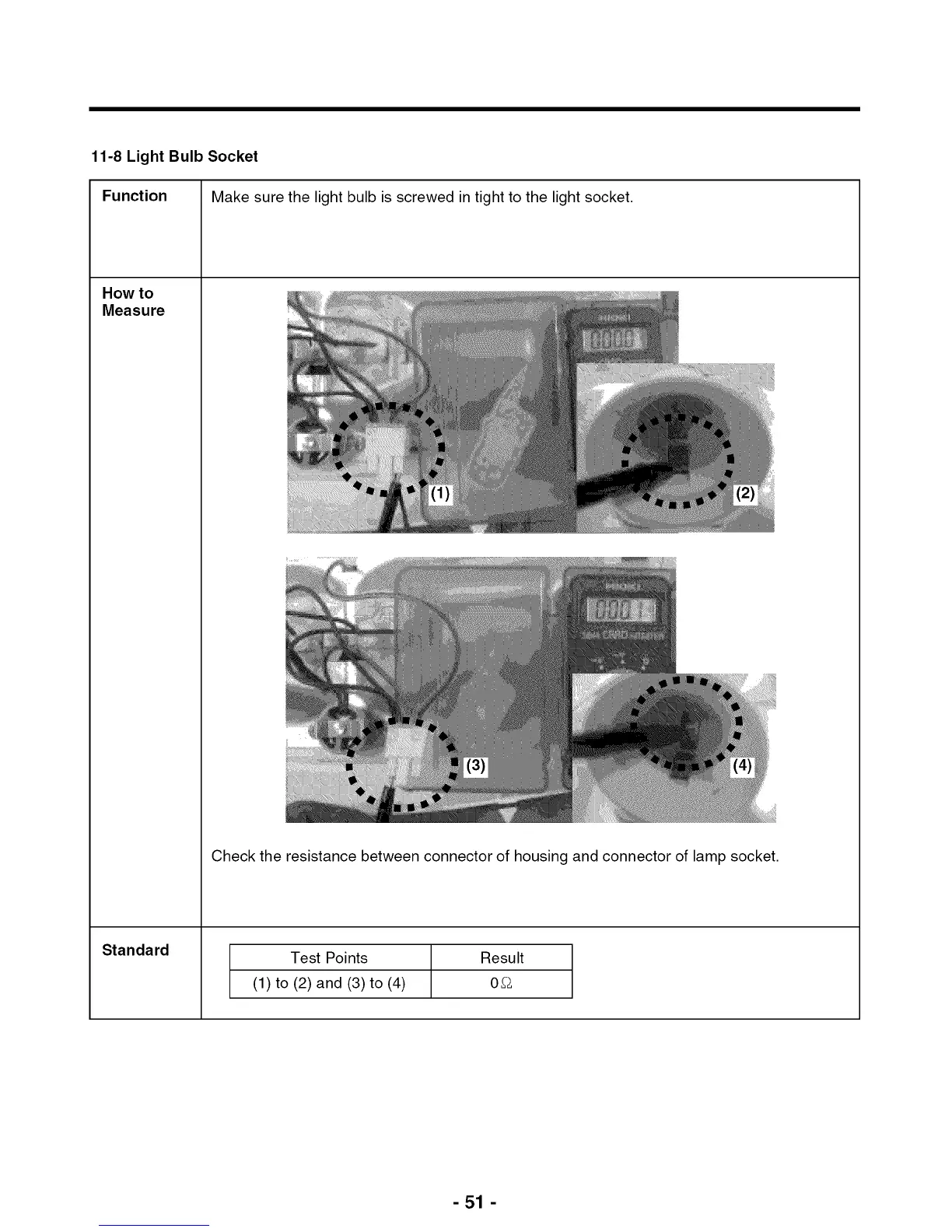

11-8
Light
Bulb
Socket
Function
How
to
Measure
Standard
Make
sure
the
light
bulb
is
screwed
in
tight
to
the
light
socket.
Check
the
resistance
between
connector
of
housing
and
connector
of
lamp
socket.
Test
Points
Result
(1)
to
(2)
and
(3)
to
(4)
O_
-
51
-
50
52
