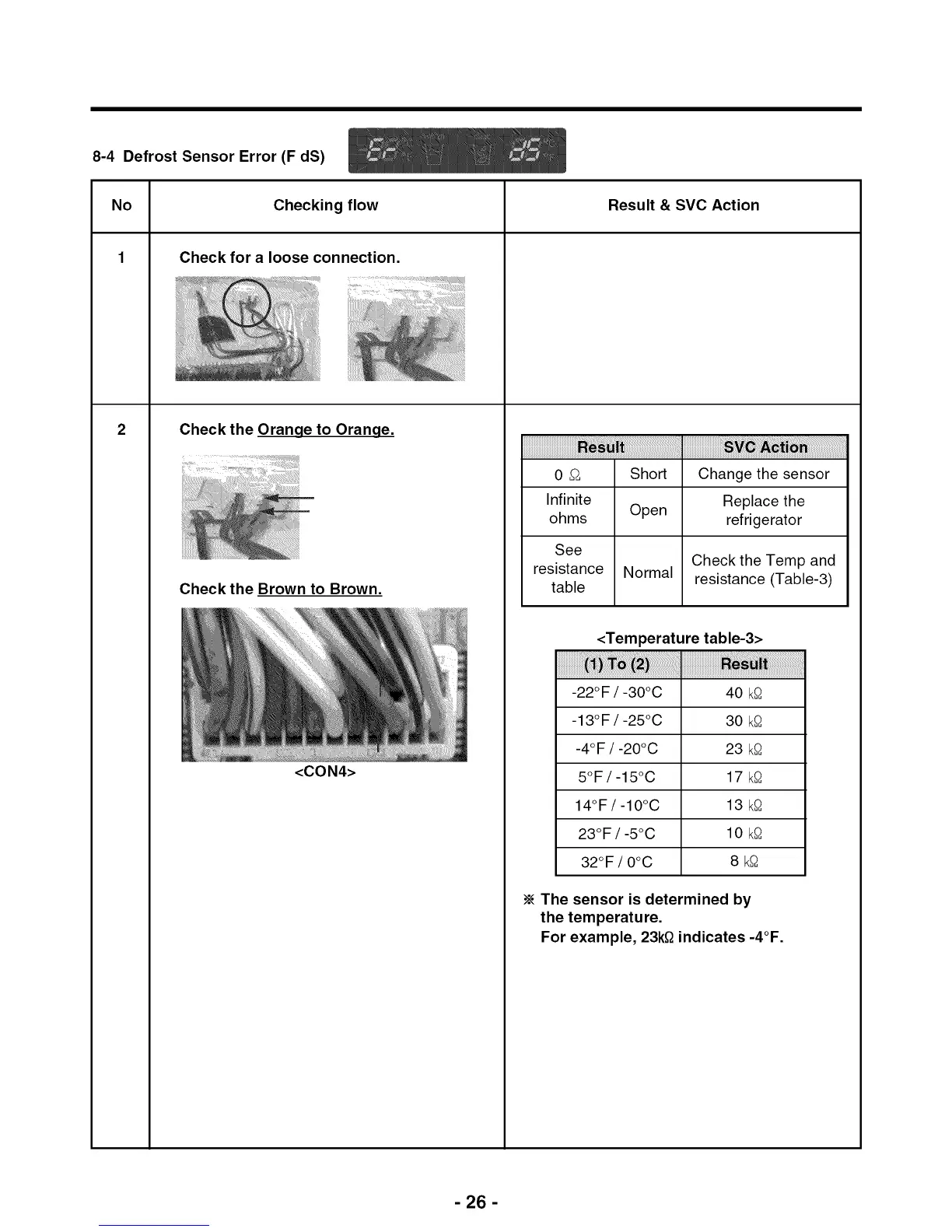

8-4 Defrost Sensor Error (F dS)
No Checking flow Result & SVC Action
1 Check for a loose connection.
2
Check the Orange to Orange.
Check the Brown to Brown.
<CON4>
iiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiii i i ! ! l i i i i i i i i i i i i i i i i i i i i i i i i i i i i i i i i i i i i i i i i i i i i i i iiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiii i ;! ! ! ! ! i i ii i i ! i! i! i! i! i! i! i! i! i! i! i! i! i! i! i! i! i! i! i! i! i! i! i! i! i! !i !i !i !i !ii i
0 _ Short Change the sensor
Infinite Replace the
ohms Open refrigerator
See
Check the Temp and
resistance Normal resistance (Table-3)
table
<Temperature table-3>
-22°F / -30°C 40 k_
-13°F / -25°C 30 k_
-4°F / -20°C 23 k_
5°F/-15°C 17 k_
14°F/-10°C 13 k_
23°F / -5°C 10 k_
32OF/ OoC 8 k_
The sensor is determined by
the temperature.
For example, 23k£ indicates -4°F.
- 26 -
