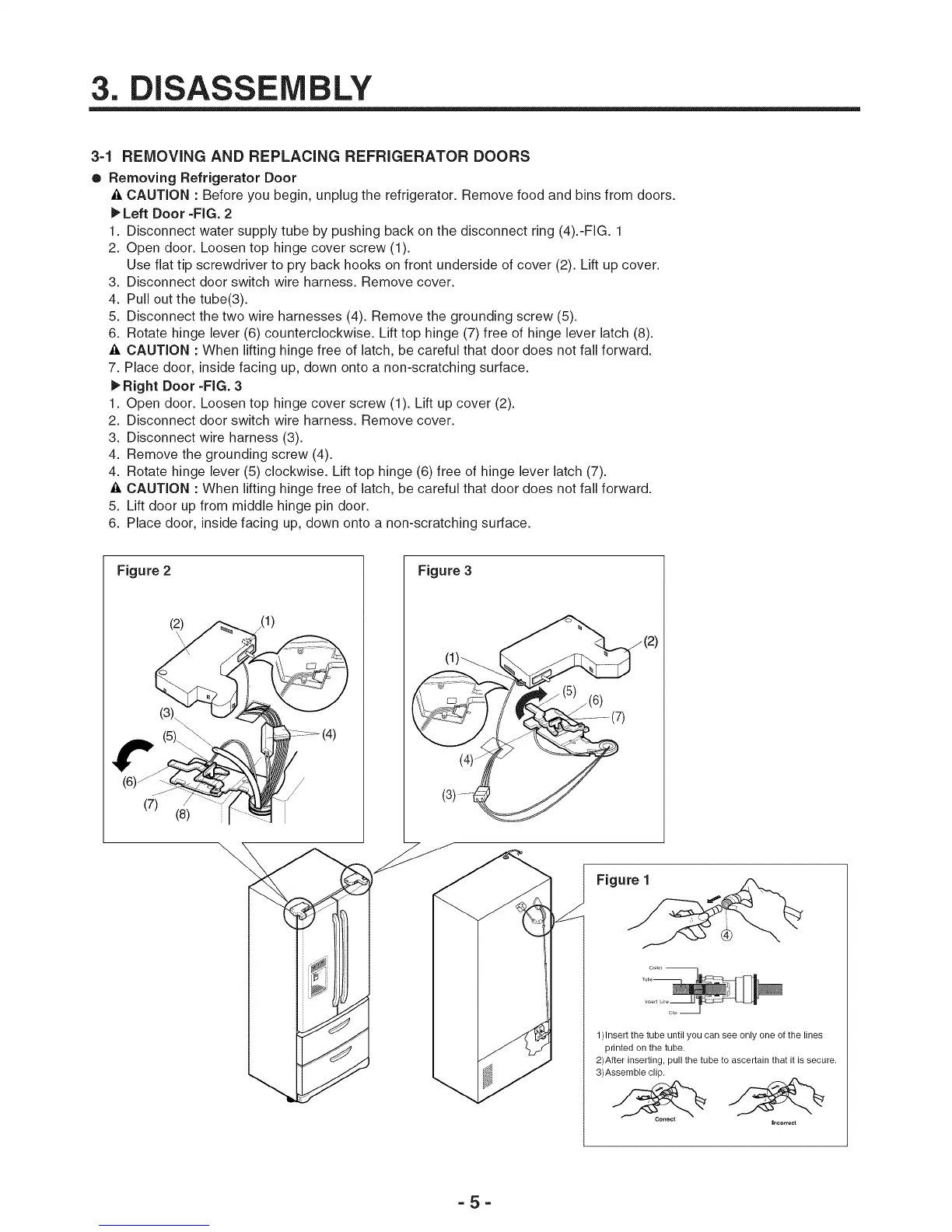

3. DISASSEMBLY
3=1 REMOVING AND REPLACING REFRIGERATOR DOORS
• Removing Refrigerator Door
-& CAUTION : Before you begin, unplug the refrigerator. Remove food and bins from doors.
1_Left Door -FIG. 2
1. Disconnect water supply tube by pushing back on the disconnect ring (4).-FIG. 1
2. Open door. Loosen top hinge cover screw (1).
Use flat tip screwdriver to pry back hooks on front underside of cover (2). Lift up cover.
3. Disconnect door switch wire harness. Remove cover.
4. Pull out the tube(3).
5. Disconnect the two wire harnesses (4). Remove the grounding screw (5).
6. Rotate hinge lever (6) counterclockwise. Lift top hinge (7) free of hinge lever latch (8).
_, CAUTION : When lifting hinge free of latch, be careful that door does not fall forward.
7. Place door, inside facing up, down onto a non-scratching surface.
Right Door -FIG. 3
1. Open door. Loosen top hinge cover screw (1). Lift up cover (2).
2. Disconnect door switch wire harness. Remove cover.
3. Disconnect wire harness (3).
4. Remove the grounding screw (4).
4. Rotate hinge lever (5) clockwise. Lift top hinge (6) free of hinge lever latch (7).
_, CAUTION : When lifting hinge free of latch, be careful that door does not fall forward.
5. Lift door up from middle hinge pin door.
6. Place door, inside facing up, down onto a non-scratching surface.
Figure 2
(2)
(3).
J
(7) /
(8)
Figure 3
_(1)
/
/
(1)_
(3)_-4_
(2)
Figure 1
1)Insert the tube until you can see only one of the lines
printed on the tube.
2)After inserting, pull the tube to ascertain that it is secure.
3)Assemble clip.
Incorr_ct
-5-
