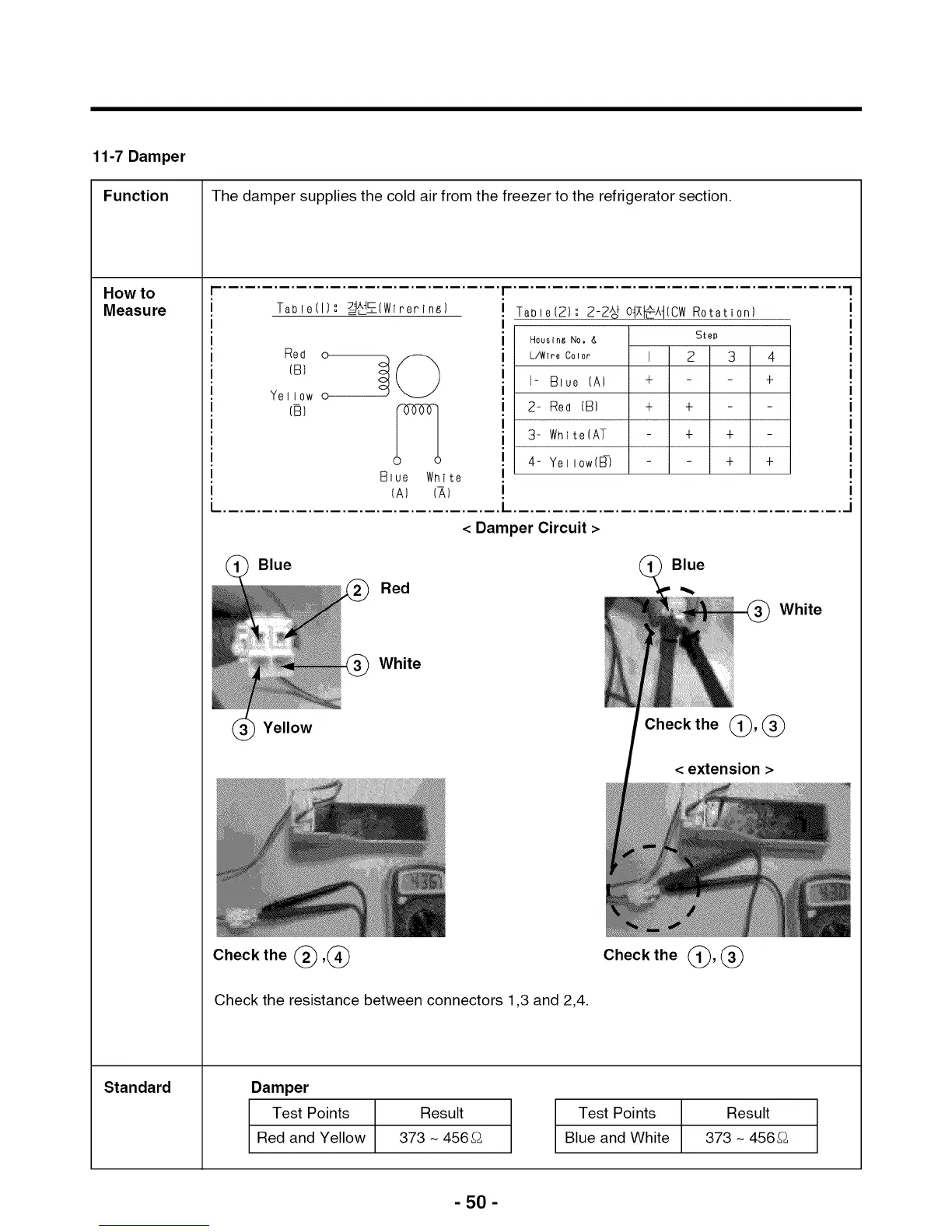

11-7 Damper
Function
How to
Measure
Standard
The damper supplies the cold air from the freezer to the refrigerator section.
F ................................. r ....................................... 1
i
I
I
I
I
I
I
I
i
I
I
I
_A4E W
Table(I)-" 2L_-- r'er'ing)
Red o
I
I
I
I
i
I
I
I
I
I
I
Table(2): 2-2{ _0]XF_£](CWRotation}
Housln_ No. & Step
L/Wire Color I 2 3 4
t- Blue (A) + +
2- Red (B} + +
3- White(AT + +
4- Yellow(E_) - + +
i
I
I
I
I
I
I
I
i
I
I
I
L ................................. L ....................................... i
< Damper Circuit >
Blue
Yellow
Red
White
Blue
White
Check the @, @
< extension >
Check the @ ,@
Check the resistance between connectors 1,3 and 2,4.
Check the @, @
Damper
Test Points Result
Red and Yellow 373 ~ 456_
Test Points Result
Blue and White 373 ~ 456_
- 50 -
