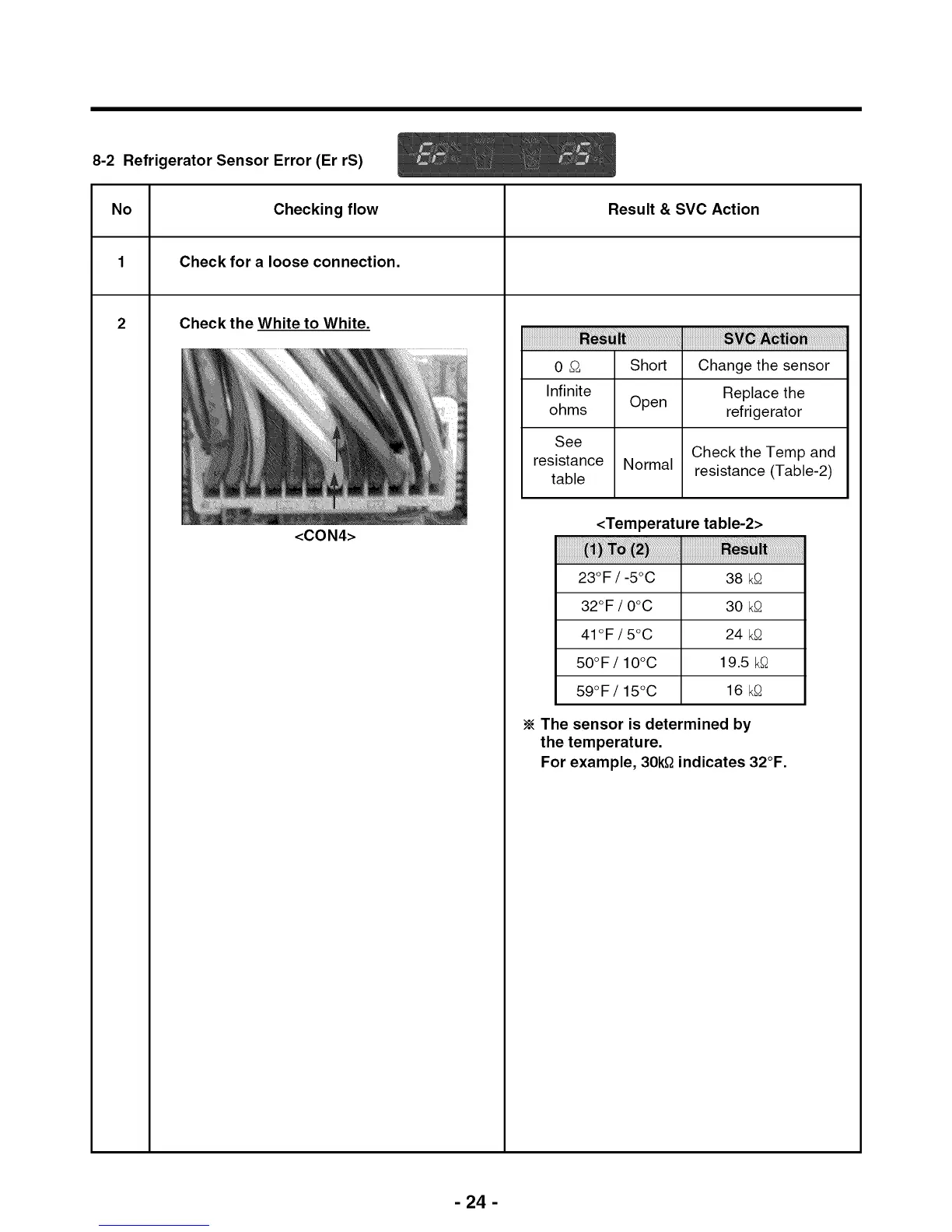

8-2 Refrigerator Sensor Error (Er rS)
No Checking flow Result & SVC Action
1 Check for a loose connection.
2 Check the White to White.
<CON4>
0 _ Short Change the sensor
Infinite Replace the
ohms Open refrigerator
See
Check the Temp and
resistance Normal resistance (Table-2)
table
<Temperature table-2>
23°F / -5°C 38 k_
32°F / O°C 30 k_
41°F / 5°C 24 k_
50°F/10°C 19.5 k_
59°F/15°C 16 k_
The sensor is determined by
the temperature.
For example, 30k£ indicates 32°F.
- 24 -
