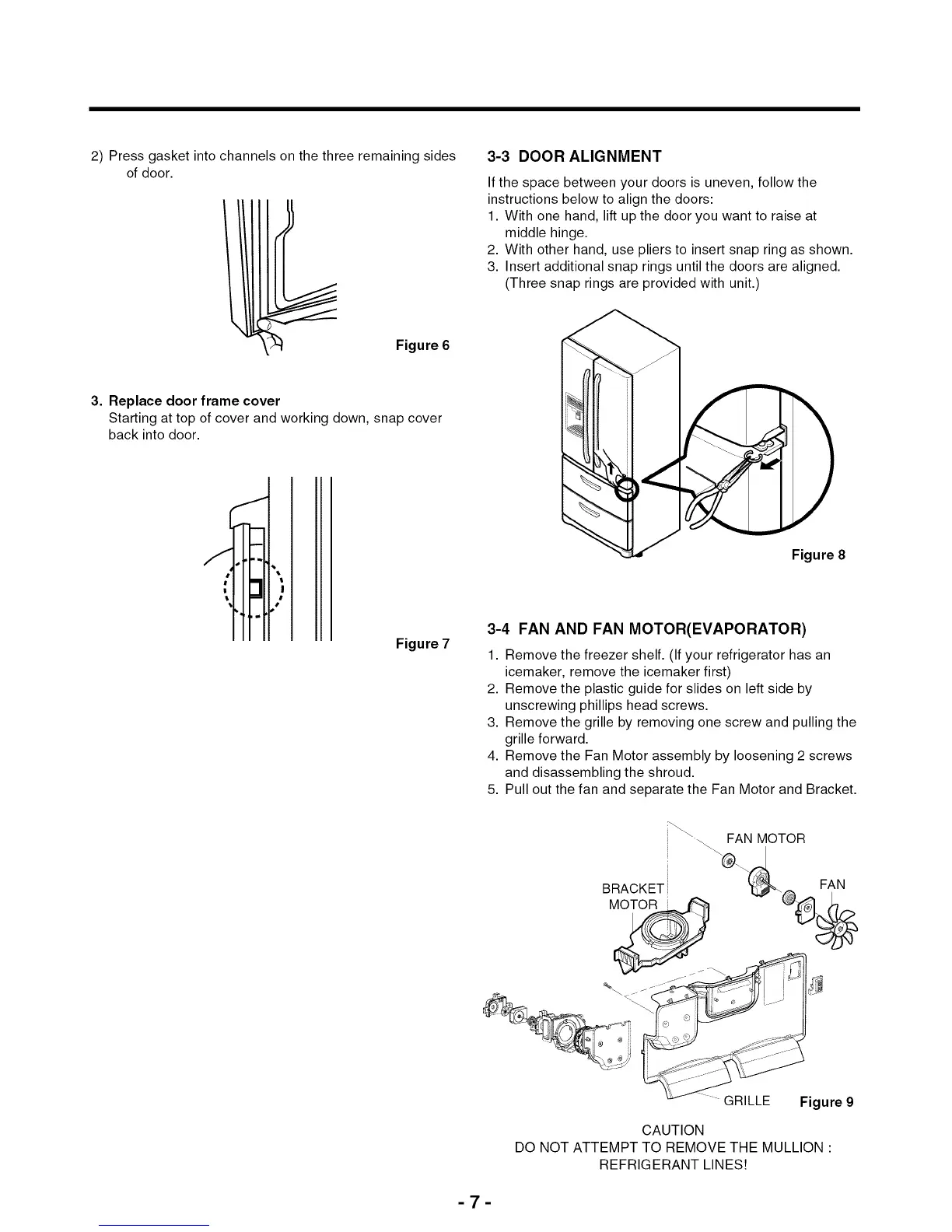

2) Press gasket into channels on the three remaining sides
of door.
Figure 6
3. Replace door frame cover
Starting at top of cover and working down, snap cover
back into door.
t,,f,_,
!
ttFtt:
Figure 7
3-3 DOOR ALIGNMENT
If the space between your doors is uneven, follow the
instructions below to align the doors:
1. With one hand, lift up the door you want to raise at
middle hinge.
2. With other hand, use pliers to insert snap ring as shown.
3. Insert additional snap rings until the doors are aligned.
(Three snap rings are provided with unit.)
Figure 8
3-4 FAN AND FAN MOTOR(EVAPORATOR)
1. Remove the freezer shelf. (If your refrigerator has an
icemaker, remove the icemaker first)
2. Remove the plastic guide for slides on left side by
unscrewing phillips head screws.
3. Remove the grille by removing one screw and pulling the
grille forward.
4. Remove the Fan Motor assembly by loosening 2 screws
and disassembling the shroud.
5. Pull out the fan and separate the Fan Motor and Bracket.
_ FAN MOTOR
BRACKET
%\
GRILLE Figure 9
CAUTION
DO NOT ATTEMPT TO REMOVE THE MULLION •
REFRIGERANT LINES!
-7-
