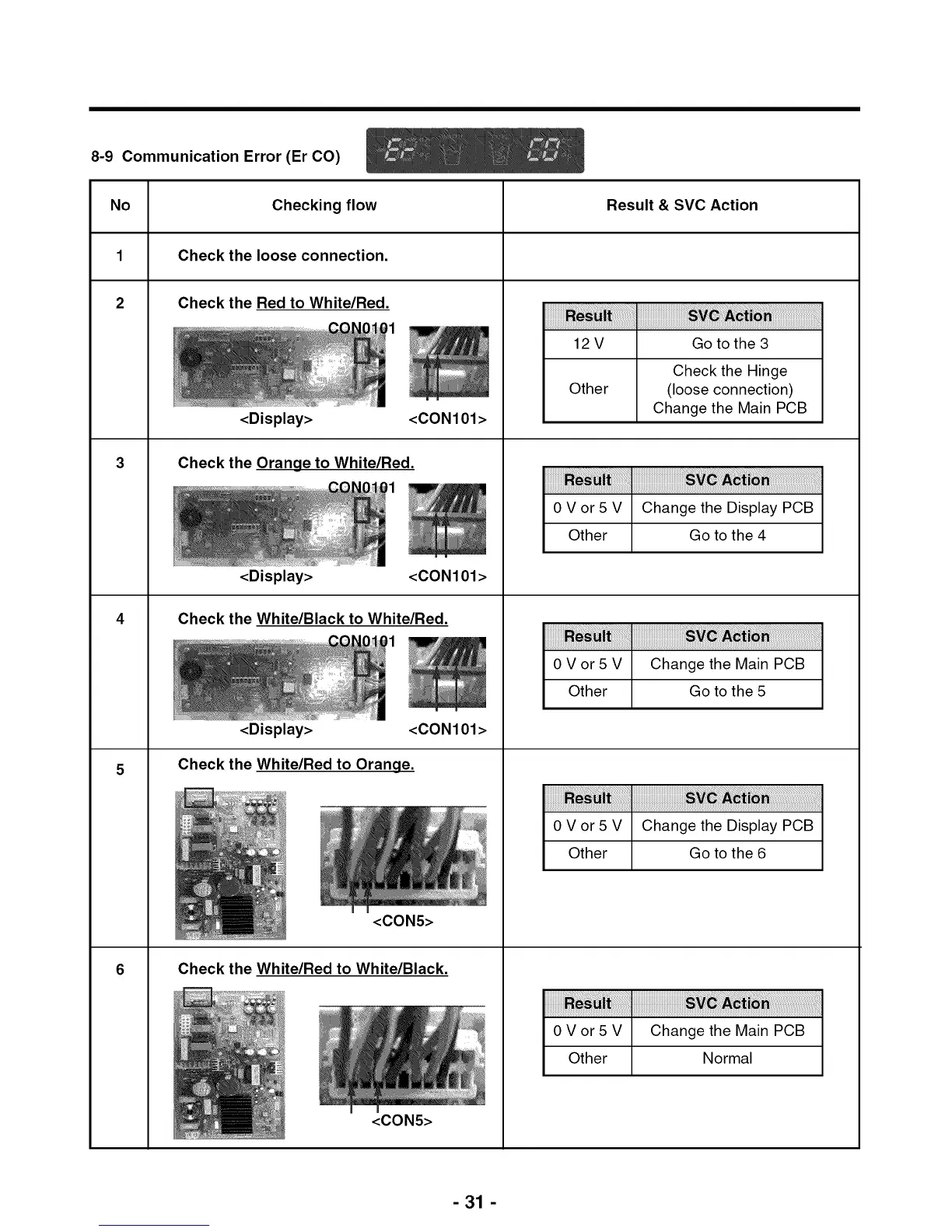

8-9 Communication Error (Er CO)
No Checking flow Result & SVC Action
1 Check the loose connection.
2
3
4
5
6
Check the Red to White/Red.
1
<Display> <CON101>
Check the Orange to White/Red.
1
<Display> <CON101>
Check the White/Black to White/Red.
1
<Display>
<C0N101>
Check the White/Red to Orange.
<CON5>
Check the White/Red to White/Black.
<CON5>
12 V Go to the 3
Check the Hinge
Other (loose connection)
Change the Main PCB
iiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiii_i'_,_i_i_i'ii_i!_i!_i!_i!_i!_i!_i!_i!_i!_i!_i!_i!_i!_ii_!i_!_iiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiii_i_i_ii'ii_!i_!_i_ii_i_i_i_iii__i,_i_'ii'ii'ii'ii'ii'ii'ii'ii'ii'ii'ii'ii'ii'ii'ii'ii'ii'ii'ii'ii'ii'ii'ii'ii'ii'ii'ii'ii'ii'ii'ii'ii'ii'ii'ii'ii'ii'ii'ii,i!_i!_!
0 V or 5 V Change the Display PCB
Other Go to the 4
0 V or 5 V Change the Main PCB
Other Go to the 5
0 V or 5 V Change the Display PCB
Other Go to the 6
!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i_!i!_!_ii_!i!!i!!i!!i!!i!!i!!i!!i!!i!!i!!i!!i!!i!!i!!_!!i`i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!ii_ii_i_!_!!_!_!!_!_!i_j_!_i_!_!_!_!_!_!_!_!_!_!_!_!_!_!_!_!_!_!_!_!_!_!_!_!_!_!_!_!_!_!_!_!_!_!_!_!_!_!_!_!_!_!!_i_
0 V or 5 V Change the Main PCB
Other Normal
- 31 -
To Next Page
