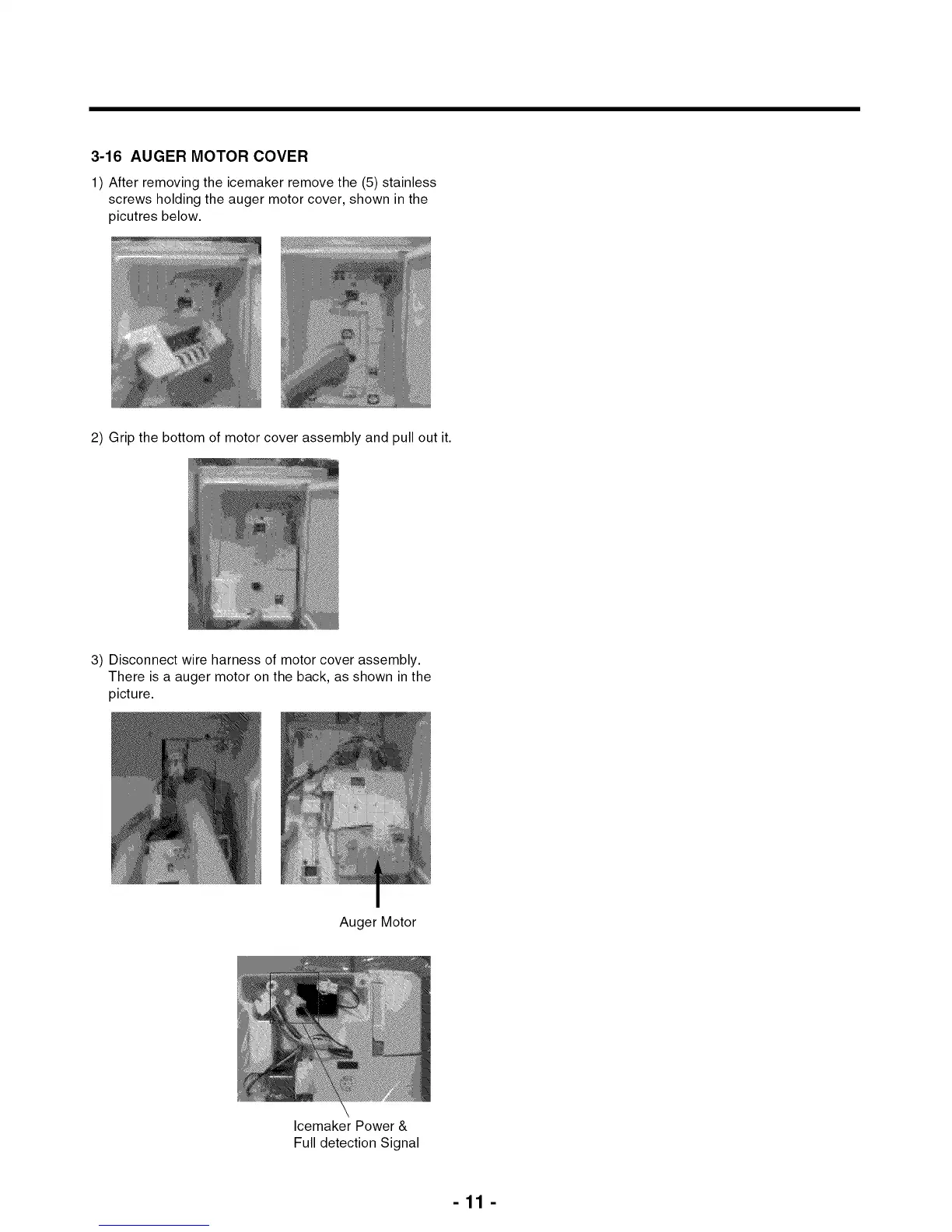

3-16
AUGER
MOTOR
COVER
1)
After
removing
the
icemaker
remove
the
(5)
stainless
screws
holding
the
auger
motor
cover,
shown
in
the
picutres
below.
2)
Grip
the
bottom
of
motor
cover
assembly
and
pull
out
it.
3)
Disconnect
wire
harness
of
motor
cover
assembly.
There
is
a
auger
motor
on
the
back,
as
shown
in
the
picture.
Auger
Motor
Icemaker
Power
&
Full
detection
Signal
-11
-
10
12
