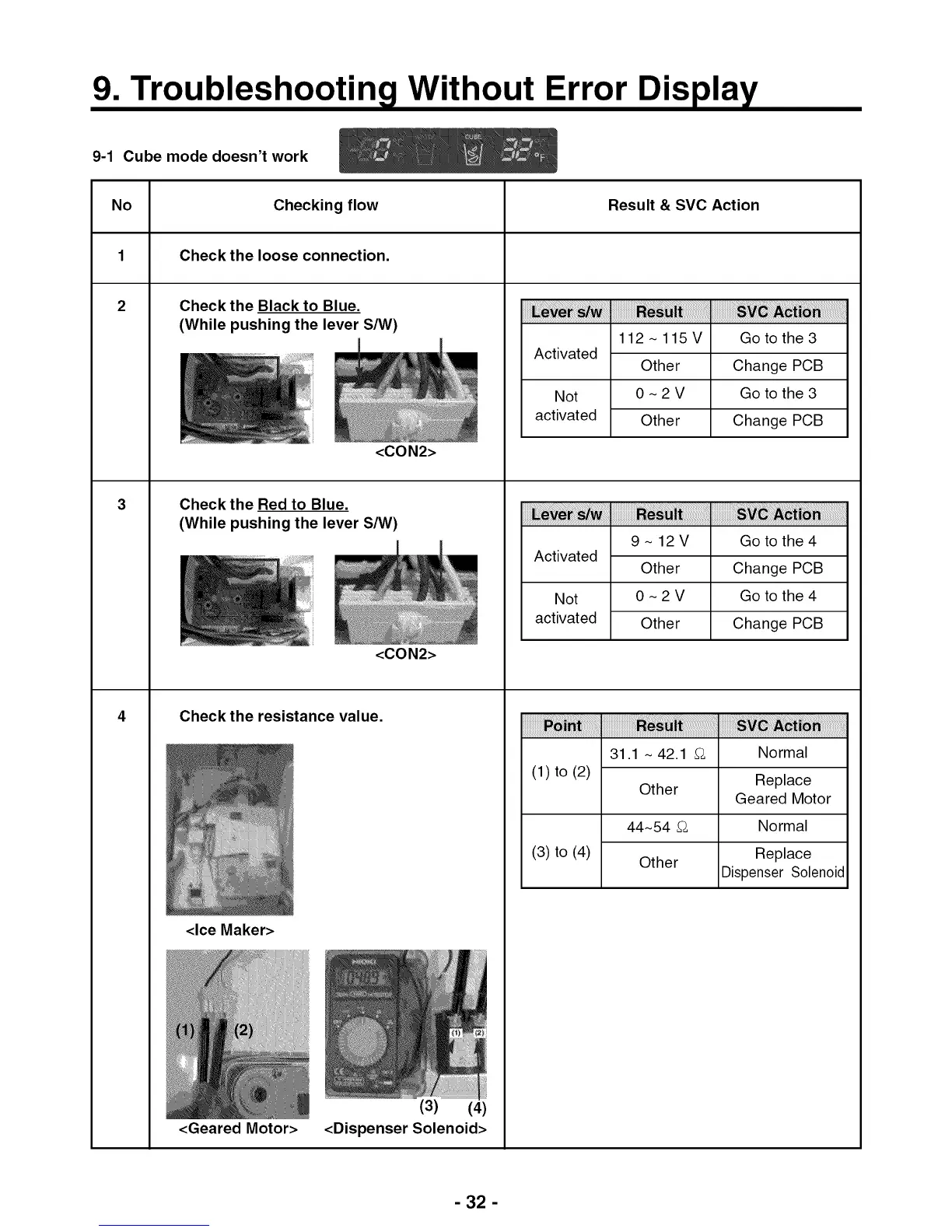

LG LMX25964 Series Service Manual

9. laTroubleshootin Without Error Dis
9-1 Cube mode doesn't work
No Checking flow Result & SVC Action
1 Check the loose connection.
2
3
4
Check the Black to Blue.
(While pushing the lever S/W)
<CON2>
Check the Red to Blue.
(While pushing the lever S/W)
<CON2>
Check the resistance value.
<Ice Maker>
<Geared Motor>
Activated
Not
activated
112~115V
Other
0~2V
Other
iiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiii_ii_!_ivi!_ii!i_!i_ii_i_i_i!_i_!;!;!;!;!;!;!;!_!;!;!;!;!;!;!;!_!;!;!
Go to the 3
Change PCB
Go to the 3
Change PCB
Activated
Not
activated
9~12V
Other
0~2V
Other
iiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiii_ii_!_ivi!_ii!i_!i_ii_i_i_i!_i_!;!;!;!;!;!;!;!_!;!;!;!;!;!;!;!_!;!;!
Go to the 4
Change PCB
Go to the 4
Change PCB
iiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiii_!ii_!i_i_i_i_i_i_i_i_i_i_i_i_i_i_iiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiii_!_i_i!_ii_i!_iiiiiiiiiiiiiiiiiiiii_i_;!_!_!_!_!_i_!_ii_i_i_i_i!_ii_ii_ii_ii_ii_ii_ii_ii_ii_ii_ii_ii_ii_ii_ii_ii_ii_ii_
31.1 ~ 42.1 _ Normal
(1) to (2) Replace
Other
Geared Motor
44~54 _ Normal
(3) to (4) Other Replace
Dispenser Solenoid
(3) (4)
<Dispenser Solenoid>
