LG LMX25964 Series - Over Cooling in Fresh Food Compartment

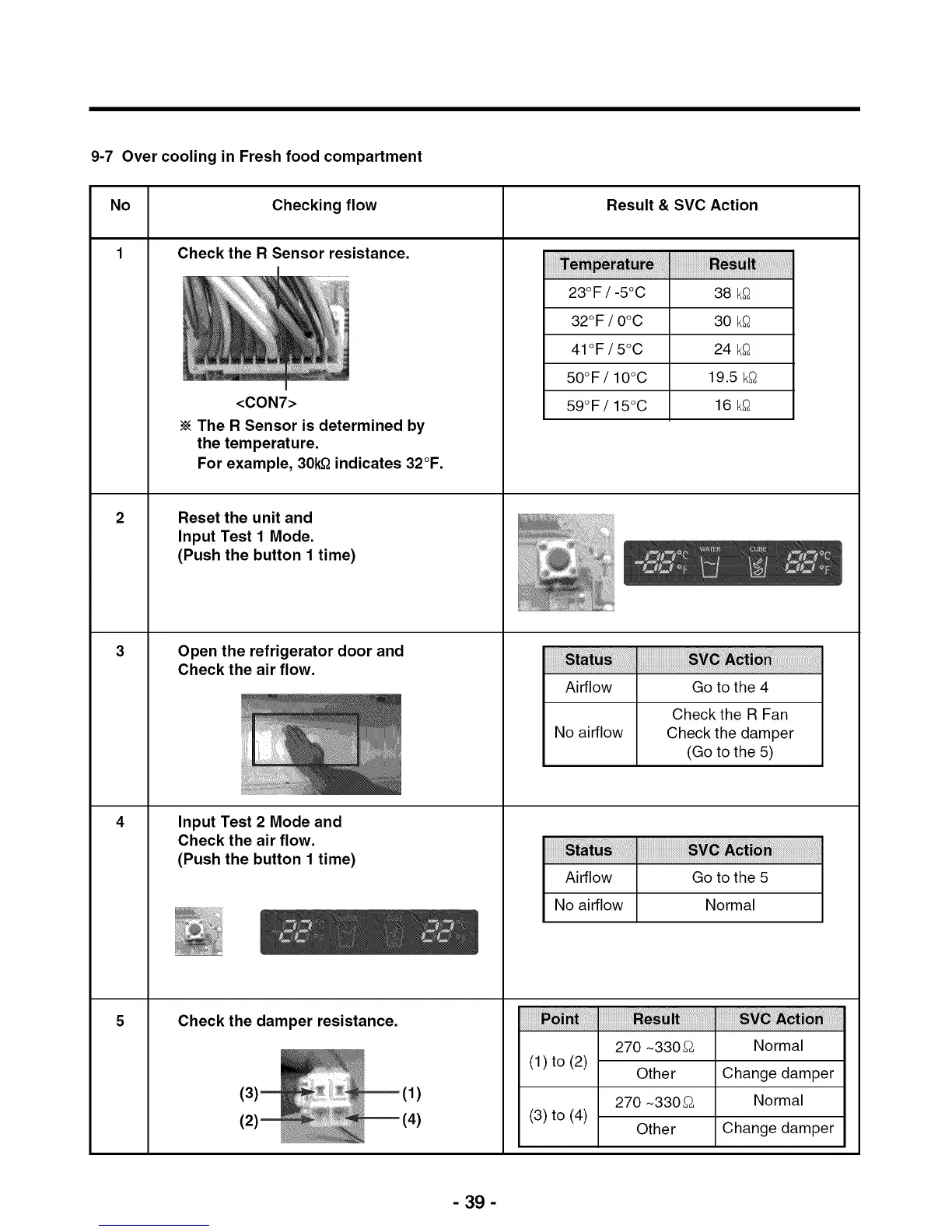

9-7 Over cooling in Fresh food compartment
No Checking flow Result & SVC Action
1 Check the R Sensor resistance.
2
3
4
5
<CON7>
The R Sensor is determined by
the temperature.
For example, 30k_ indicates 32°F.
(1)
_(4)
Reset the unit and
Input Test 1 Mode.
(Push the button 1 time)
Open the refrigerator door and
Check the air flow.
Input Test 2 Mode and
Check the air flow.
(Push the button 1 time)
Check the damper resistance.
23°F / -5°C 38 k_
32°F / 0°C 30 k_
41°F / 5°C 24 k_
50°F/10°C 19.5 k_
59°F/15°C 16 k_
Airflow Go to the 4
Check the R Fan
No airflow Check the damper
(Go to the 5)
Airflow Go to the 5
No airflow Normal
(1) to (2)
270 ~330_ Normal
Other Change damper
270 ~330_ Normal
(3)to (4)
Other Change damper
- 39 -
