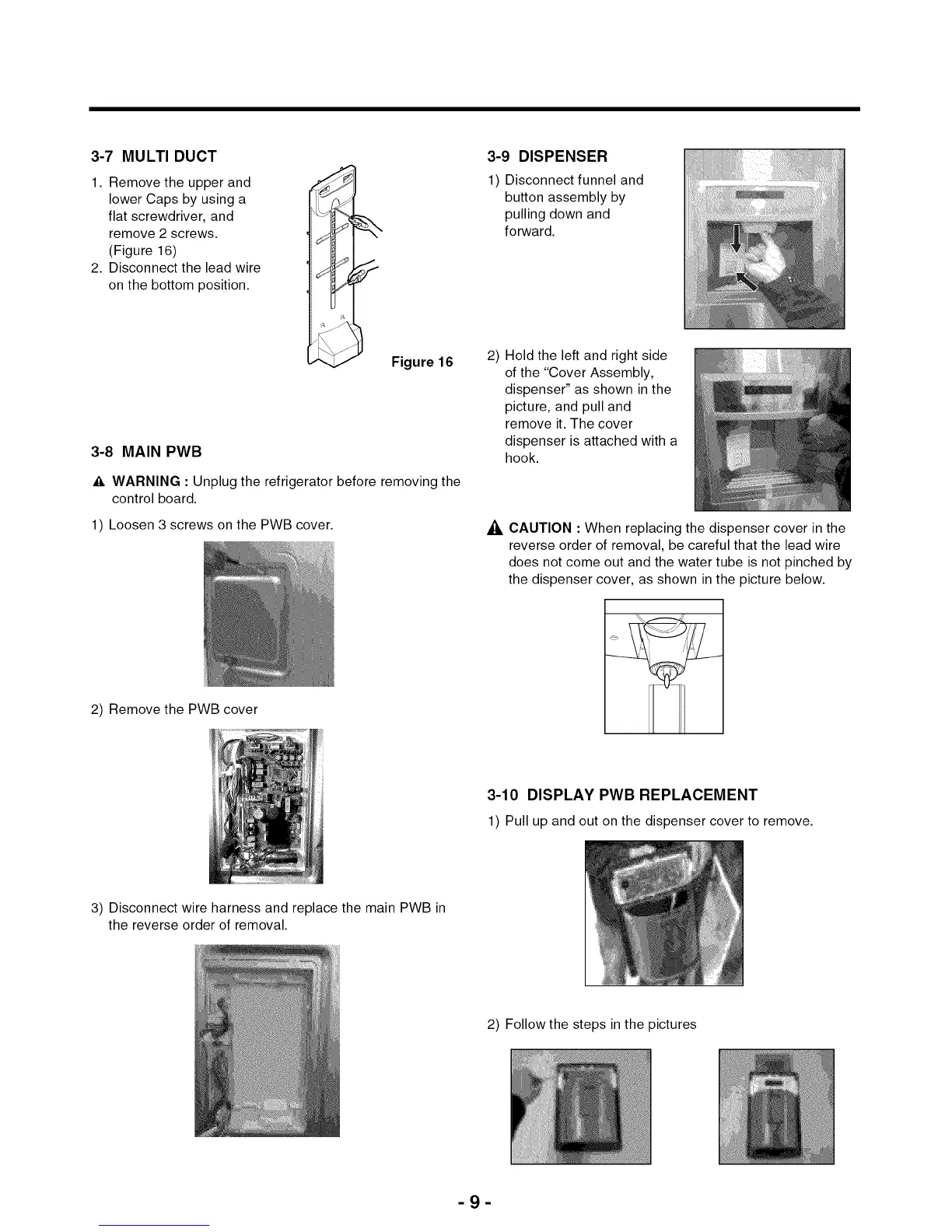

3-7 MULTI DUCT
1. Remove the upper and
lower Caps by using a
flat screwdriver, and
remove 2 screws.
(Figure 16)
2. Disconnect the lead wire
on the bottom position.
Figure 16
3-8 MAIN PWB
_k WARNING : Unplug the refrigerator before removing the
control board.
1) Loosen 3 screws on the PWB cover.
2) Remove the PWB cover
3-9 DISPENSER
1) Disconnect funnel and
button assembly by
pulling down and
forward.
2) Hold the left and right side
of the "Cover Assembly,
dispenser" as shown in the
picture, and pull and
remove it. The cover
dispenser is attached with a
hook.
CAUTION : When replacing the dispenser cover in the
reverse order of removal, be careful that the lead wire
does not come out and the water tube is not pinched by
the dispenser cover, as shown in the picture below.
3-10 DISPLAY PWB REPLACEMENT
1) Pull up and out on the dispenser cover to remove.
3) Disconnect wire harness and replace the main PWB in
the reverse order of removal.
2) Follow the steps in the pictures
-9-
