LG LMX25964 Series Service Manual

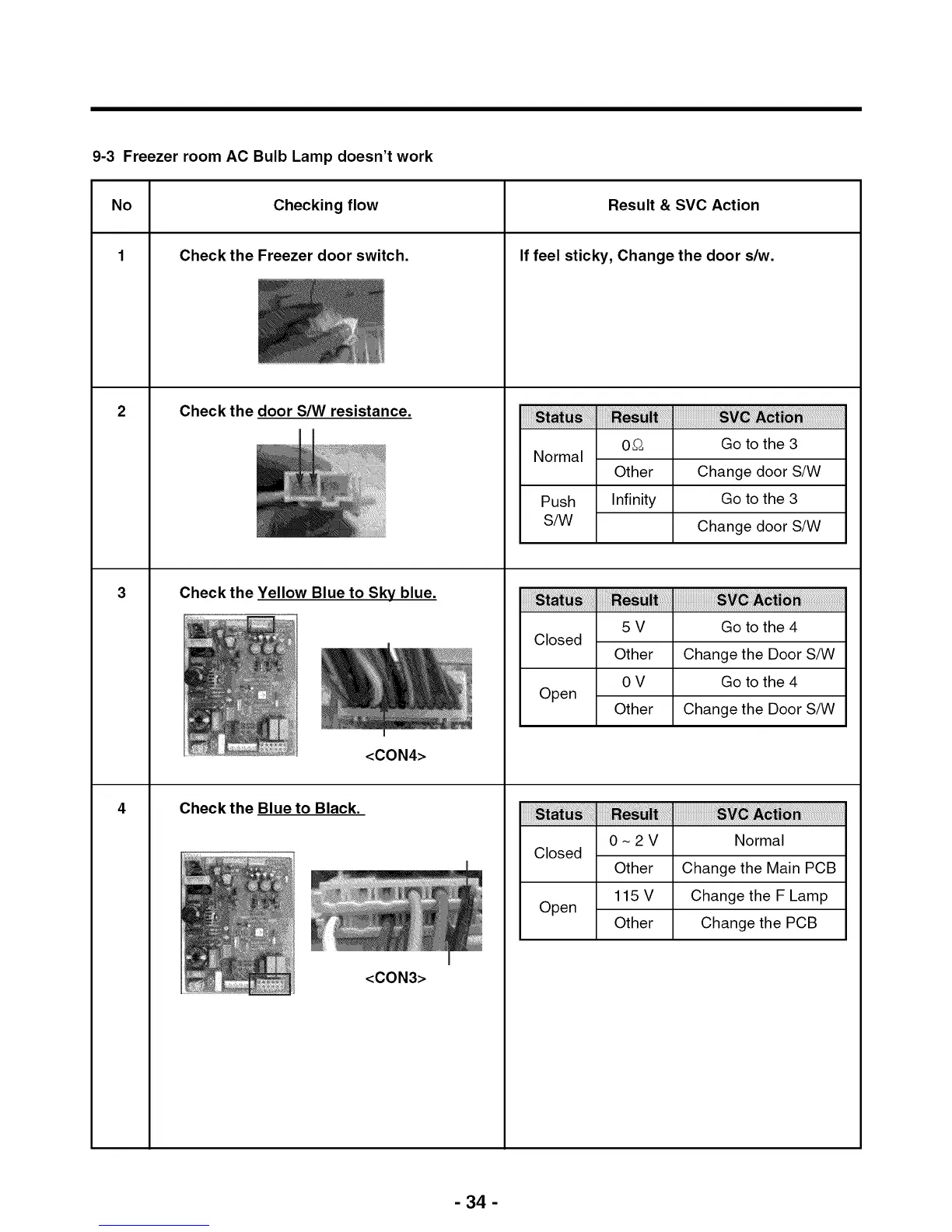

9-3 Freezer room AC Bulb Lamp doesn't work
No Checking flow Result & SVC Action
1 Check the Freezer door switch. If feel sticky, Change the door s/w.
2
3
4
Check the door S/W resistance.
Check the Yellow Blue to Sky blue.
<CON4>
Check the Blue to Black.
<CON3>
Normal
iiiiiiiiiiiiiiiiiill!_ili_aii_i!i!!i!!i!!i!!i!!i!!i!!i!!i!!i!iliiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiii!_i_iiiililii_!_ii!_!_i_ii_iiiiiiii_iiiiiiii_iiiiiiii_iiiiiiii_ii_i
0_ Go to the 3
Other Change door S/W
Push Infinity Go to the 3
S/W Change door S/W
Closed
5 V Go to the 4
Other Change the Door S/W
0 V Go to the 4
Open
Other Change the Door S/W
Closed
0 ~ 2 V Normal
Other Change the Main PCB
115 V Change the F Lamp
Open
Other Change the PCB
- 34 -
