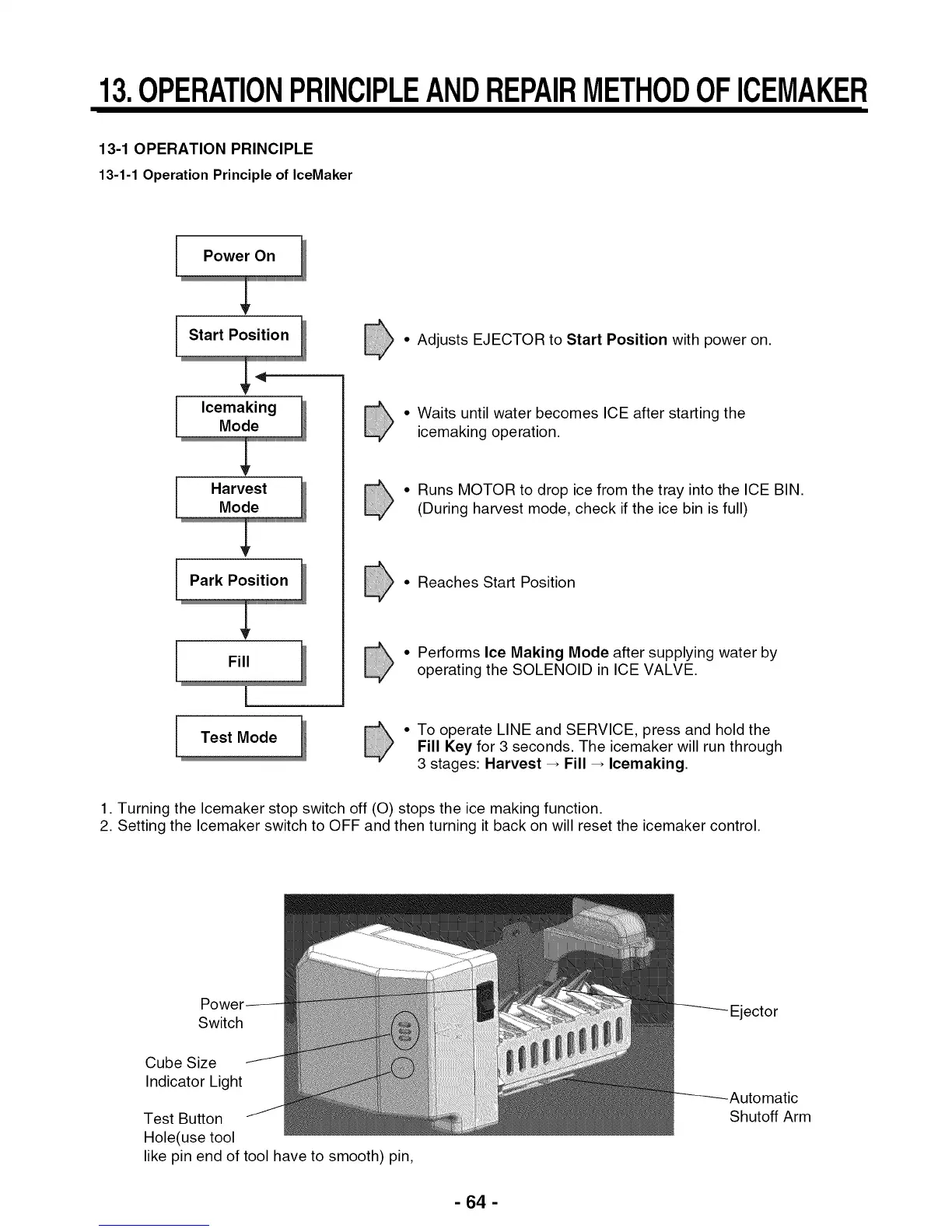

13.OPERATIONPRINCIPLEANDREPAIRMETHODOFICEMAKER
13-1 OPERATION PRINCIPLE
13-1-1 Operation Principle of IceMaker
• Adjusts EJECTOR to Start Position with power on.
• Waits until water becomes ICE after starting the
icemaking operation.
• Runs MOTOR to drop ice from the tray into the ICE BIN.
(During harvest mode, check if the ice bin is full)
• Reaches Start Position
• Performs Ice Making Mode after supplying water by
operating the SOLENOID in ICE VALVE.
• To operate LINE and SERVICE, press and hold the
Fill Key for 3 seconds. The icemaker will run through
3 stages: Harvest _ Fill _ Icemaking.
1. Turning the Icemaker stop switch off (O) stops the ice making function.
2. Setting the Icemaker switch to OFF and then turning it back on will reset the icemaker control.
Switch
jector
Cube Size
Indicator Light
Test Button
Hole(use tool
like pin end of tool have to smooth) pin,
Shutoff Arm
- 64 -
