7400 Series UPS User Manual Chapter 4 - Optional equipment
Single Module and One plus One Systems Remote Alarm Monitor (RAM) (P/N 4305001Z)
6310018a.02.doc
4-9
Issue 2
(02/98) LCA 10/01

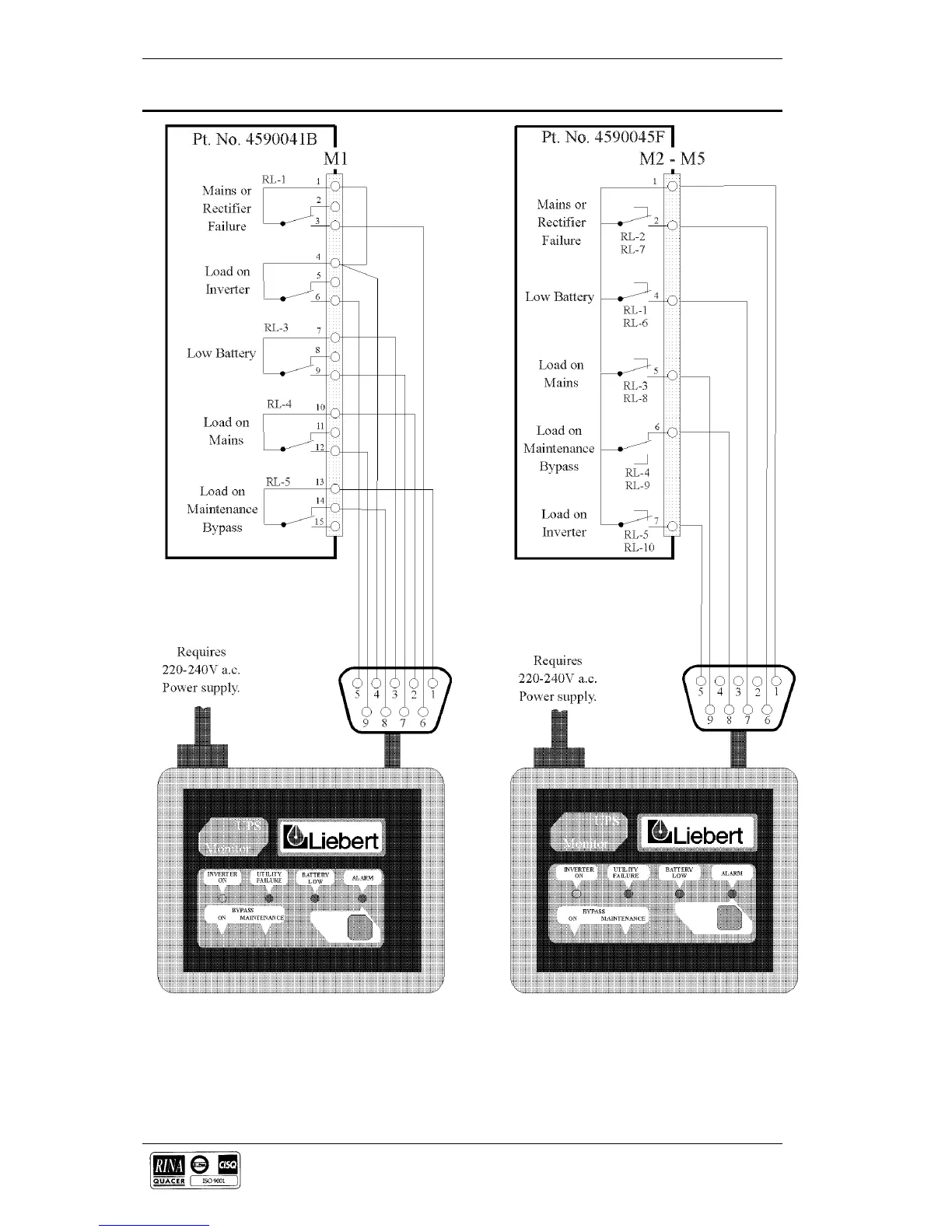

Figure 4-1 . Remote Alarm Monitor connection details
for both the single way (on the left) and four way (on the right) Interface boards.
