Chapter 4 - Optional equipment 7400 Series UPS User Manual
Option Board Kit (Part no. 77000005) Single Module and One plus One Systems
6310018a.02.doc
4-24
Issue 2
(02/98)
4.8 Cable top entry kit
This modification kit is for use with 80 kVA 120 kVA and 200 kVA
models only.

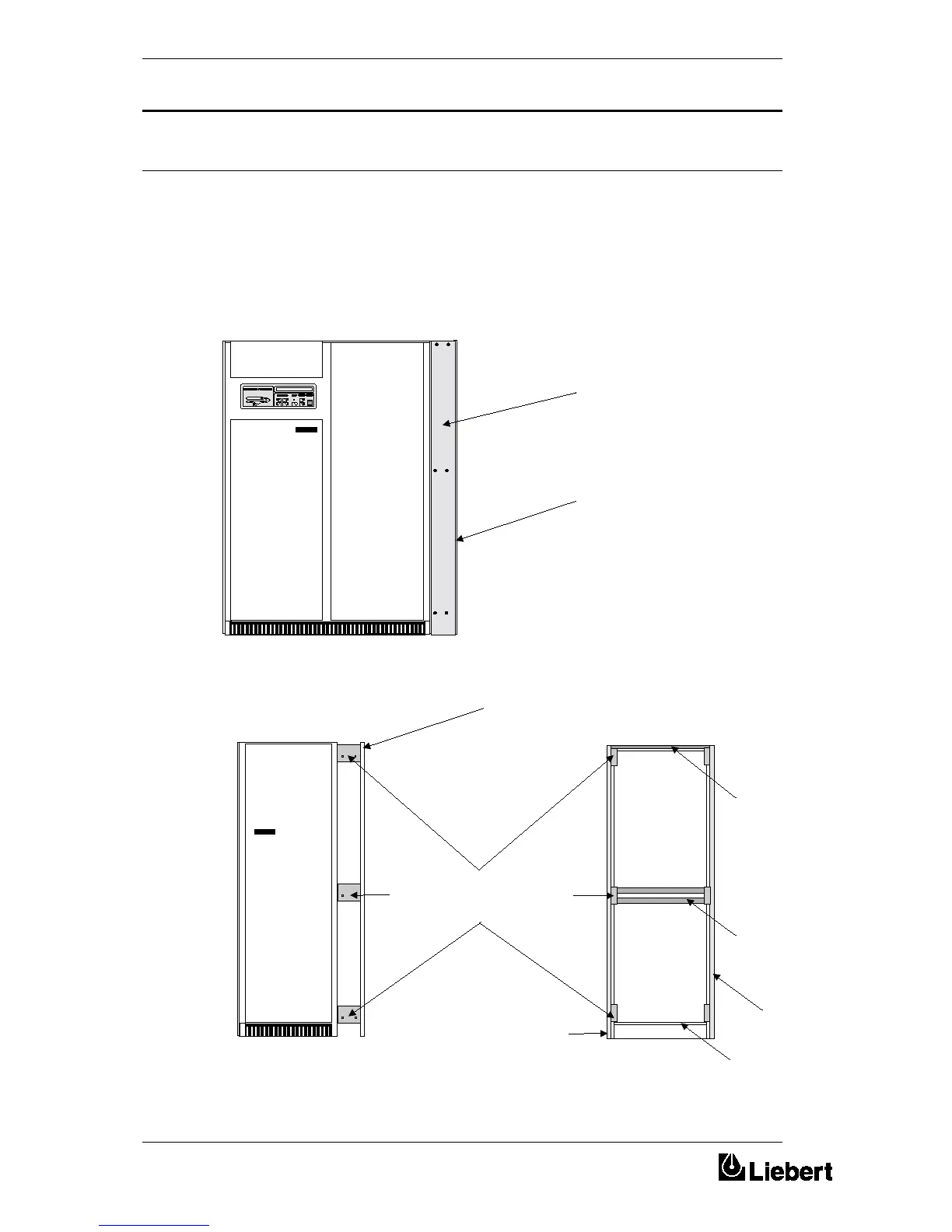

As can be seen in figure 4-13 this kit comprises front, rear and top panels
which when assembled using the extension brackets and existing UPS
end panel, allows you to extend the UPS width by approximately
200mm. This then allows cable entry through the top aluminium panel. It
is necessary for the user to size and cut holes in the top panel for the
cables to be used.
4.8.1 Introduction
CABLE TOP
ENTRY EXTENSION
Existing UPS
side panel
Existing UPS
side panel
FRONT VIEW
Extension bracket
SIDE VIEW
Front panel
Rear
panel
Cable
securing
UPS Cabinet
Figure 4-1 . Cable Top Entry Kit
