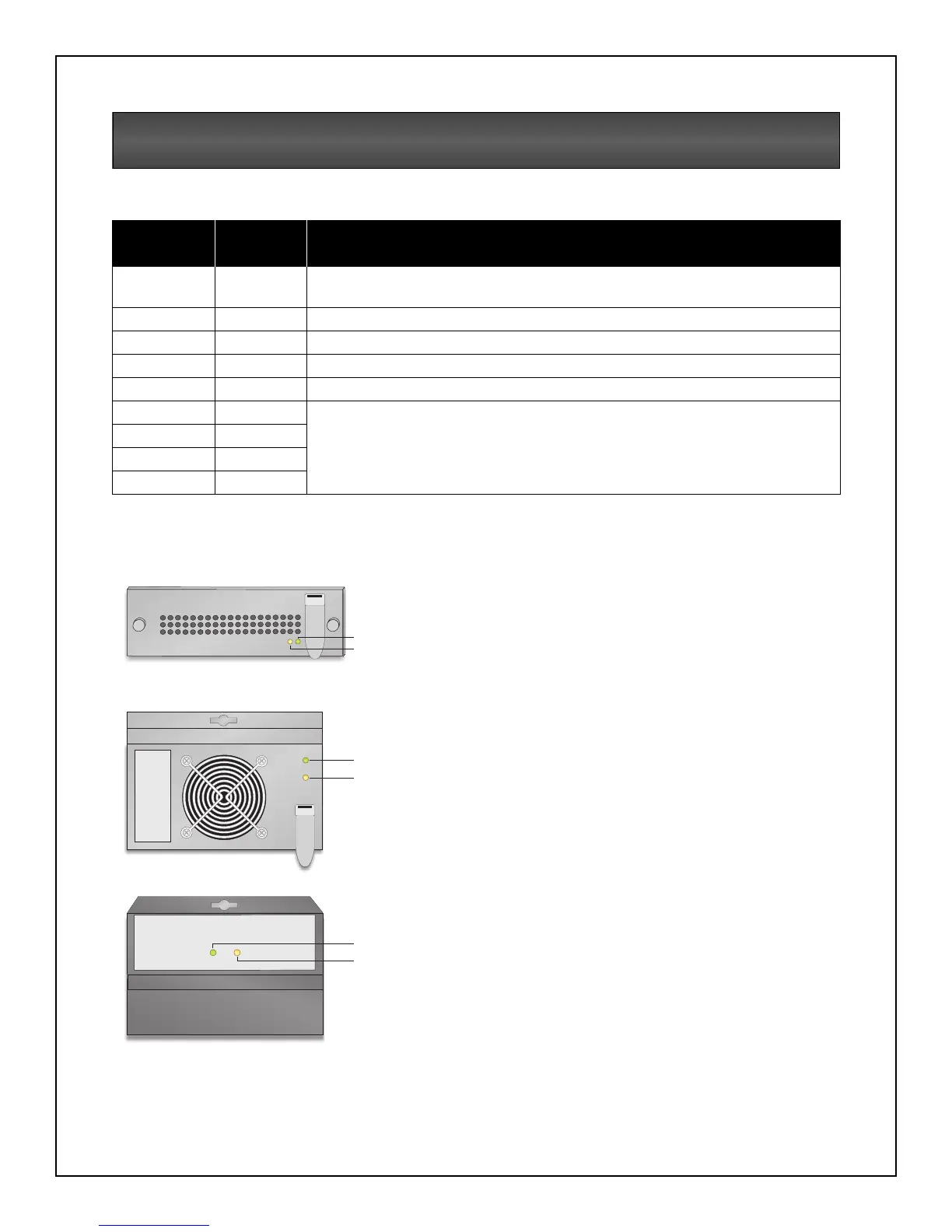

MODULE LED INDICATION
On every Battery, Power or Control Module are two LEDs to help inform the user of the module status.
Refer to the chart below:
Status LED
(Green)
Fault LED
(Amber)
Module Status
OFF OFF Module not inserted into frame.
System is OFF.
OFF ON Module is initializing (max 30 seconds*).
FLASHING OFF Normal Operation
FLASHING FLASHING Module is in start-up qualification mode, or module warning. **
FLASHING ON Module failed, is off-line and module control is functioning.
OFF FLASHING
Abnormal operation, re-insert module.
If this persists, contact qualified assistance.
ON OFF
ON ON
ON FLASHING
* If this persists for more than 30 seconds, check to verify the lever is in the down position; otherwise the module is
faulty.
** If both Green and Amber LEDs are flashing for more than 30 seconds, then re-insert module.
Status LED
Fault LED
Control Module
Status LED
Fault LED
Status LED
Fault LED
Battery Module
Power Module
