Liebert NX 30 User Manual

26 User Manual 10H52192UM60 - Rev. 1 - 09/2011
Liebert NX Battery
2.6 Reference Current and Connection of External Battery Cubicle
Table 2-1 provides recommendations for the rated current and CSA connection cable.
Table 2-1 Reference Table for Selection of Rated Current and CSA Connection Cables (Recommended)
Item Unit
UPS rating (kVA)
30 40 60
30-block
battery
Maximum battery discharge
current at full load
A 105 140 210
Reference rated current A 150 175 250
CSA connection cable mm
2
35 50 70
32-block
battery
Maximum battery discharge
current at full load
A 100 133 200
Reference rated current A 150 150 250
CSA connection cable mm
2
35 50 70
34-block
battery
Maximum battery discharge
current at full load
A 94 125 186
Reference rated current A 100 150 200
CSA connection cable mm
2
35 50 70
36-block
battery
Maximum battery discharge
current at full load
A 88 118 176
Reference rated current A 100 125 200
CSA connection cable mm
2
25 35 50
38-block
battery
Maximum battery discharge
current at full load
A 84 112 168
Reference rated current A 100 125 200
CSA connection cable mm
2
25 35 50
40-block
battery
Maximum battery discharge
current at full load
A 80 106 160
Reference rated current A 100 125 200
CSA connection cable mm
2
16 25 35


N
N

N

UPS
+
N
N
-
UPS
N
+
-

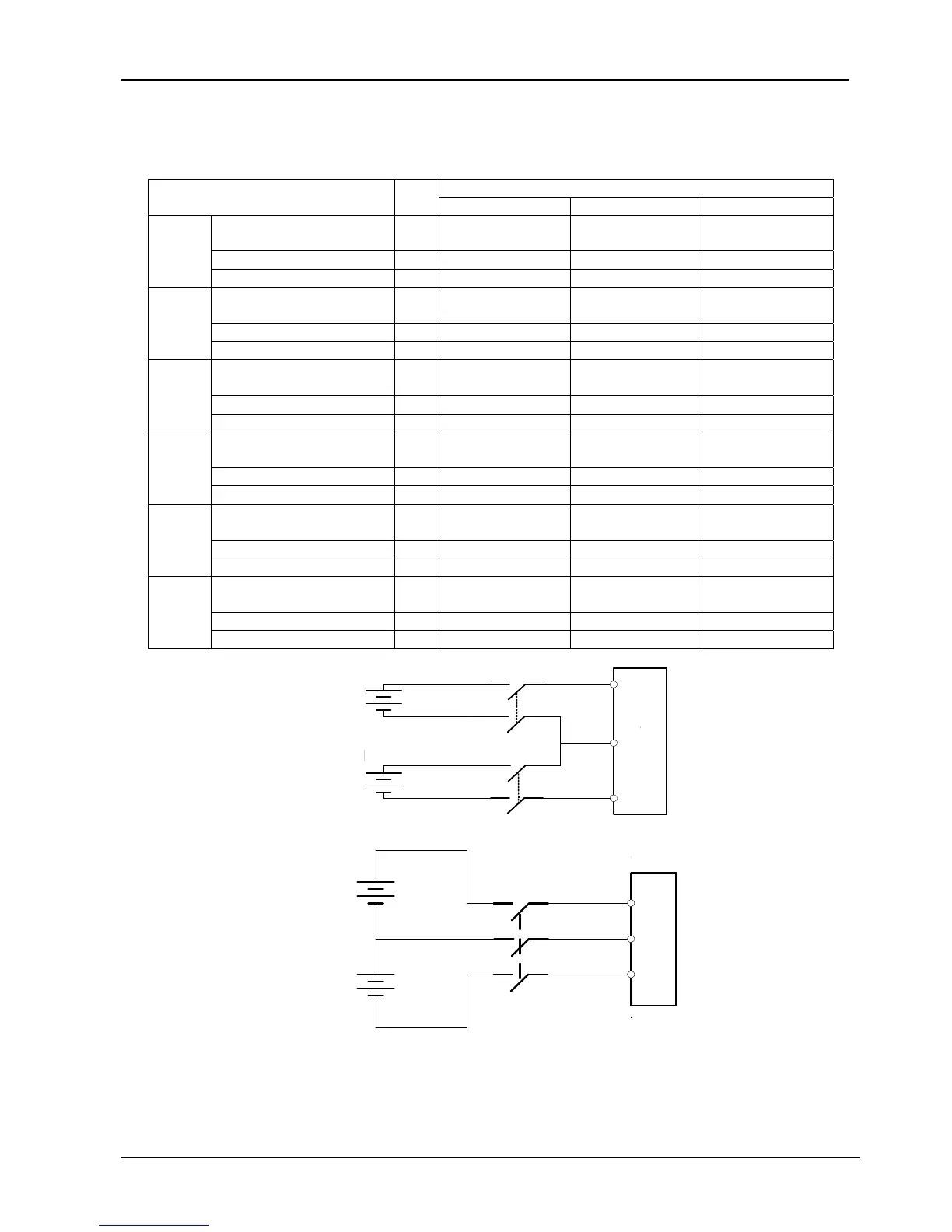

Figure 2-3 Connections Between Battery, BCB, and UPS (4 Wires at Battery Side)
UPS
N
N
N
N
UPS
Figure 2-4 Connections Between Battery, BCB, and UPS (3 Wires at Battery Side, Battery Consisting of 30 to 34 Cells)
