User Manual 10H52192UM60 - Rev. 1 - 09/2011 39
Operator Control and Display Panel Liebert NX
5.2 LCD Screen Type
5.2.1 Start Screen
When the UPS is switched on, it performs a self-test, and the start screen appears for approximately 15 seconds, see Figure 5-2.

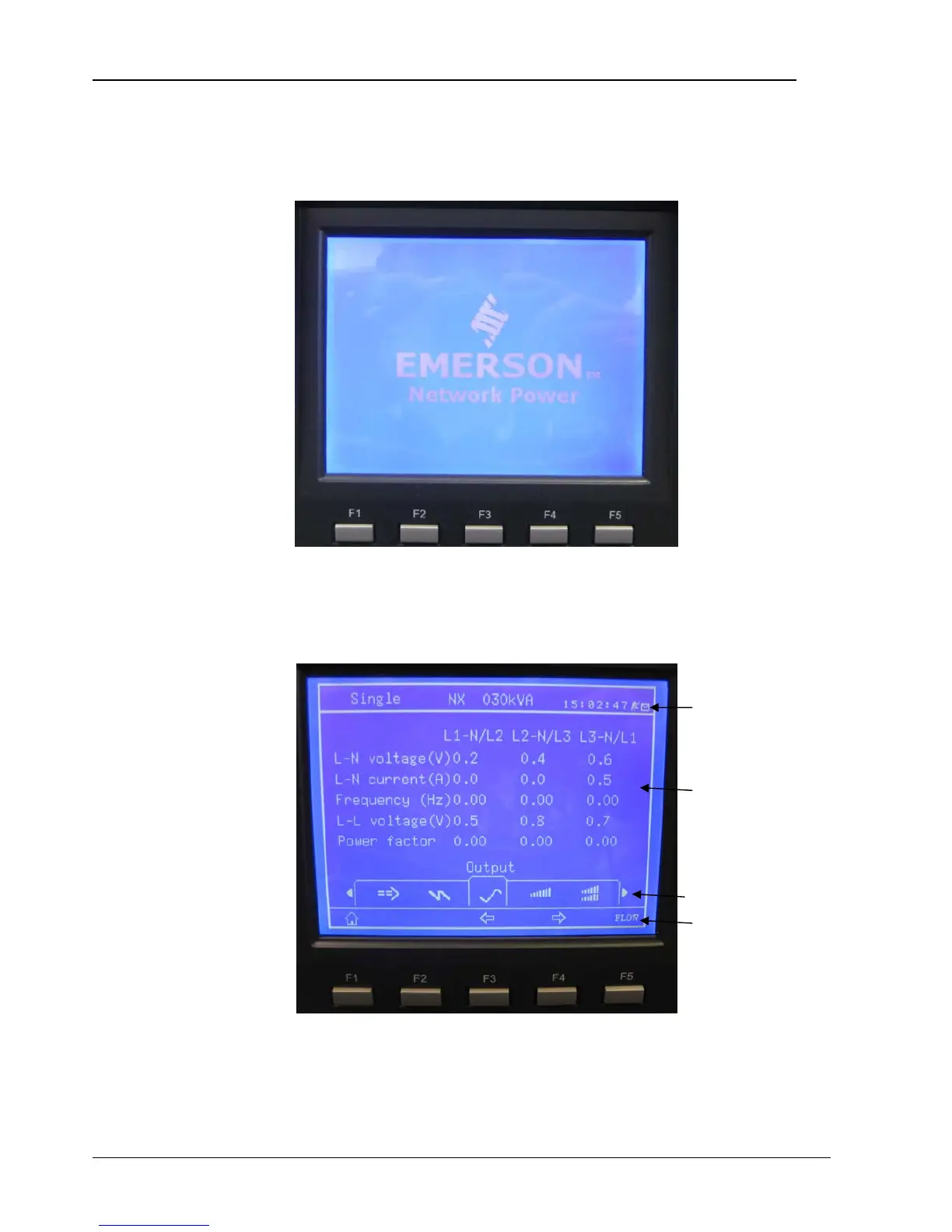

Figure 5-2 Start Screen
5.2.2 Primary Screen
After the UPS self-test is complete, the primary screen appears, see Figure 5-3. The primary screen is divided into four windows:
system information window, data window, menu window, and keypad window.
Figure 5-3 Primary Screen
The functions of the menu keys F1 to F5 on the screen vary according to the current selection and are indicated by self-explanatory
icons in the keypad window. Press the F1 key in any menu on the primary screen to return to the output menu.
Data window
Menu window
Keypad window
System information window
