Liebert NX 30 - Chapter 9 Transformer Versions; Input Transformer Version

User Manual 10H52192UM60 - Rev. 1 - 09/2011 61
Transformer Version Liebert NX
Chapter 9 Transformer Versions
9.1 Input Transformer Version
This UPS can be supplied with an insulating transformer at the UPS input. This transformer is installed in place of the batteries and
provides electrical insulation between the load and the input mains utility.

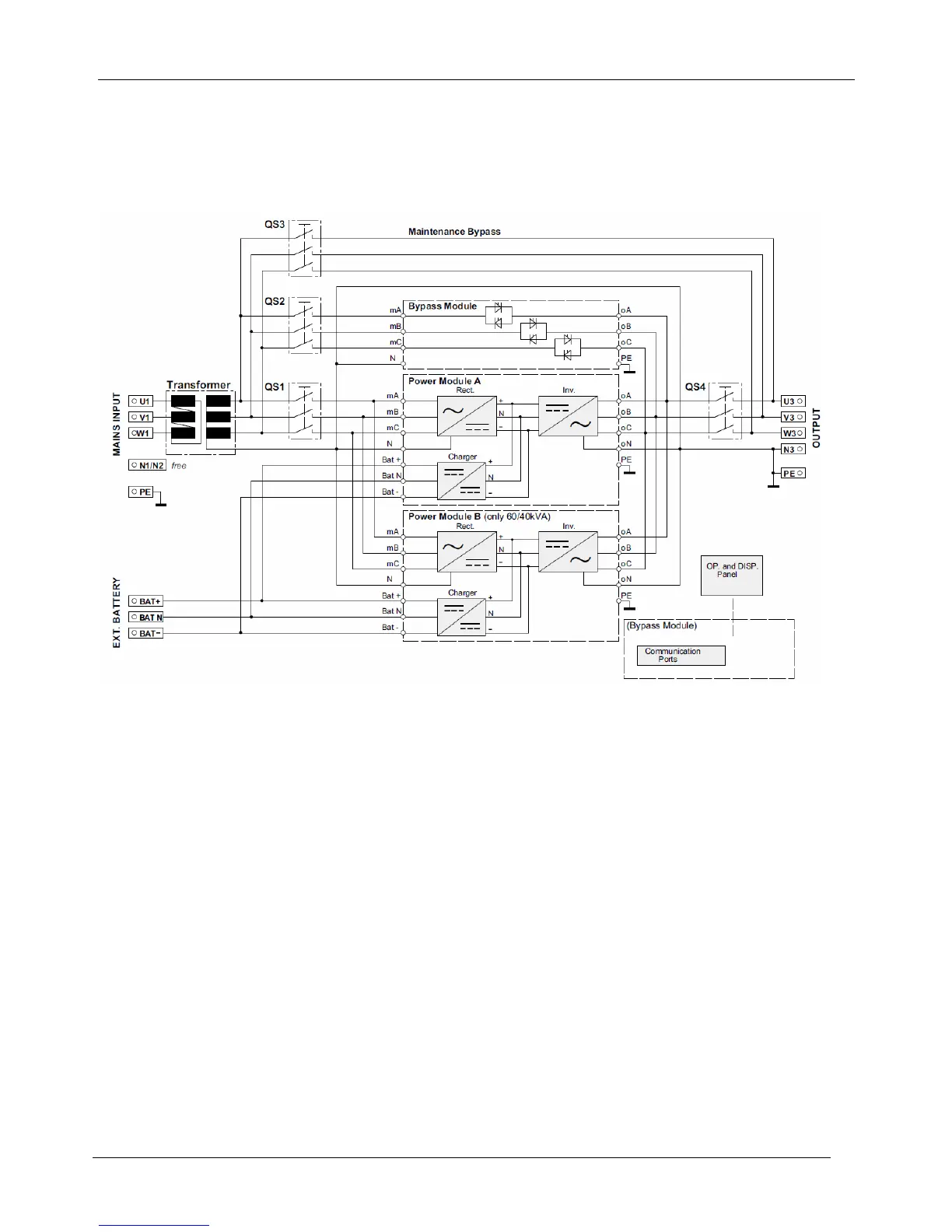

Figure 9-1 UPS with Input Insulating Transformer
