2. Installation MX-FR Series Modular Matrix Frames – User's Manual 14
WARNING! The I/O boards and the CPU board are not hot-swappable. The matrix must be powered off
before removing/inserting a board.
Important Notices about the Boards
motherboard in the matrix, thus they have dedicated slots as indicated in the rear plate. In general:
▪ CPU board is always placed in the uppermost position.
▪ Output boards are located below the CPU board.
▪ Input boards are located in the bottom slots.

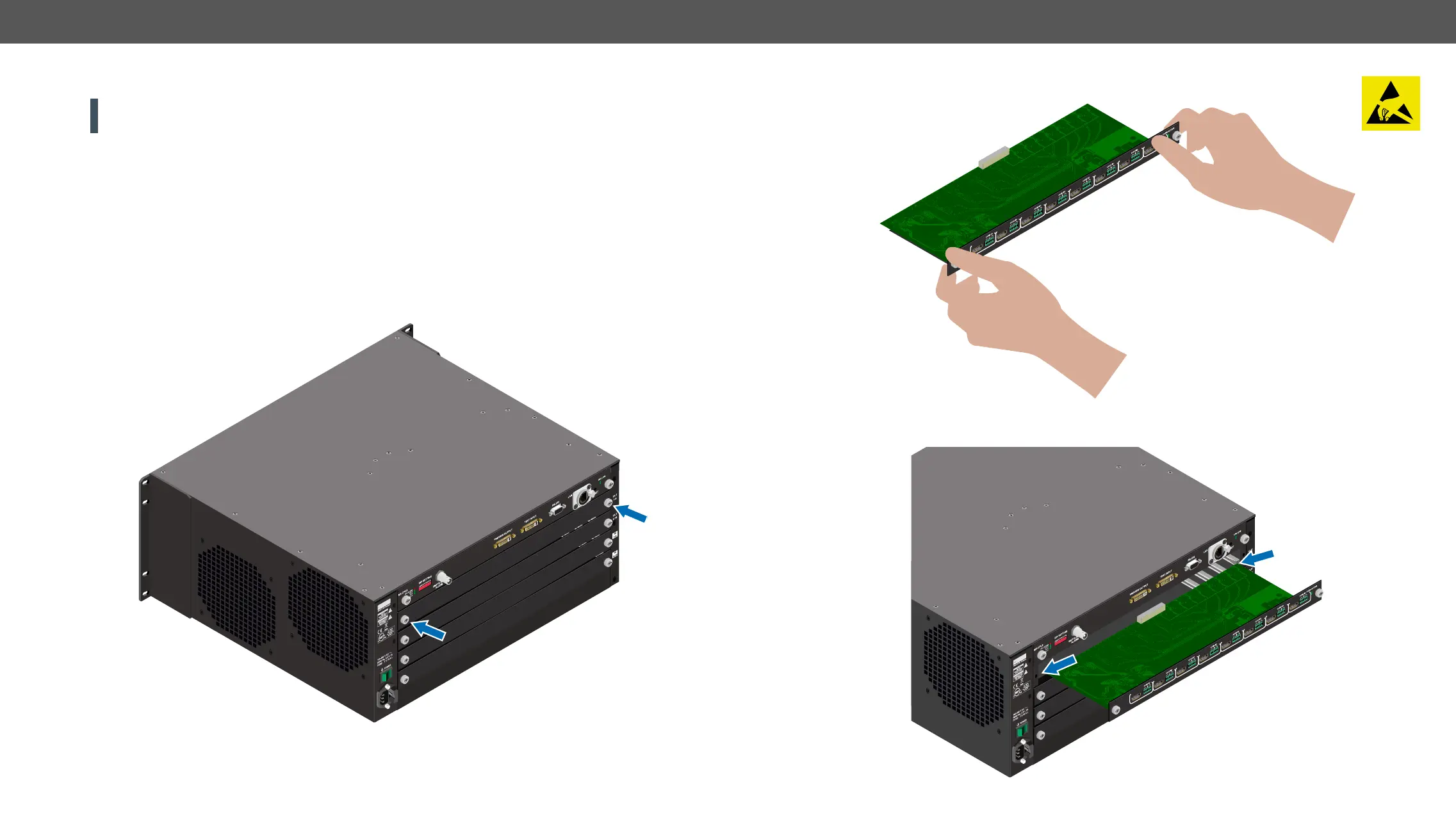

Installing a Board
Step 1. Make sure the matrix is powered off.
Step 2.
CPU
Step 3. Take the board by touching the metal plate only, to prevent ESD-caused problems.
Step 4. Insert the edge of the board in the slot at both sides.
8CH OUTPUT BOARD FOR HDMI WITH 3D AND ANALOG AUDIO
MX-HDMI-3D-OB-A
OUT 1
OUT 2
OUT 3
OUT 4
OUT 5
OUT 6
OUT 7
OUT 8
CPU
8CH OUTPUT BOARD FOR HDMI WITH 3D AND ANALOG AUDIO
MX-HDMI-3D-OB-A
OUT 1
OUT 2
OUT 3
OUT 4
OUT 5
OUT 6
OUT 7
OUT 8
