3. Product Overview MX-FR Series Modular Matrix Frames – User's Manual 25

MX-FR33L

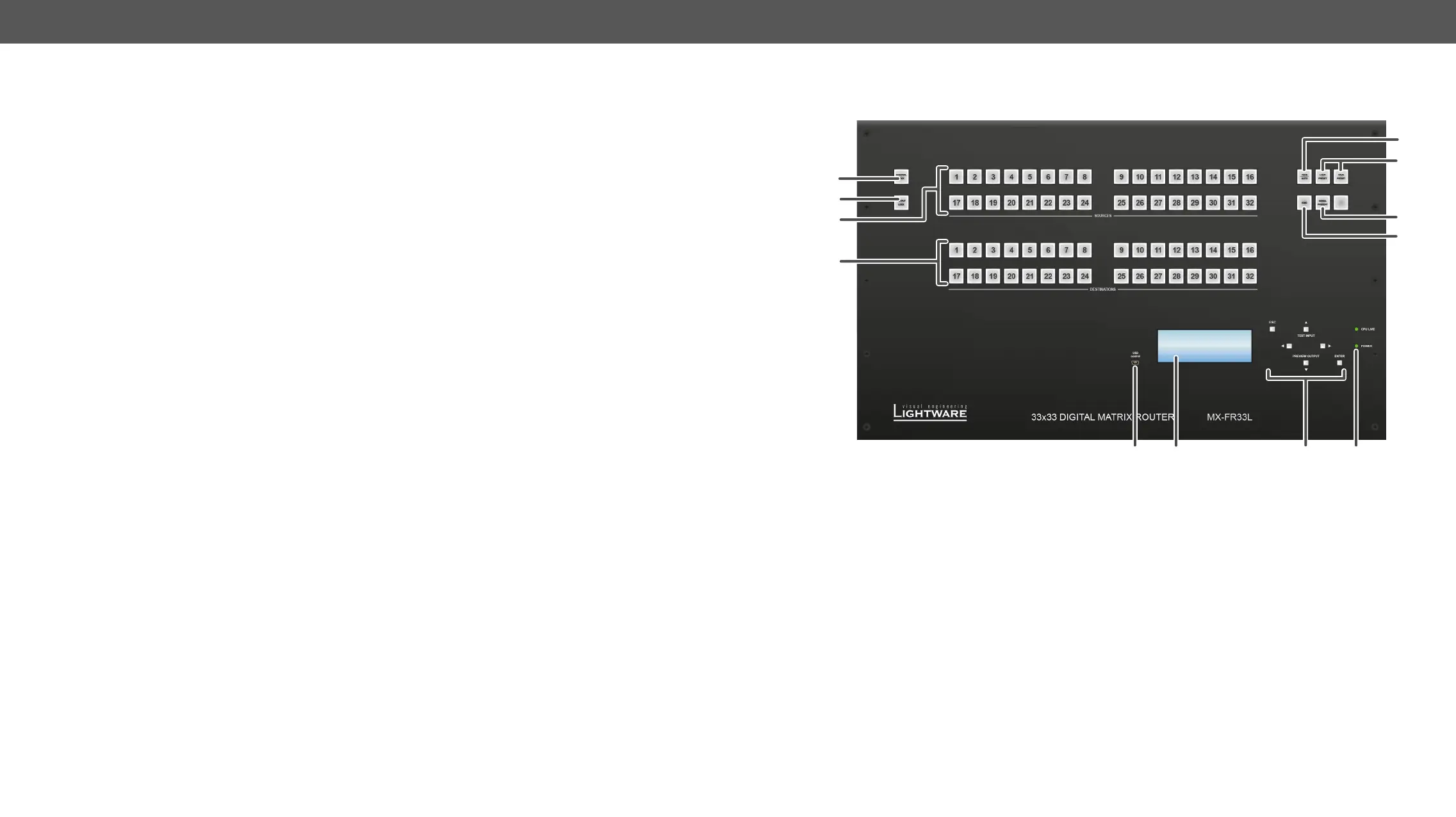

Front View
1
USB control USB connection for Lightware Device Controller software.
2
Menu display Displays status information and menu operation.
3
Menu navigation Arrows, escape, and enter buttons for menu navigation.
4
Status LEDs CPU live LED blinks to indicate normal operation. Power LED shines green
when the router is powered on.
5
Control lock   
operations on front panel are prohibited.
6
Output lock Locks one (or more) outputs. Inhibits accidental input changing on the
protected output.
7
Source buttons Source buttons can be used to select an input or preset or to view the selected

8
Destination buttons Destination buttons can be used to select an output, or view the selected

9
Take / Auto Displays the current switching mode (TAKE or AUTOTAKE). Long press
toggles the switching mode, short press executes switching in TAKE mode.
q
Preset buttons Load preset: apply a previously saved crosspoint preset from one of the
preset memories. Save preset: stores current crosspoint state in one of the
preset memories.
w
EDID mode Switches the Menu display to EDID menu allowing EDID switch, EDID save etc.
e
Signal present Displays live sources and attached sinks on source and destination buttons.
1
2
9
5
6
w
e
43
q
7
8




