6. Software Control – Lightware Device Controller Software MX-FR Series Modular Matrix Frames – User's Manual 71

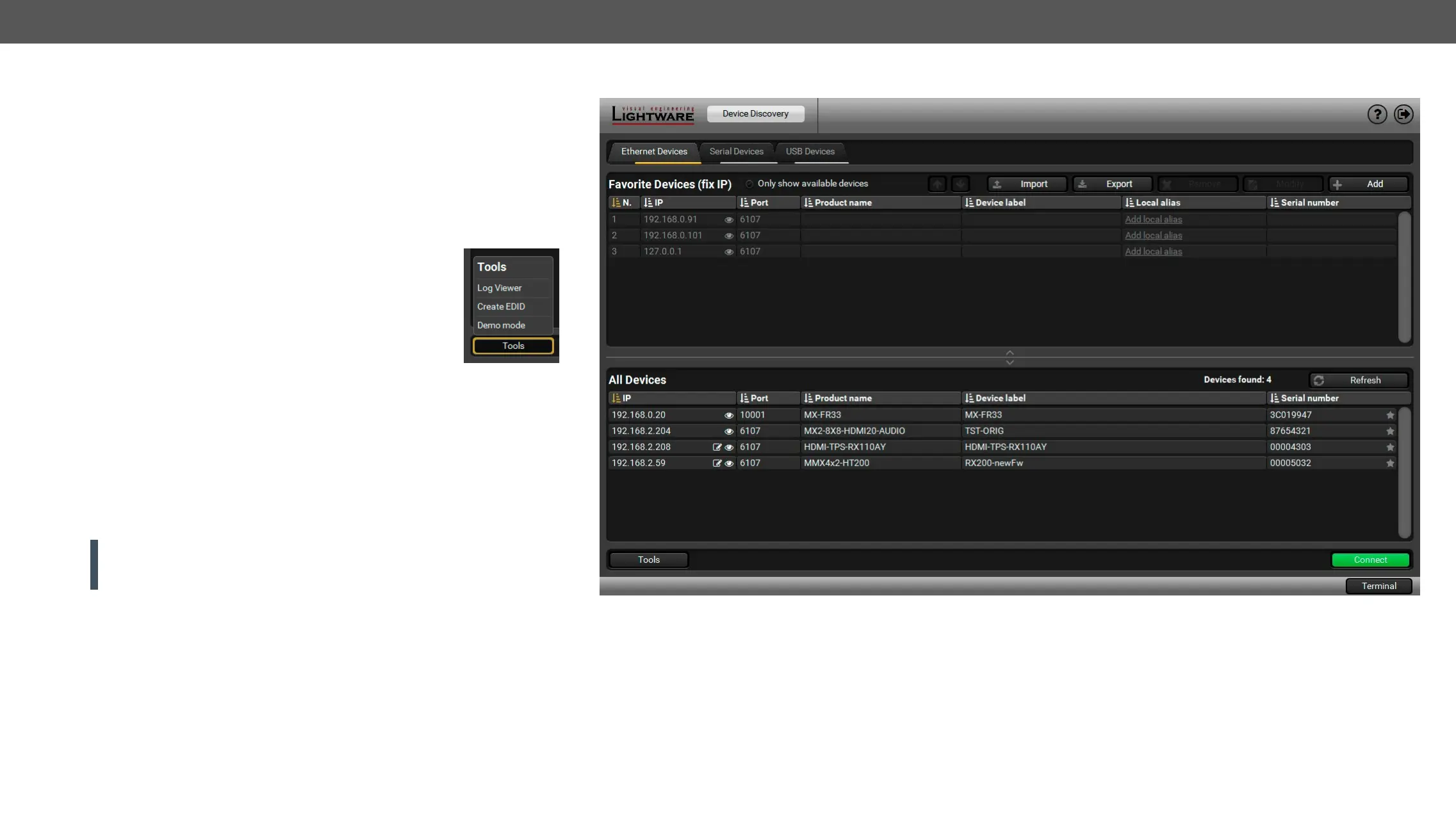

There are three tabs for the different type of interfaces: Ethernet, Serial, and USB.
The Ethernet tab consists of two lists:
▪ Favorite devices:
Ethernet and no need to browse all the available devices.
▪ All devices: The Lightware devices are listed that are available in the network.
Further Tools
The Tools menu contains the following options:
▪ Log viewer: The tool can be used for reviewing previously
▪ Create EDID: This tool opens the Easy EDID Creator wizard,
which can be used for creating unique EDIDs in a few
simple steps. Functionality is the same as that of the
Easy EDID Creator, for the detailed information, see the
Creating an EDID section.
▪ Demo mode: This is a virtual MX-FR17 matrix router with full functionality built
into the LDC. Functions and options are the same as that of a real MX-FR17
device.
The Terminal window is also available by pressing its button on the bottom.
Establishing the Connection
Select the unit from the discovered Ethernet devices or under USB devices; when the
device, or select it and click on the green Connect button.
ATTENTION!
on the front panel LCD menu, see the Control Protocols section.
