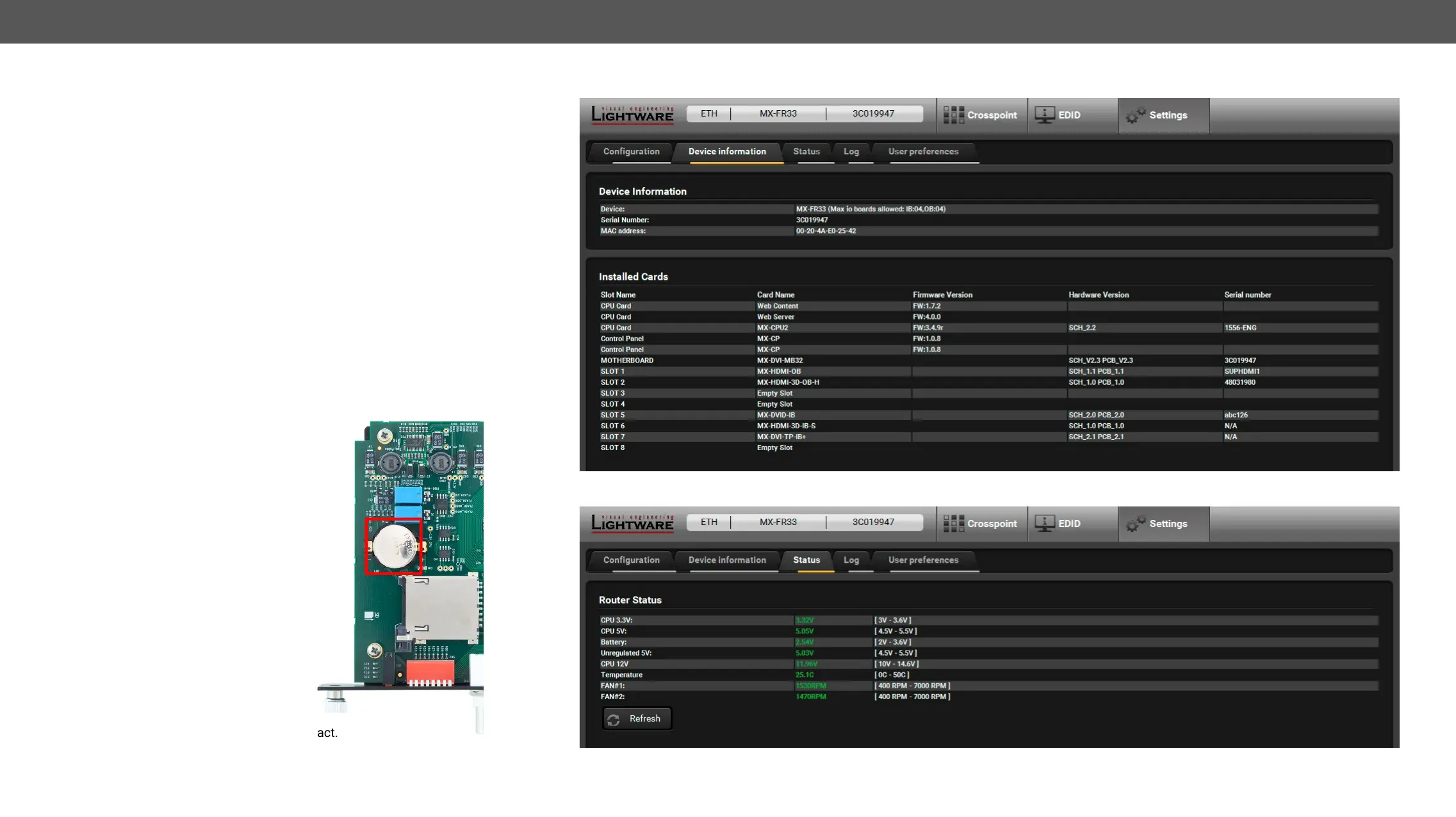

Device Information
Basic information about the matrix frame and about the installed
boards is listed on this tab:
▪ CPU board with controllers
▪ Motherboard type and version
▪ Input boards with Slot number
▪ Output boards with Slot number
Status
The Health status of the matrix frame is displayed on this tab by showing
internal measurement values: #rmwareversion
▪ CPU Voltage levels
▪ Battery cell Voltage level
▪ Further internally applied Voltage levels
▪ Internal temperature
▪ The RPM values of the fans
Press the Refresh
Battery Low Alert
The warning shows that the battery
on the CPU board is exhausted or not
inserted. The function of the battery
is powering the real time clock when
the frame is powered down. The
low battery does not affect normal
operation of the matrix. However, the
error log will not have correct time
stamps.
Replacement Steps
Step 1. Switch off the matrix and
take out the MX-CPU2
board. Locate the battery
holder. Check if the battery is
contacting well in the holder.
Step 2.
taking care not to bend the
spring contact upwards. Bend
the spring contact a little bit
downwards to ensure good contact.
Step 3. If the battery is exhausted, replace with lithium button battery
type CR2032.
