6. Software Control – Lightware Device Controller Software MX-FR Series Modular Matrix Frames – User's Manual 84
Numerous settings and parameters are available on the tabs, like:
▪
▪
▪
▪ RS-232 port settings of the device's local port.
Firmware Settings
The settings and the update process is described in the Firmware Update of TPS(2) Ports section.
The PoE-compatible Remote power feature can be enabled port by port under TPS link section and the
current state is shown in the following line.

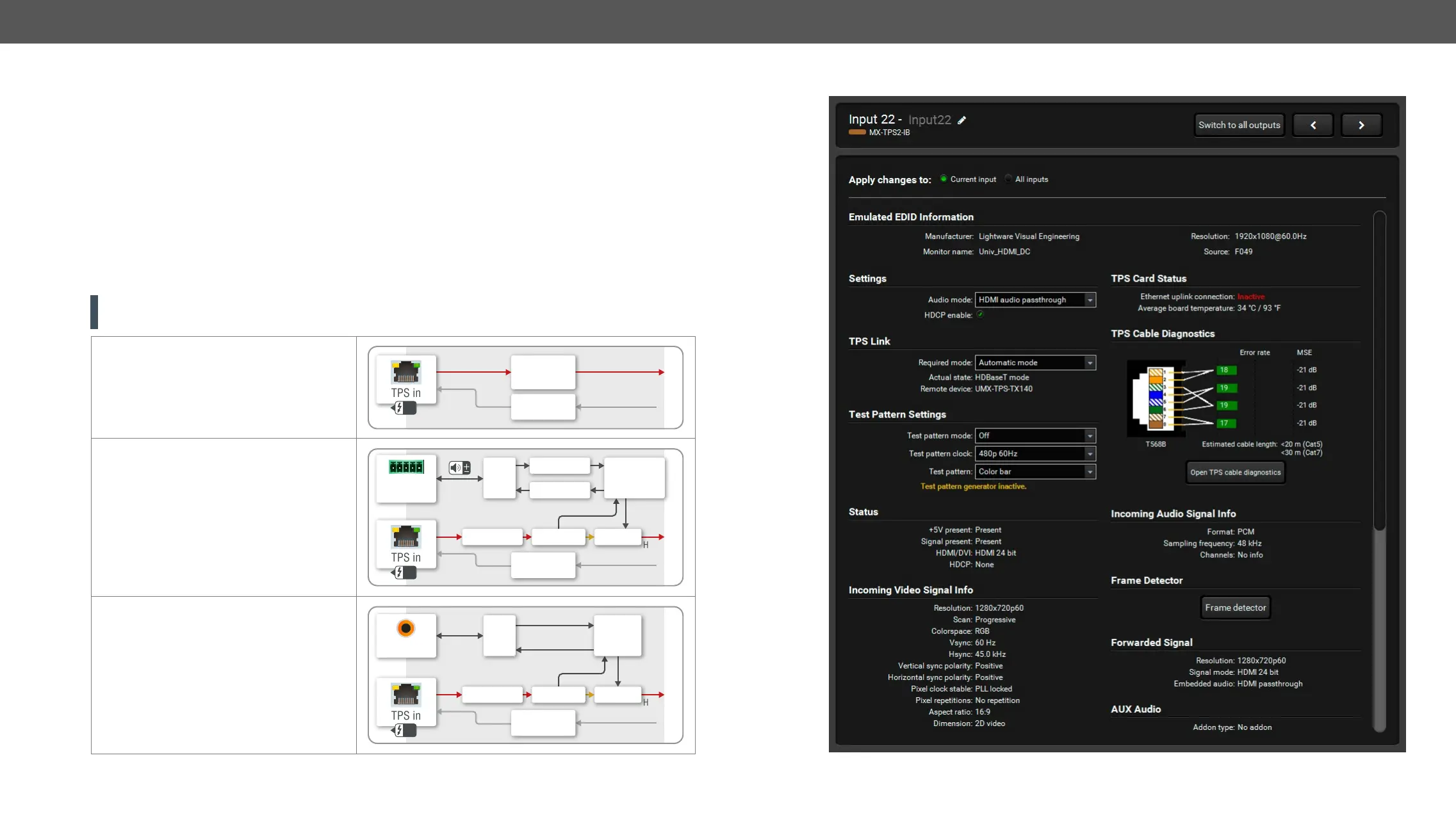

Port Diagrams
ATTENTION!
MX-TPS-IB
MX-TPS2-IB-P
MX-4TPS2-4HDMI-IB*
MX-4TPS2-4HDMI-IB-P*
Plain TPS input board with remote power
support without additional audio ports.
TPS in
TPS HDMI
48V external power
HDBaseT
TM
RX
Switchable PoE
power injector
PoE
MX-TPS-IB-A
MX-TPS2-IB-AP
MX-4TPS2-4HDMI-IB-A*
MX-4TPS2-4HDMI-IB-AP*
TPS input board with remote power support
and an additional analog audio port. The
additional audio port can be used as an input
(embedding the analog audio in the video of
the TPS signal) or it can be used as an output
(de-embedding the audio of the HDMI stream).
TPS in
TPS
HDMI
48V external power
Switchable PoE
power injector
PoE
Analog
audio
A/D converter
D/A converter
Switch
S/PDIF
crosspoint
Balanced
in/out
S/PDIF out
S/PDIF in
De-embedder EmbedderHDBaseT
TM
RX
MX-TPS-IB-S
MX-TPS2-IB-SP
MX-4TPS2-4HDMI-IB-S*
MX-4TPS2-4HDMI-IB-SP*
TPS input board with remote power support
additional audio port can be used as an input
(embedding the digital audio in the video of
the TPS signal), or it can be used as an output
(de-embedding the audio of the HDMI stream).
TPS in
TPS
HDMI
48V external power
Switchable PoE
power injector
PoE
S/PDIF out
S/PDIF in
De-embedder EmbedderHDBaseT
TM
RX
RCA
Switch
S/PDIF
in
out
S/PDIF
crosspoint
* Refers only to the four TPS ports of the board. #audio #analogaudio
For detailed information about the audio settings, see the Audio Options section.
TPS Input Port Properties (MX-TPS2-IB)
