2.6.2. MX-HDMI-OB

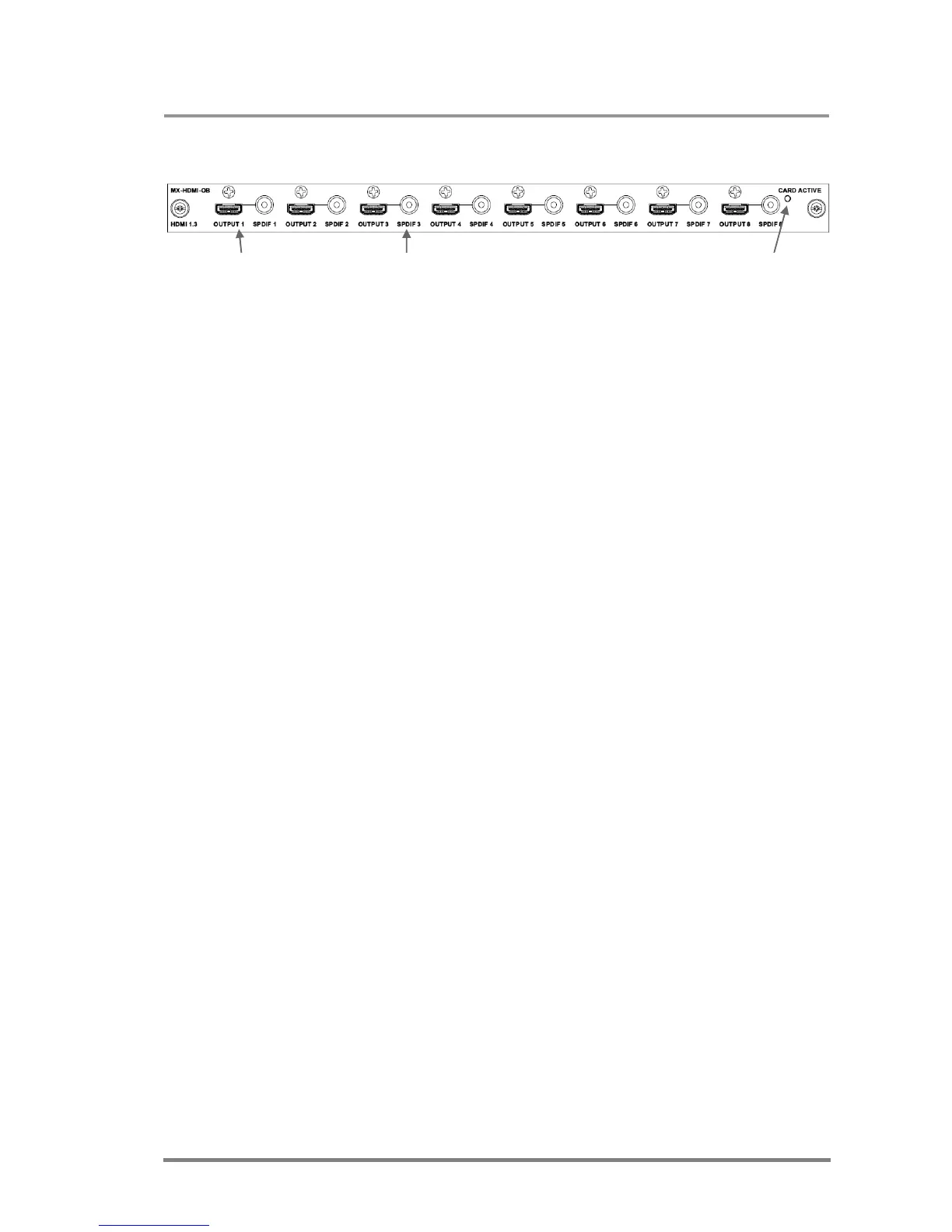

HDMI outputs S/PDIF outputs Card active LED
8-channel HDMI 1.3 compatible output card. Each output port has an RCA
connector on which S/PDIF audio is sent, however the audio signal can be
transmitted on the HDMI ports at the same time.
Connectors 8x 19-pole type A HDMI connectors
8x RCA connectors
Signal reclocking Yes
DVI support Up to 165MHz pixel clock, single link only
HDMI support Up to 225MHz pixel clock, HDMI 1.3 compatible
HDCP HDCP 1.3 compliant
Signal monitoring Same as described at MX-DVI-HDCP-IB.
Conversions Same as described at MX-DVI-HDCP-OB.
Info: The Dolby True-HD and DTS-HD Master Audio formats cannot be outputted on the
RCA connectors due to their bandwidth needs, which exceed the maximum of the
S/PDIF standard.
