EDID reset Resets the EDID on all input ports to factory default.
(LWR 1920x1200@59.55Hz UniversalEDID)
3.3.3. EDID mode
EDID mode is active when the EDID button is illuminated on the front panel. To
enter or to exit from this mode press and release the EDID button.
There are three submenus in this mode, use the RIGHT, LEFT and ENTER buttons
to reach them.

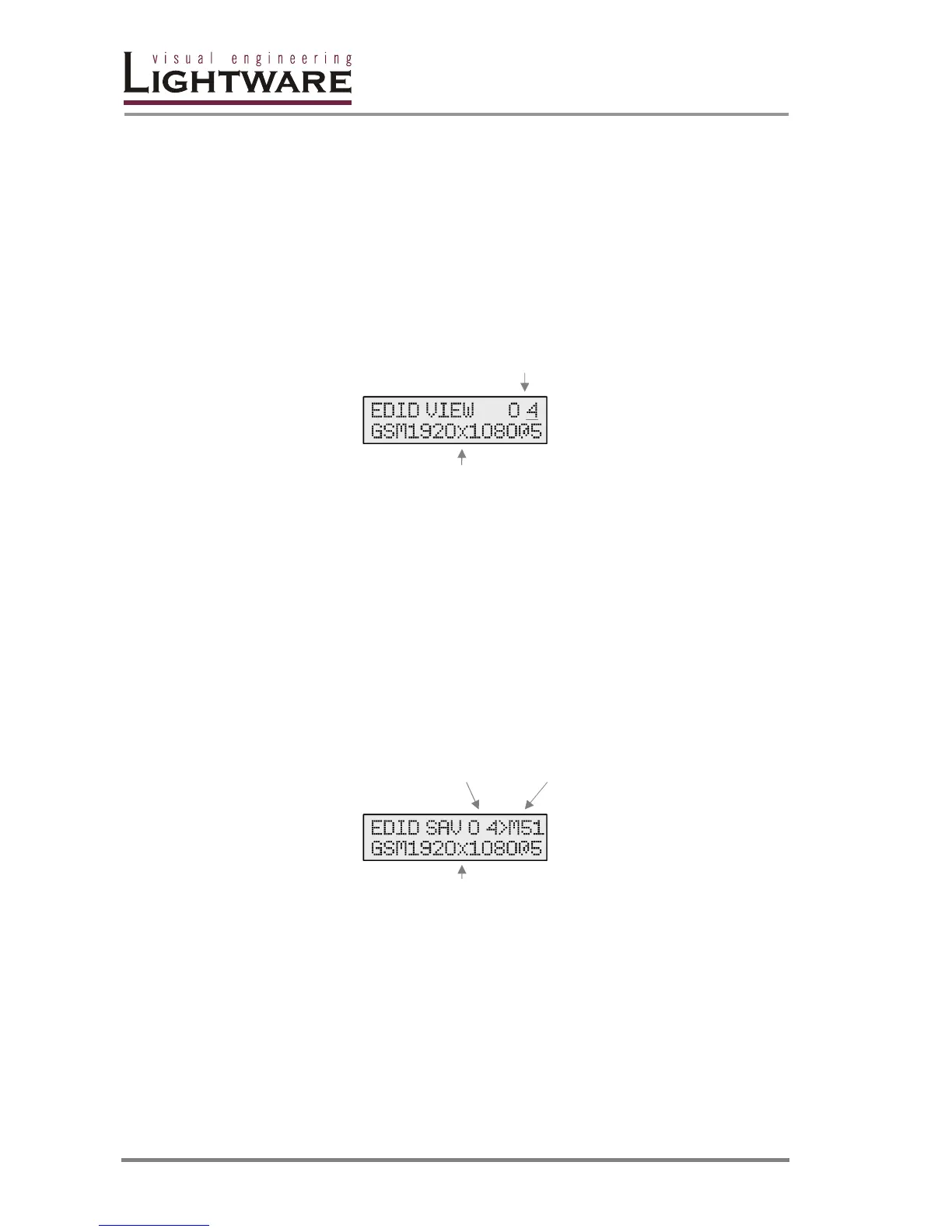

EDID view
EDID memory location
EDID short name
You can select an EDID with the UP and DOWN buttons and view it’s short name.
The short name contains the three-character long manufacturer code (so called
PNPID), the resolution and frame rate of the preferred timing, detailed timing and
the model name descriptor string. The following EDIDs can be selected:
O1 - O32 The EDID of the currently attached or the last attached
sink device.
I1 - I32 The emulated EDIDs of the input ports.
M1 - M50 The stored Lightware EDIDs.
M51 - M100 50 user programmable memory slots.
EDID save
Source Destination
EDID short name
Lightware matrices have 50 user programmable EDID memory slots. You can learn
and save an EDID from any output to one of the M51-M100 memory slots. You
have to select the desired output and the desired destination, then press ENTER.
The EDIDs are stored in the non-volatile emergency memory. By default all user
programmable memory slots are empty.
Press the EDID button to exit.
