5.2.2. Input and output states
Each input and output label has a colored background according to its state, so the
user can see the main information with a quick look at them.

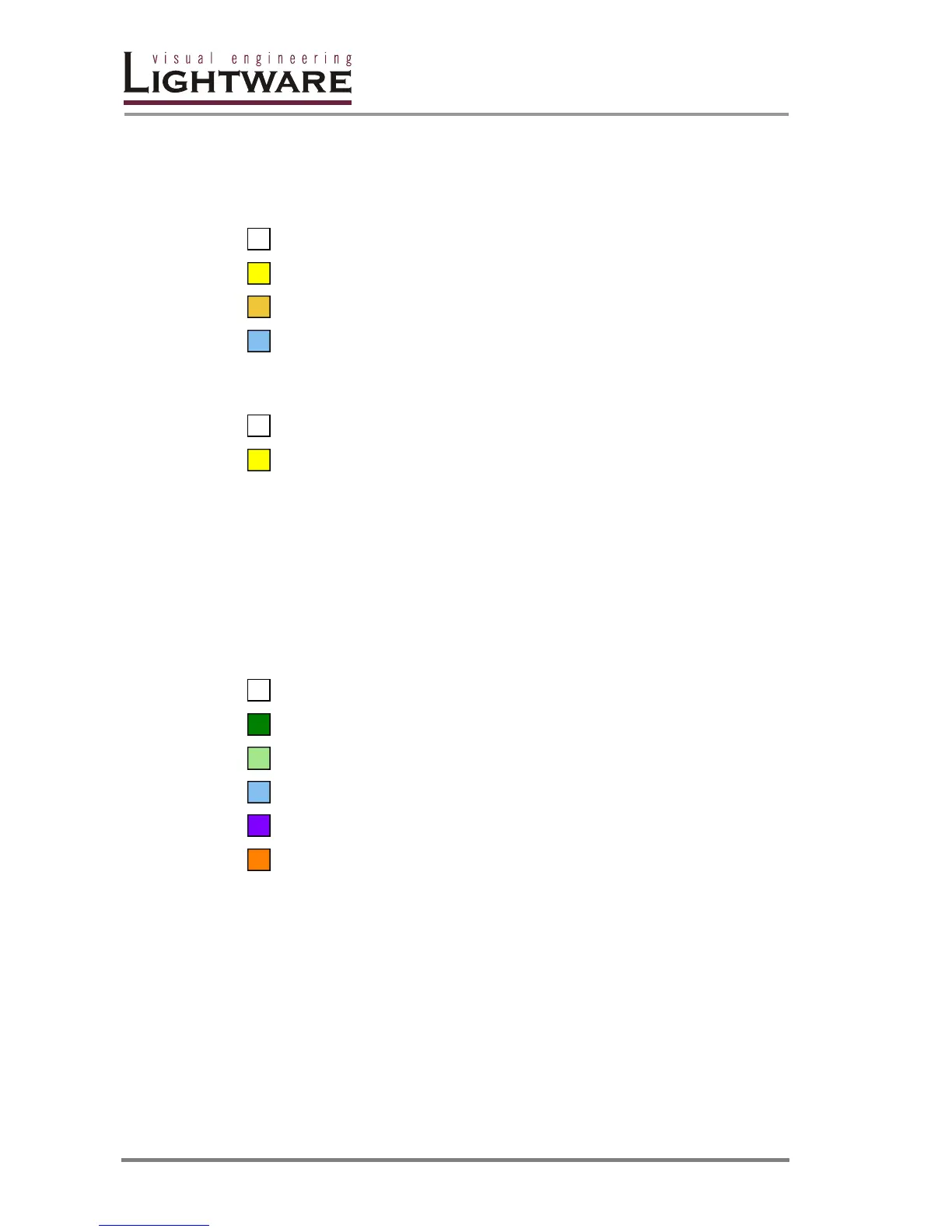

Legend for input labels:
No source is connected. The power +5V is not present.
Source is connected, but there is no active video signal.
DVI signal is present on the link.
HDMI signal is present on the link.
Legend for output labels:
There is no device connected or the connected device is turned off.
Hotplug is present, a sink is connected.
Staying with the cursor above a label shows a hint about these states.
5.2.3. Card types
With Lightware Hybrid Technology the matrix frames can be equipped with
different types of cards. The colored bars near the crosspoint area display the type
of the card in each slot. Whether it is an optical, a twisted pair or other kind of card,
a different color represents it’s type.
Legend for card types:
Unknown card or empty slot.
MX-DVID card
MX-DVI-TP card
MX-HDMI or MX-DVI-HDCP card
MX-DVI-DL card
MX-OPT-DVI card
