MX32x32DVI-HDCP-Pro and HDMI-Pro
User’s Manual v1.0
Page 9/ 109

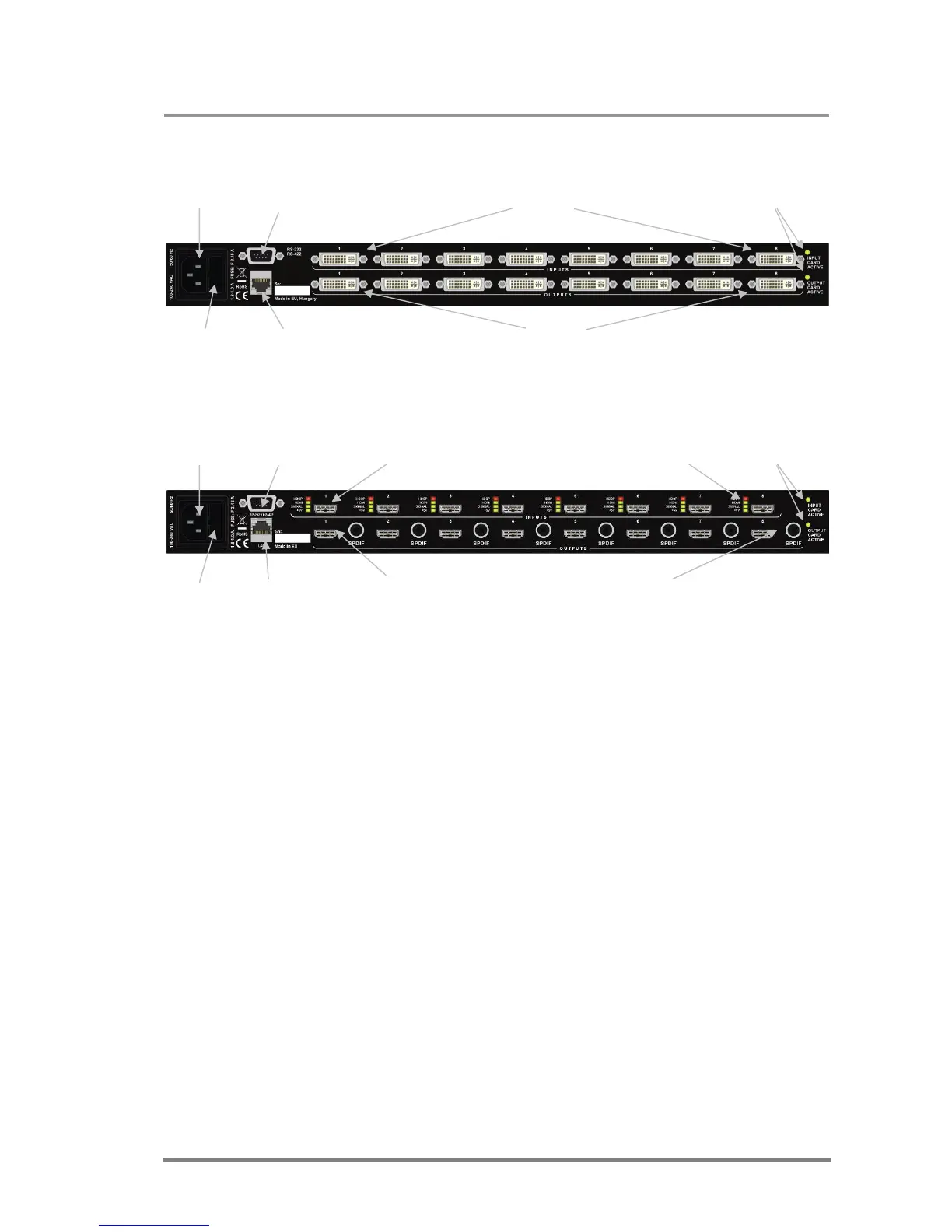

2.1.2. Rear view (MX8x8DVI-HDCP-Pro)
AC Power RS-232 DVI-D Inputs Card activity
connector port 1-8 LEDs
Fuse Ethernet port DVI-D Outputs
1-8
2.1.3. Rear view (MX8x8HDMI-HDCP-Pro)
AC Power RS-232 Card activity
connector port HDMI Inputs Input status LEDs LEDs
Fuse Ethernet HDMI Outputs S/PDIF Outputs
port
AC Power Standard IEC power connector. The router works with
100 to 240 Volts, 50 or 60 Hz power sources.
AC Fuse Replace with F 3.15A type only.
RS-232/422 connector 9-pole D-sub female connector. Can be ordered with RS-
232 or RS-422 control.
Ethernet port Standard RJ45 connector. This port can be connected to
Local Area Network.
DVI-D inputs Standard 29-pole DVI connectors for input connections. It
accepts only digital signals.
DVI-D outputs Standard 29-pole DVI connectors for outputs.
HDMI inputs 19-pole type A HDMI connectors for input connections.
HDMI outputs 19-pole type A HDMI connectors for output connections.
S/PDIF outputs RCA jack connector with S/PDIF digital audio signal.
Embedded audio is still present on HDMI outputs.
Input status LEDs Four LEDs help the signal monitoring on each HDMI
input port. They indicate the presence of power +5V, the
presence of an active video signal, HDMI mode and the
HDCP encryption status.
Card activity LEDs These LEDs are blinking when the cards are active.
