Example: → {:TIMINGS8}
←(:TIMINGS8=087004e2064004b031010100c00165) CrLf

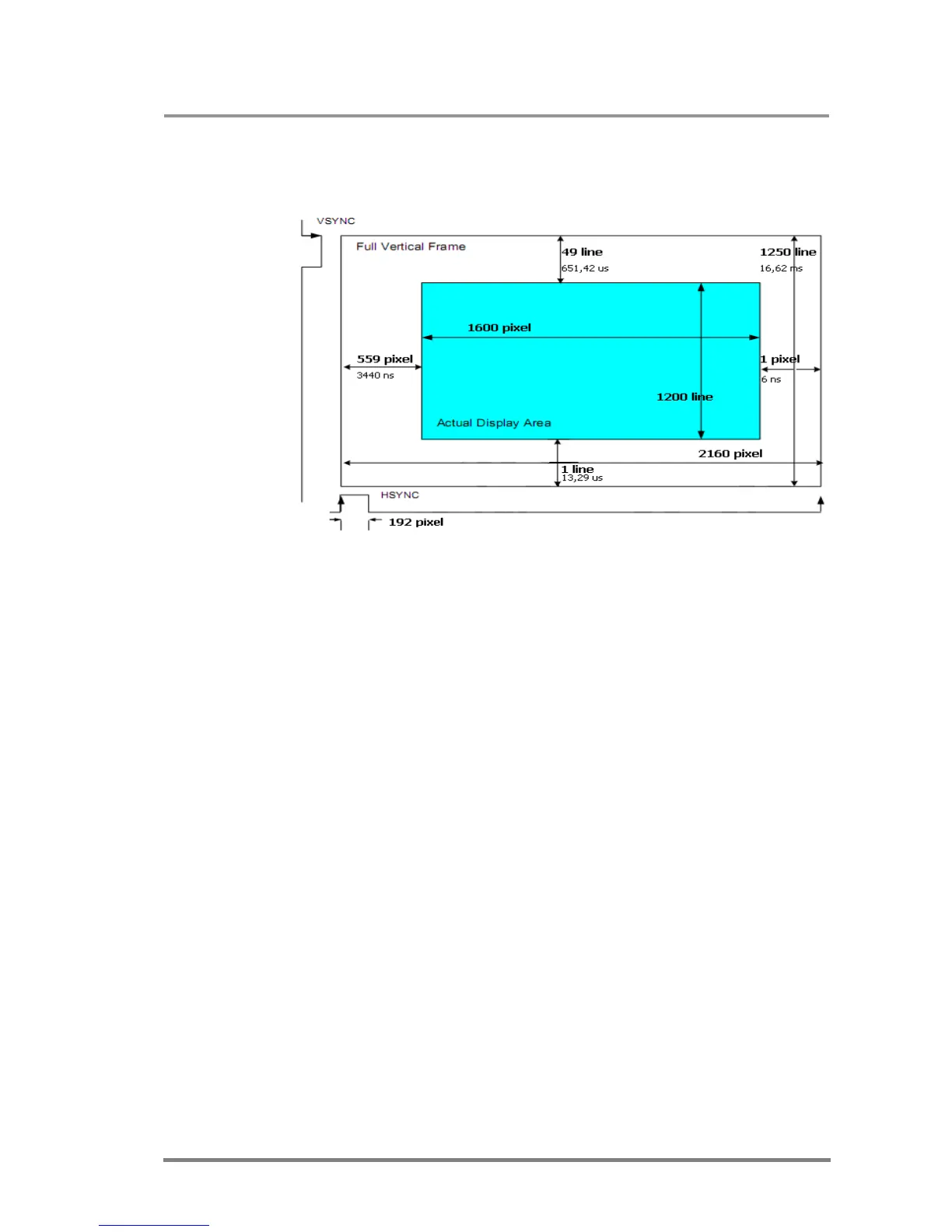

The explanation of this answer:
The pixel clock is 162,4 Mhz.
Note: Pixel clock is not equal to TMDS clock in deep color modes. To calculate the
TMDS clock you have to determine the number of bits per pixel (bpp) by running
an HDMIIGET command. The TMDS clock is equal to pixel clock multiplied by
bpp/24
If you want to evaluate the data rate or the needed bandwidth, you have to
calculate with TMDS clock.
