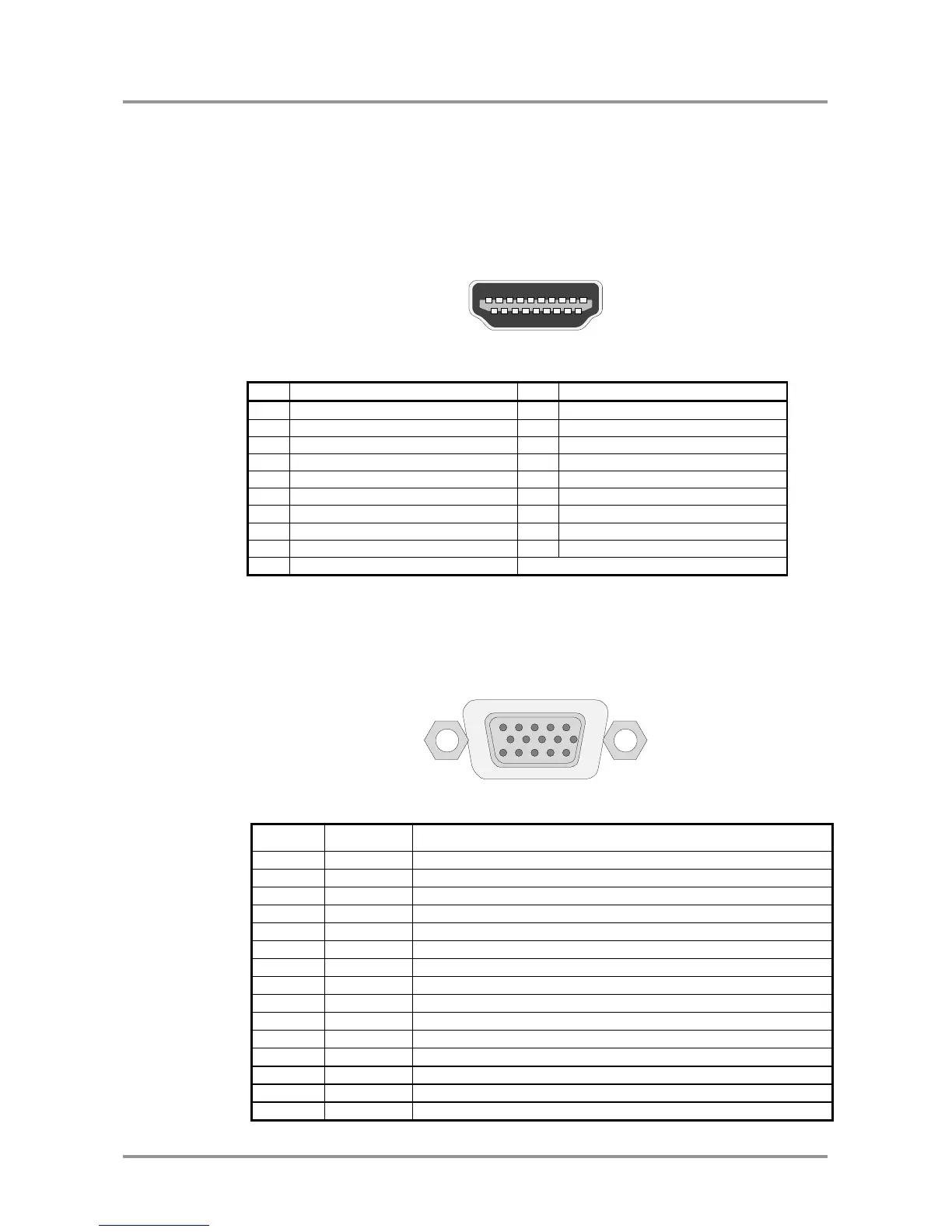

1. Electrical connections
1.1. HDMI Input
UMX-TP-TX100R provides standard 19 pole HDMI connector for inputs. Always use high
quality HDMI cable for connecting sources and displays.
HDMI Type A receptacle
Pin
Signal
Pin
Signal
1
TMDS Data2+
11
TMDS Clock Shield
2
TMDS Data2 Shield
12
TMDS Clock
3
TMDS Data2
13
CEC
4
TMDS Data1+
14
Reserved
5
TMDS Data1 Shield
15
SCL
6
TMDS Data1
16
SDA
7
TMDS Data0+
17
DDC/CEC/HEC Ground
8
TMDS Data0 Shield
18
+5 V Power (max 50 mA)
9
TMDS Data0
19
Hot Plug Detect
10
TMDS Clock+
Table 1-1. HDMI connector pin assignments
1.2. VGA Input
UMX-TP-TX100R provides standard 15 pole D-SUB female connector for VGA inputs.
Always use high quality VGA cable for connecting sources and displays.
Figure 1-1. D-SUB 15 pole female connector (DE15F)
Pin nr.
Description
1
Red Video (75 ohm, 0.7 V p-p)
2
Green Video (75 ohm, 0.7 V p-p)
3
Blue Video (75 ohm, 0.7 V p-p)
4
Monitor ID Bit (Not used, internally connected to Pin 5)
5
Ground
6
Red Ground (Internally connected to Pin 5)
7
Green Ground (Internally connected to Pin 5)
8
Blue Ground (Internally connected to Pin 5)
9
Optional +5V output from graphics card
10
Sync Ground (Internally connected to Pin 5)
11
Monitor ID Bit 0 (Not used, internally connected to Pin 5)
12
I
2
C bidirectional data line
13
Horizontal Sync
14
Vertical Sync which works also as data clock
15
I
2
C data clock in DDC2
Table 1-2. D-sub connector pin assignment for standard VGA
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
1
5
11
10
6
15
