Linak LA12

LA12| 11
Actuator with absolute positioning - Mechanical potentiometer feedback

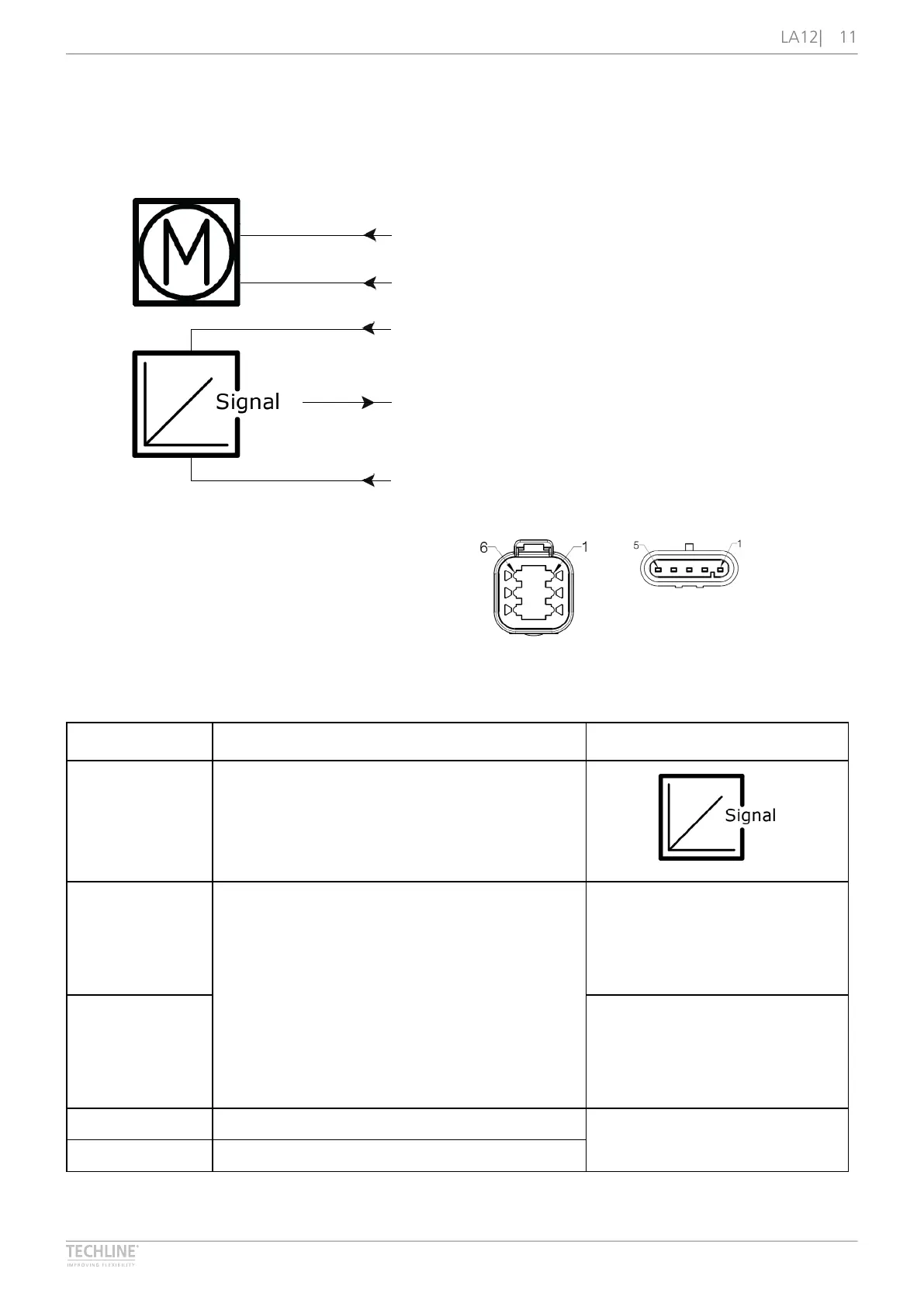

Connection diagram
Fig� 5: 12xPxx-xxxxxxx0
5
2019 © LINAK A/S
Absolute positioning - Mechanical potentiometer feedback
12XPXX-XXXXXXX0
RED
BLUE
YELLOW
GREEN
BLACK
+
-
Please be aware that if the power supply is not properly connected, you might damage the actuator!
2 2
1 1
5
3
4
5
3
4
DEUTSCH AMP
I/O specifications
Input/Output Specification Comments
Description The actuator can be equipped with a mechanical
potentiometer that gives an analogue feedback
signal when the actuator moves�
Red 12 or 24 V DC (+/-)
12 V ± 20 %
24 V ± 10 %
Under normal conditions:
12 V, max� 5 A (depending on load)
24 V, max� 2�5 A (depending on load)
To extend actuator:
Connect Red to positive
To retract actuator:
Connect Red to negative
Blue To extend actuator:
Connect Blue to negative
To retract actuator:
Connect Blue to positive
Green Signal power supply (+) 12-24 V DC +10 V or other value
Black Signal power supply GND (-)
