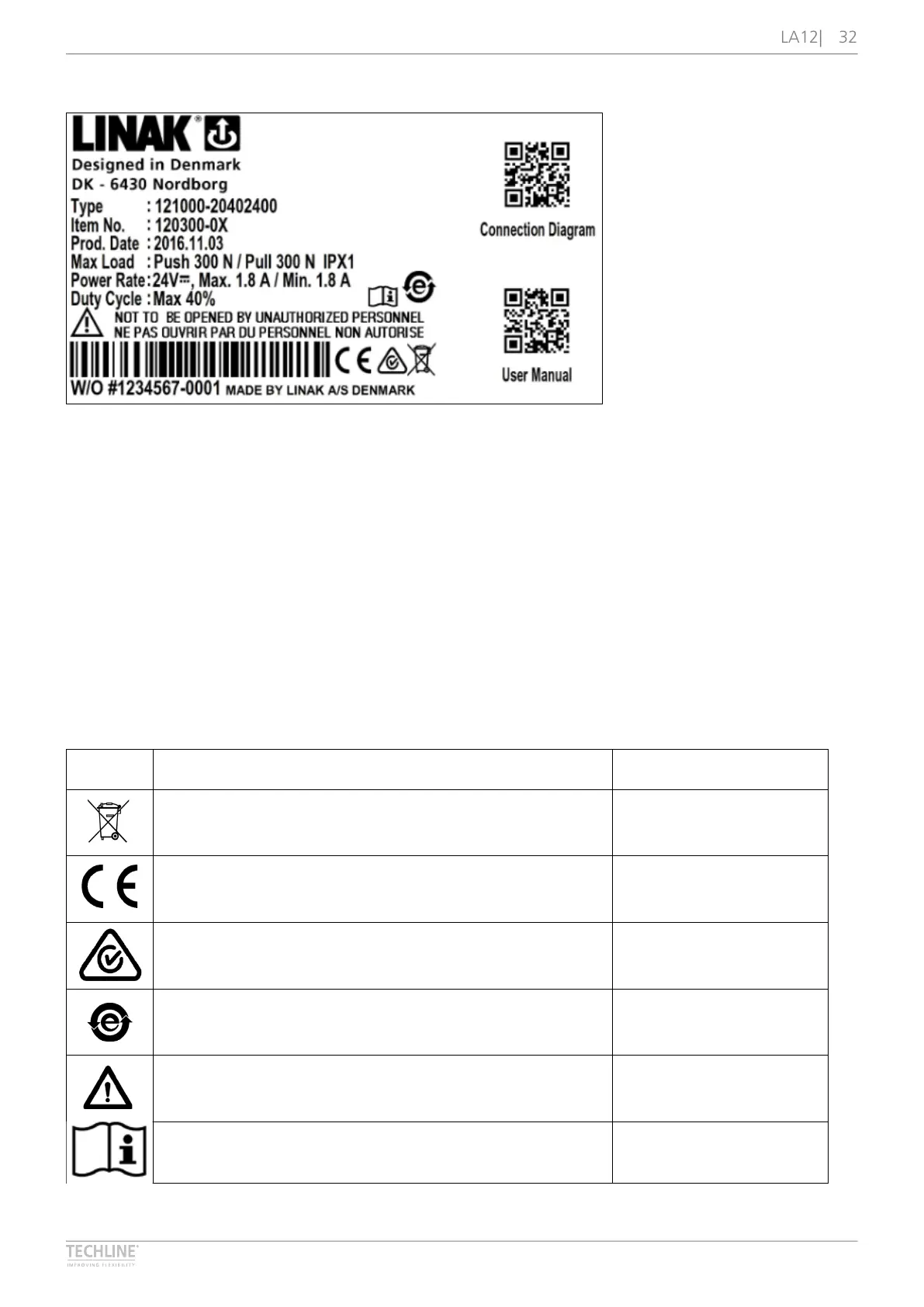

Label for LA12
1. Type.: 121000-20402400
Describes the basic functionality of the
product.
2. Item no.: 120300-0X
Sales and ordering code.
3. Prod. Date.: YYYY.MM.DD
Production date describes when the product
has been produced. This date is the reference
for warranty claims.
4. Max Load.: Push 300N / Pull 300N IPX1
Describes the maximum load that the prod-
uct can be exposed to in compression and
tension. This line also contains a reference to
the product’s IP protection degree.
Key to symbols
The following symbols are used on the LA12 label:
Symbol Norms Approvals
WEEE Directive 2002/96/EC Wheelie bin
Compliance to all relevant EC directives CE
Regulatory Compliance Mark:
The Australian safety/EMC regulations
RCM
China Pollution control mark (also indicates recyclability) China RoHS legislation
ISO 7000- 0434A: Caution
Operating instructions
5. Power Rate.: 24 VDC / Max. 2.5 Amp
Input voltage for the product and maximum current consumption.
6. Duty Cycle.: Max 40 %
The duty cycle defines the maximum period during operation without interruption.
After operation, a pause must be observed. It is important that the operator follows
the instructions of the duty cycle; otherwise, a possible overload may result in
reduced product life/errors.
7. W/O #1234567-0001
The LINAK work order followed by a unique sequential identification number.
