Linksys RE7000 User Manual

10

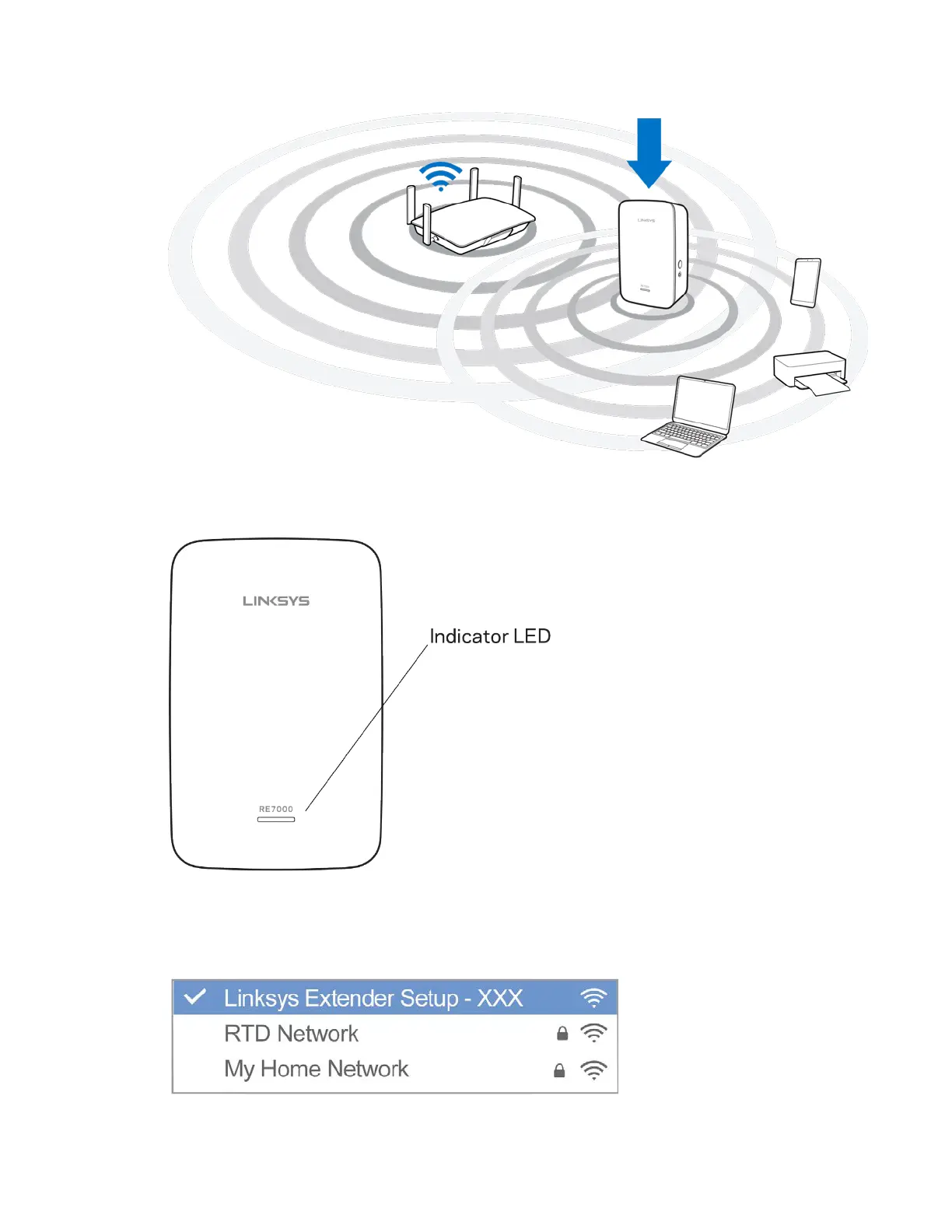

2. Wait for the indicator LED on the front of your range extender to blink amber.
This can take up to a minute
3. Connect to range extender setu p network.
On a computer, phone or tablet, connect to the Wi -Fi network: Linksys Extender Setup -
XXX. ( XXX are the last three digits of your range extender’s MAC address.)

Linksys RE7000 Specifications

General

Type	Network repeater
Ethernet LAN	Yes
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Maximum transfer distance	900 m
Ethernet LAN interface type	Gigabit Ethernet
Wi-Fi standards	802.11a, Wi-Fi 5 (802.11ac), 802.11b, 802.11g, Wi-Fi 4 (802.11n)
Cabling technology	10/100/1000Base-T(X)
Networking standards	IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Wi-Fi data rate (max)	1900 Mbit/s
Ethernet LAN (RJ-45) ports	1

Weight and Dimensions

Depth	81 mm
Width	126 mm
Height	46 mm
Weight	255 g
