10
Ground Control® 3.0
Aftermarket Manual
lci1.com (574) 537-8900 Rev: 04.19.18
CCD-0001307

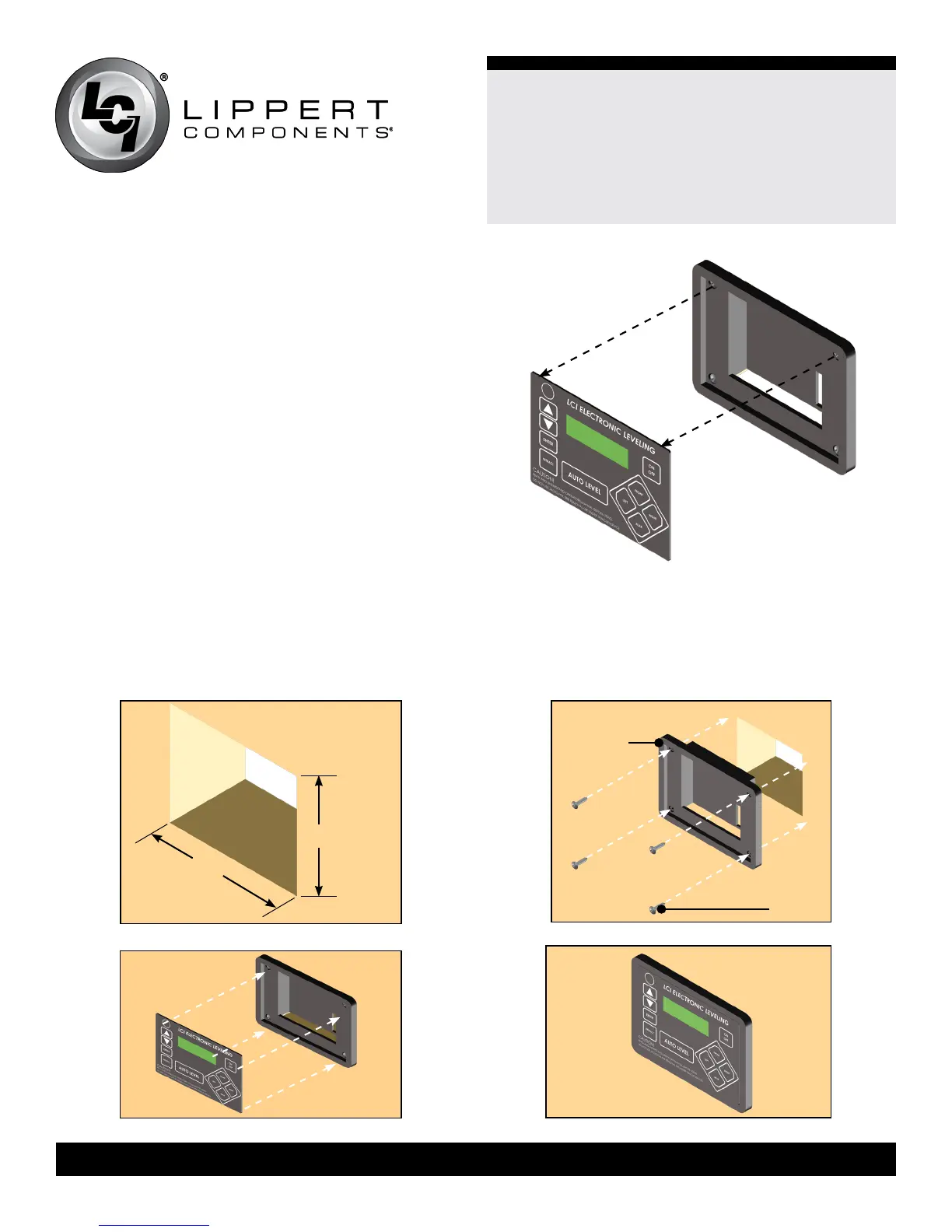

Installation - Touch Pad
1. Determine where to mount the touch pad. The touch pad
should be mounted in a compartment on the side of the trailer
so the operator will have a view of the hitch pin while using the
touch pad.
2. Remove the face plate of the touch pad from the mounting
bezel (Fig. 17).
3. Cut a hole in the wall of the compartment 3 3/8” wide by 2 3/4”
high so the top and bottom horizontal cuts are parallel to the
oor of the compartment (Fig. 18).
4. Feed the touch pad harness through this hole and run it to
the compartment where the controller is mounted. Plug the
harness into the appropriate connector on the controller.
5. Insert the touch pad bezel into the cutout and attach it with
four #8x1” wood screws with sufcient length to thread into the
compartment wall (Fig. 19).
6. Plug the touch pad harness into the connector on the back of
the touch pad face plate and snap the face plate into the bezel
(Fig. 20 and Fig. 21).
Fig.17
Fig.18
Fig.19
Compartment Wall
3 3/8”
2 3/4”
Touch Pad
Bezel
#8 x 1”
Wood
Screw
Fig.20
Fig.21
To Next Page
