Ground Control® 3.0
Aftermarket Manual
lci1.com (574) 537-8900 Rev: 04.19.18
CCD-0001307

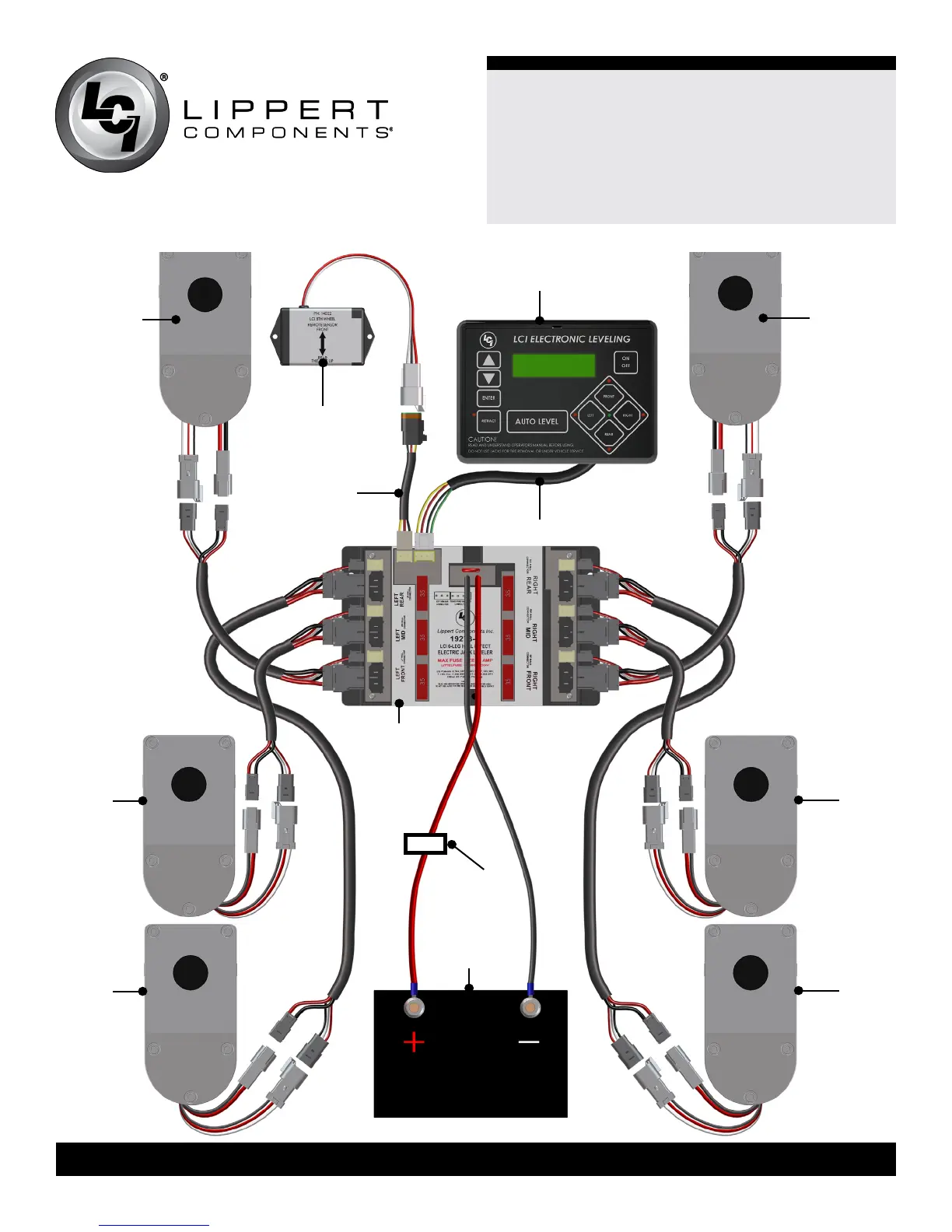

Wiring Diagram - 6 Point
Hall
Effect
Jack
Hall
Effect
Jack
Battery
6 Point
Controller
Touch Pad Harness
LCD Touch Pad
Rear Sensor
Rear Sensor
Harness
Hall Effect
Landing
Gear
Hall Effect
Landing
Gear
Hall
Effect
Jack
Hall
Effect
Jack
Recommended
50 Amp
Breaker (not
included)
