34

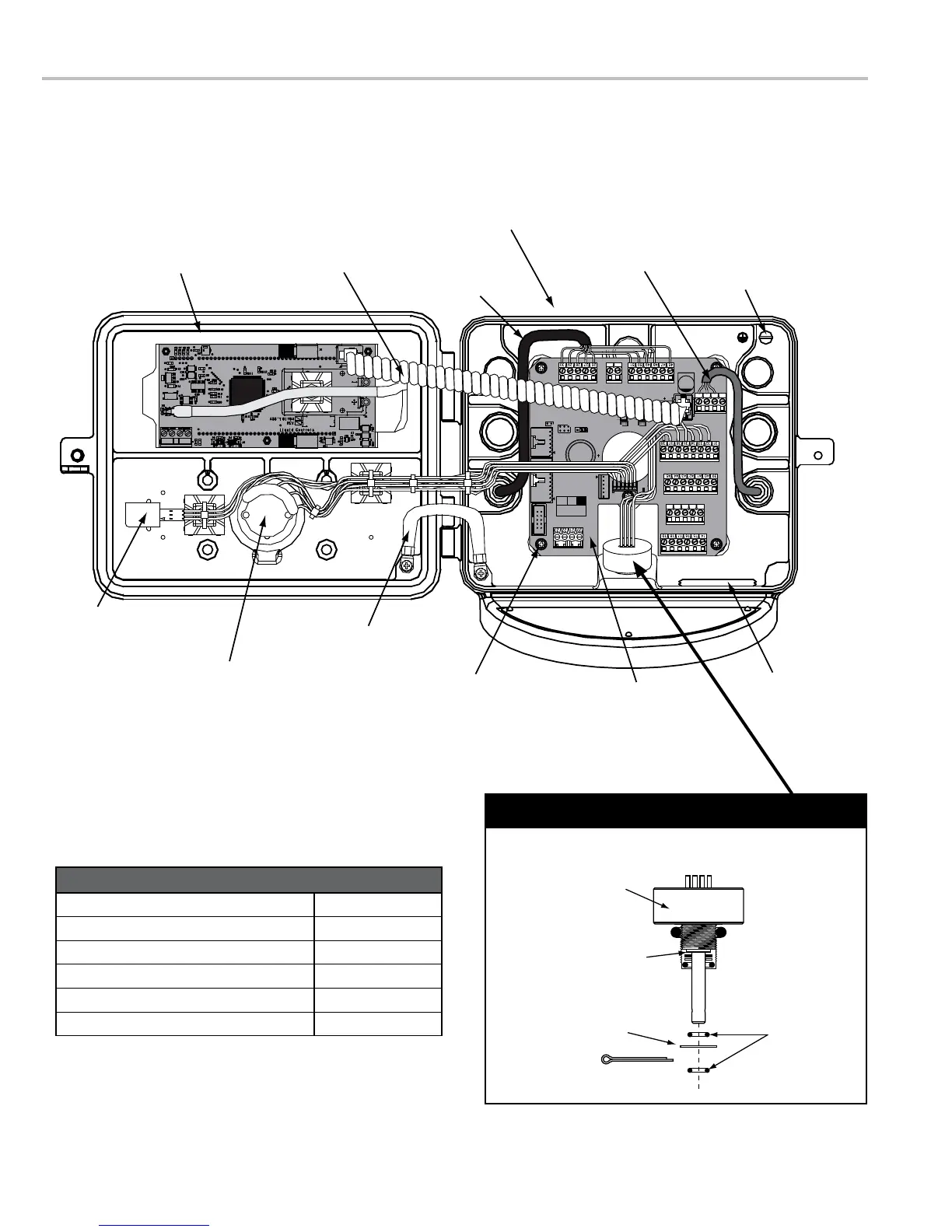

BILL OF MATERIALS - INTERNAL COMPONENTS
PRINTER SERIAL 485 TERMINAL
POWER
COUNTER
MH1
CTS RXD TXD RTS GNDGND 485+A485-B CTS RXD TXD RTS +VP
EARTH
AUX OUTPUTS
PULSE INPUTS
AUX I/O
GND
GND
GND
IN 1
OUT1
OUT2
OUT3
TEMPERATURE PROBE
ASSY
84040
REV.
RTD+S
RTD-D1
RTE-S
RTD+D
OUT4
OUT5
IN 2
IN 3
IN 4
+5V OUT
+VP
+VP
PGND
OUT6
+VP
SOL
+VPPGNDOUT7
+VF
+VFIN5 OUT8GND
GND
+12-24V
ACC
MH4
C1
J20
J6
J3J2J1
J7
J12
J15
P1
TP1
J5
J14
J18
J19
J10
J17
J11
J7
C2
MH5
MH3
MH2
A
B
1110 12 13
52 53 54 55 56
24
25
81833
Hollow O-ring Seal
81330
Coiled Cable Handset
81513040
Data Cable
81841 (81840)
Enclosure Base Assy w/ Pulser
(w/o Pulser)
71319
Desiccant
84040
CPU Board Assy
08158
Screw #6-32 x½" (4)
81512
Power Cable
07677
Ground Screw #8-32 x ¼"
81836
Ground Strap w/
Screws and Washers
81832
Rotary Switch & Harness Assy
81833
Hollow O-ring Seal
Pulser Field Install Kit—82597
09380
Nylon Washer (2)
81994
PULSER, 100 PPR
Pulser Field Install Kit
82597
08189
Flat Washer
08201
O-ring (2)
Optional Items (not shown)
Description Part Number
Printer Extension Cable 71237
81885
Lap Pad Adapter 81514
Lap Pad E40301
Lap Pad with Adapter E403012
