8
M7 Meter with LectroCount LCR-II Electronic Register, Optical
Optical Air Eliminator
Mechanical Air
Capacity Strainer
Optical Vapor Eliminator
3
Valve
ETVC Kit
E-7 Valve

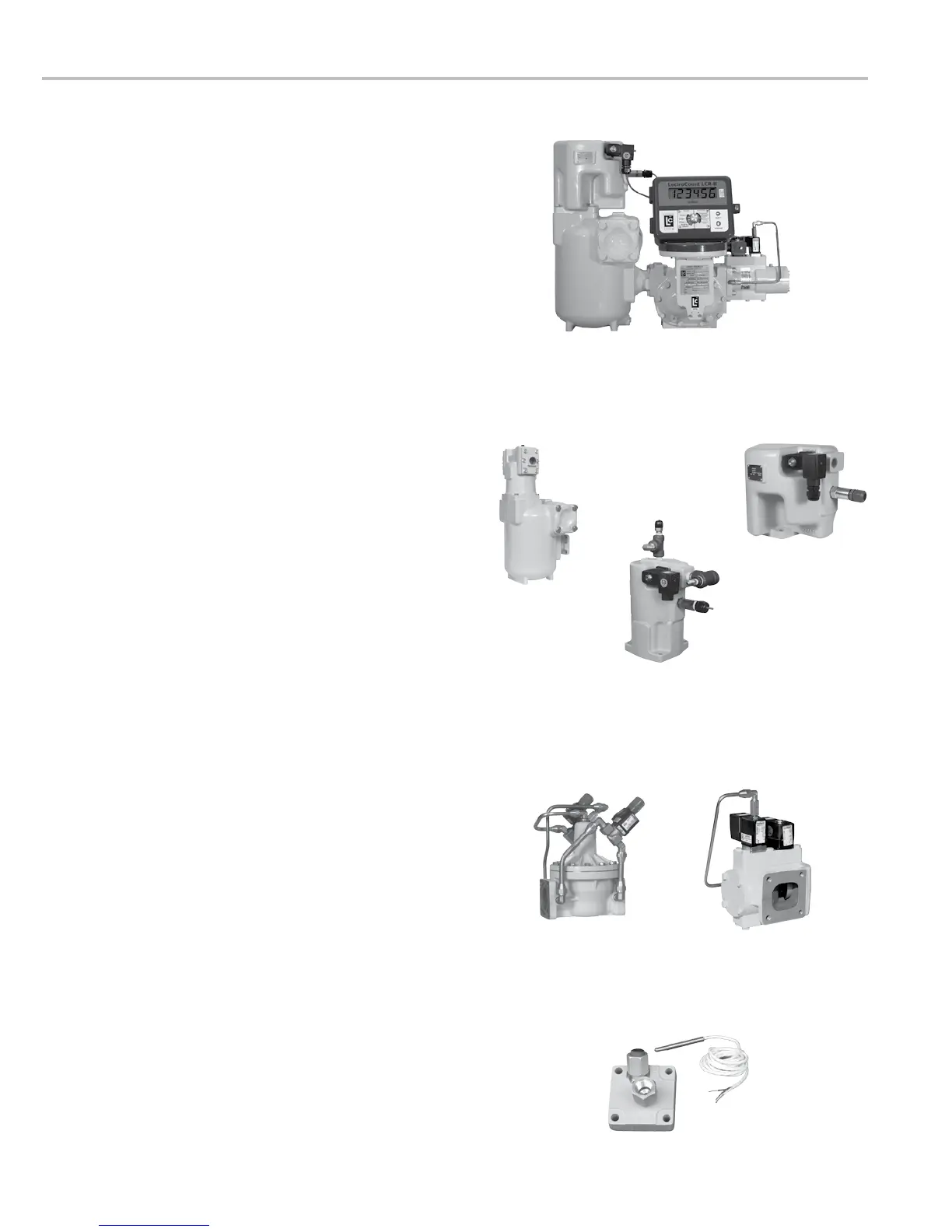

Meter System Components
METER SYSTEM
A Liquid Controls meter system not only accurately
measurement. Optimal systems typically include an air/
vapor eliminator, strainer, meter, register, and control
valve. The LectroCount LCR-II, a register, serves as the
central controller of the meter system. Most components
in the meter system are hard wired to the LCR-II via data
communication cables. See manual M100-10.
AIR/VAPOR ELIMINATORS
Air and vapor eliminators sense and remove air or
vapor in the piping before it enters the metering system,
ensuring that only liquid will pass through the meter for
measurement. Mechanical air eliminators do not require
a data connection to the LectroCount LCR-II (in LPG
applications, they are often plumbed to a 3-way solenoid
which is wired to the LectroCount LCR-II). Optical air
eliminators use an optical sensor to monitor liquid levels
and a solenoid-actuated valve to turn the vapor vent on
and off. The optical sensor and the solenoid valve are
connected to the LectroCount LCR-II by separate data
cables. See manuals M300-20 and M300-21.
VALVES
open the line to initiate custody transfers and close the
line to stop custody transfers. Some valves can partially
shut off and provide accurate preset deliveries. Many
valves use solenoid-operated valves that require a hard
wired data connection to the LectroCount LCR-II. See
manuals M400-11 and M400-40.
ELECTRONIC TEMPERATURE VOLUME
COMPENSATION (ETVC) KIT
In order to perform temperature compensation
equations, the LectroCount LCR-II relies on a
temperature probe inserted into the strainer housing.
this manual.
METER SYSTEM OVERVIEW
