9

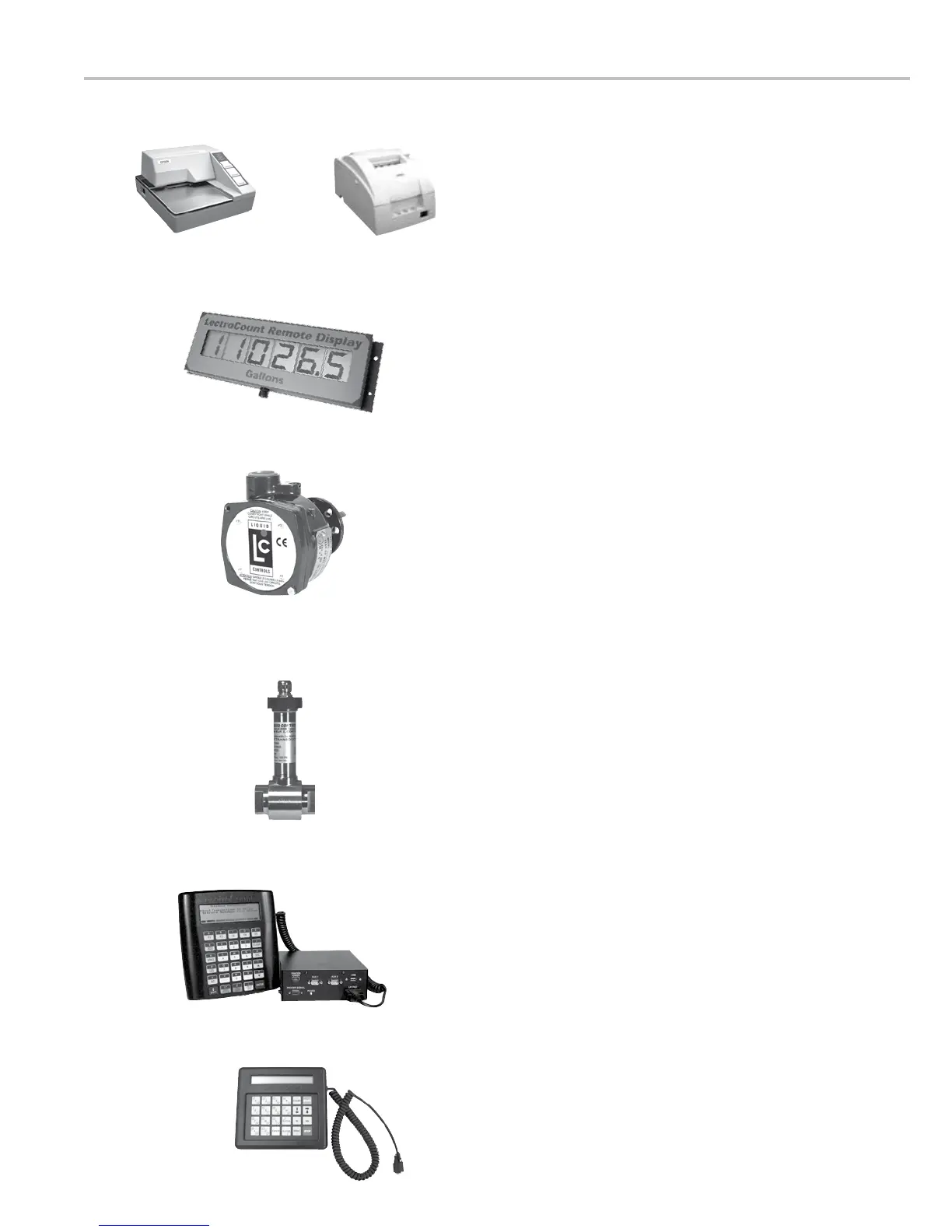

METER SYSTEM OVERVIEW
Epson Slip Printer Epson Roll Printer
Remote Display
POD Pulser
DMS i1000
Lap Pad
Meter System Components
PULSE OUTPUT DEVICE
The Liquid Controls Pulse Output Device (POD pulser)
converts the rotary motion of a positive displacement
used in place of an internal pulser. They are ideal for
applications that require explosion proof components in
which the LectroCount LCR-II register is installed at a
distance from the meter. The POD pulser requires hard
wired data communication with the LectroCount LCR-II.
See manual EM300-11.
The differential pressure transducer, common in
aviation applications, monitors the differential pressure
coalescer. The highest differential pressure reached
during the custody transfer will then be printed on the
shut down a custody transfer if the differential pressure
meets a preprogrammed differential pressure shutdown
communication with the LectroCount LCR-II. See
manual EM300-40.
DATA MANAGEMENT SYSTEMS
The DMS i1000 is an in-cab computer with a heavy duty
software. The DMS i1000 must be hard wired to the
LectroCount LCR-II. See manuals EM200-10 and
EM200-11.
LAP PAD
The lap pad programs and displays all operational
functions of the LectroCount LCR registers. It has a
the lap pad, the printer, and the LCR printer cable.
LECTROCOUNT REMOTE DISPLAY
The 2¼" digits on the Liquid Controls LectroCount
Remote Display allow operators to view the register
wire data communication with the LectroCount LCR-II is
required. See manual EM100-13.
PRINTERS
of custody transfers. The Epson slip printer is considered
the industry standard for many applications. Multi-
for both customers and business records. The Epson roll
printer is ideal for recording multiple custody transfers
over an extended time frame.
