23

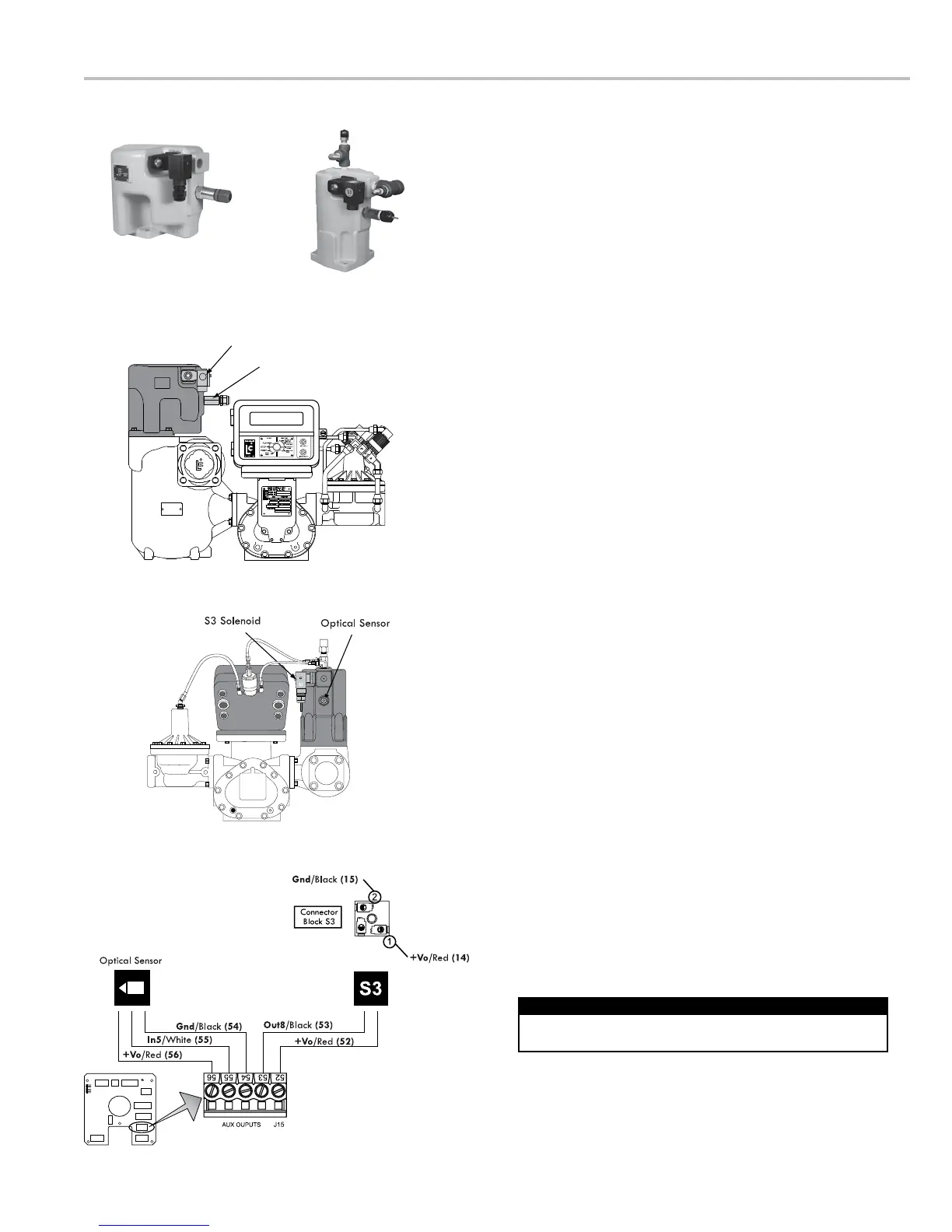

OPTICAL AIR & VAPOR ELIMINATORS
Optical Air Eliminator:
Optical Vapor Eliminator:
3
S3
S3 Solenoid
Optical Sensor
LectroCount LCR-II
Gallons
Meter System with Optical Vapor Eliminator
Meter System with Optical Air Eliminator
Optical Air and Vapor Eliminator
Installations
are bolted onto the strainer and wired to the LCR-II
at the factory. Optical air and vapor eliminators can
also be ordered separately and installed onto meter
air and vapor eliminator. Instructions for wiring optical air
and vapor eliminators to the LCR-II are provided on this
page.
Materials needed for wiring valves:
Not supplied
with the air or vapor eliminator
conduit connectors or cable glands
To wire optical air and vapor eliminators to the
LCR-II:
1. Attach cable glands and/or conduit connectors to the S3
solenoid valve, the optical sensor, and the LCR ports.
weatherproof conduit cut-to-length from the S3 solenoid
to a LCR-II port.
3. Run the weatherproof conduit between the S3 solenoid-
operated valve and the LCR-II housing. Pull the wires
through the ports, and tighten the connectors. Liquid
Controls recommends running the optical sensor wire
through weatherproof conduit as well.
operated valve terminals and to terminals 52 and 53 on
5. Connect the optical sensor wires to terminals 54, 55, and
Disconnect the power before working on the CPU board.
Disconnect Power
To Next Page
