VALVES
VALVES WITH 110VAC SOLENOIDS
In order for the LectroCount LCR-II to control valves with
solenoids on 110 VAC circuits, you must install a relay
Switch: SPST (single pole, single throw)
Switch Position
Contact Rating: Greater than maximum current
of solenoid
Voltage: +12 VDC
Materials needed for wiring valves with 110 VAC
solenoids:
Not supplied with the valve
conduit connectors or cable glands

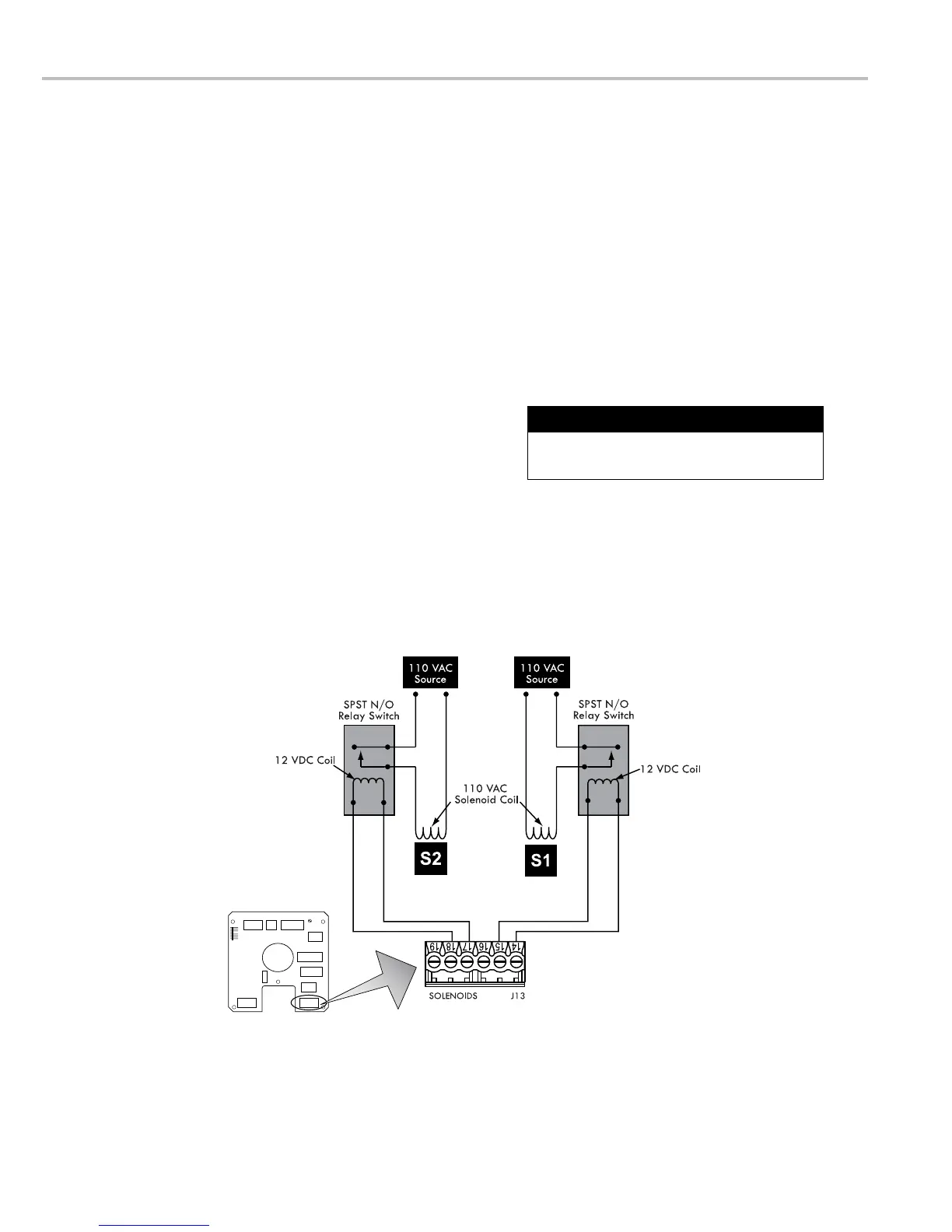

To wire 110 VAC solenoids to the LCR-II:
1. Turn off all 100 VAC circuits before beginning the
installation.
110 solenoid power supply circuit.
3. Connect the relay switch on the S1 power supply circuit
4. Connect the relay switch on the S2 power supply circuit
Turn off all 110VAC circuits before beginning
the installation.
Disconnect Power (110VAC)
To Next Page
