SCP System • Replacing components
44 CP_SEM_60-00-00.002

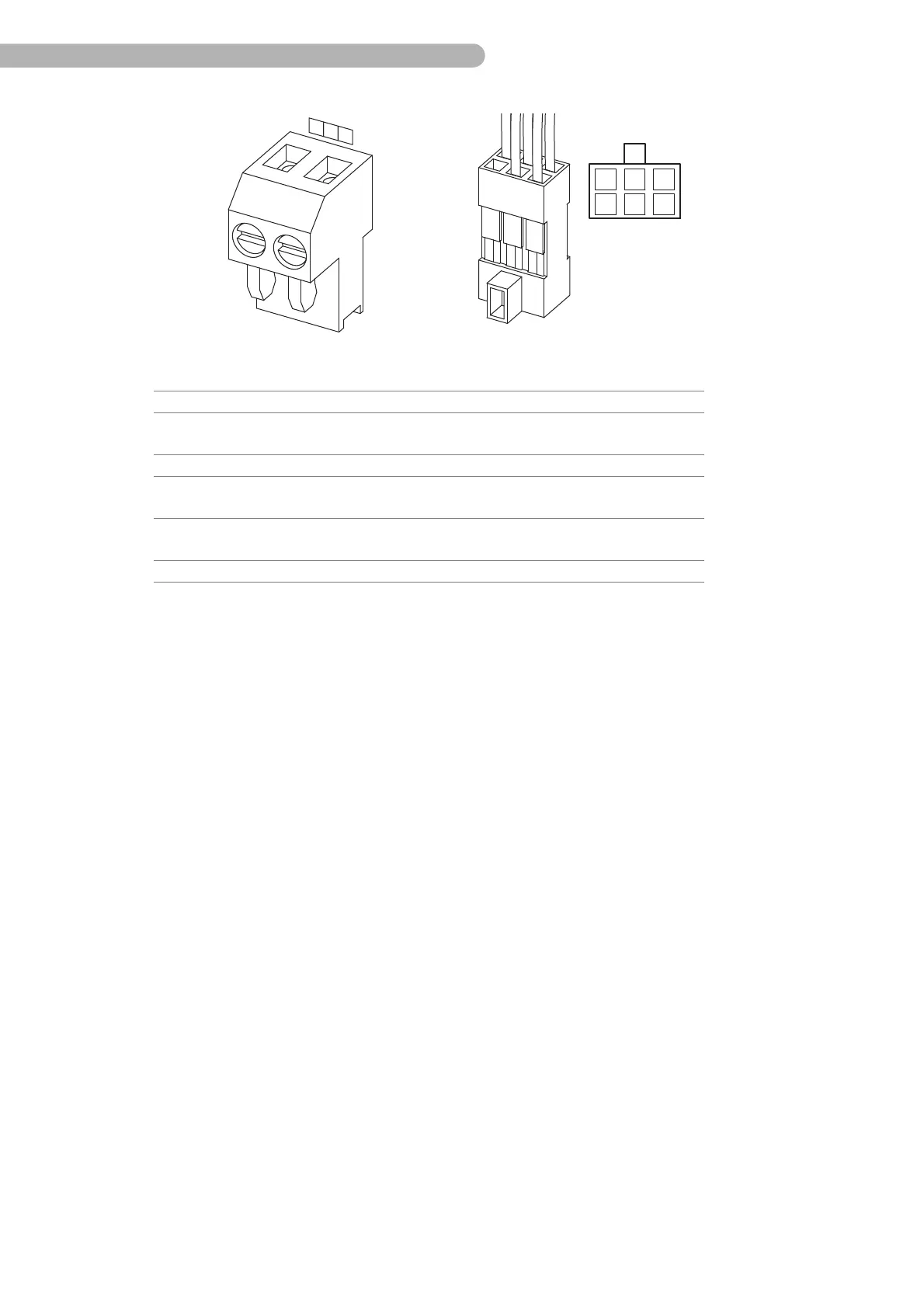

Fig. 30: CON1 and CON2 connection configuration
45
123
1
2
Current supply connection (CON1)
1 White
2 Brown
Current supply
Caution: Do not transpose!
Pump control panel connection (CON2)
1 Yellow
2 Green
from connecting cable (triple wire)
3 Green
4 Yellow
from connecting cable (twin wire)
5 Black (sheath) from connecting cable (triple wire)
